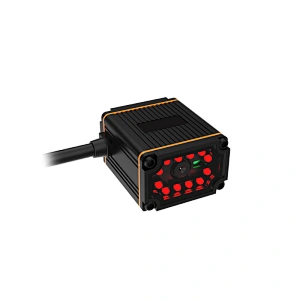

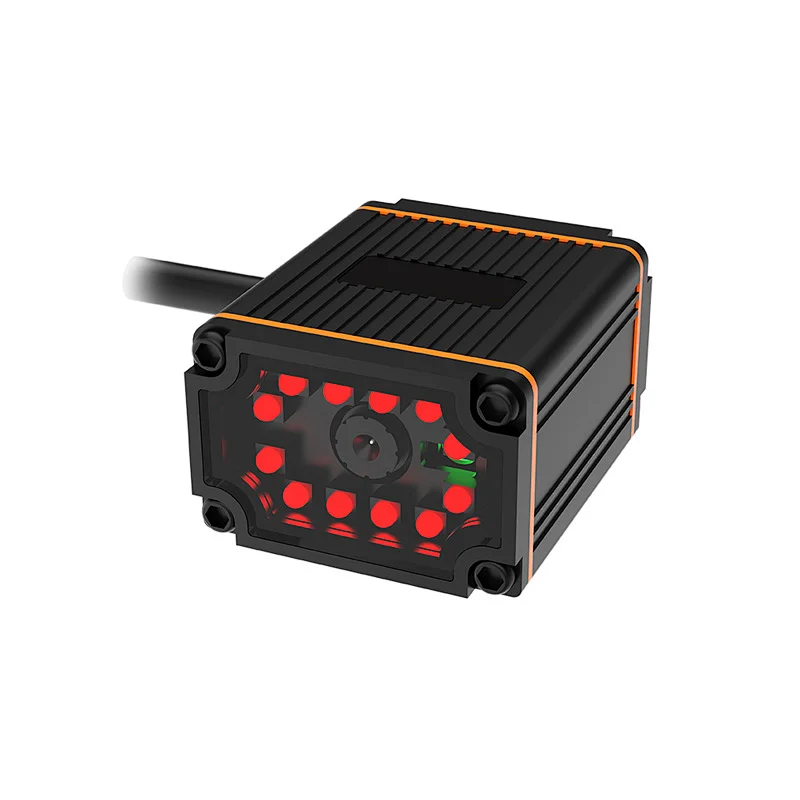

RK65 is a fixed two-dimensional scanning module suitable for general industrial environment use launched by RAKINDA company. Its internal 1280*800 megapixel C-MOS sensor has excellent scanning recognition. The high-brightness LED and high-quality photosensitive module carried by the RK65 internal decoding engine have a theoretical design life of up to 100,000 hours, which greatly improves the life of the whole machine.The overall design of RK65 is fully in line with fixed applications in the industrial field. The operator can complete the installation and commissioning of the equipment without any training, and enable the equipment to quickly produce work performance. The high-brightness LED and high-quality photosensitive module carried by the RK65 internal decoding engine have a theoretical design life of up to 100,000 hours, which greatly improves the life of the whole machine.
Features of Fixed Mount Barcode Scanner*Industrial Scanning Performance
*Smart Illumination System

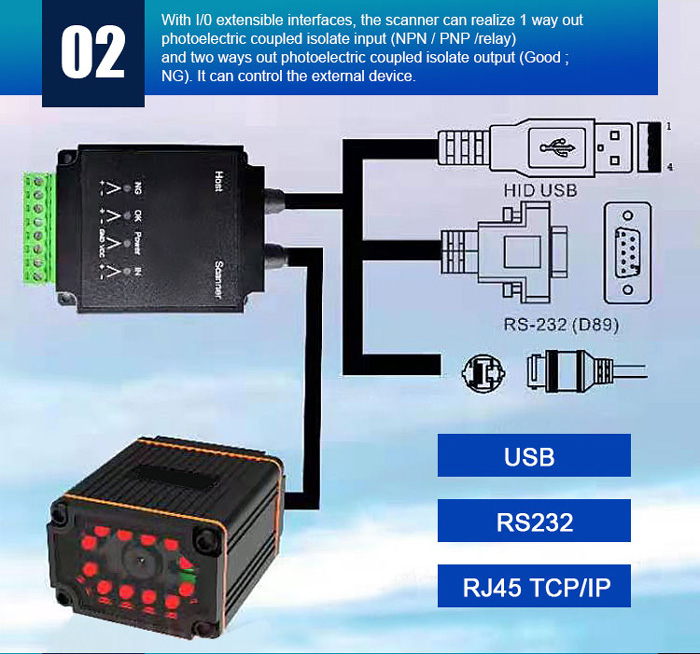

*Flexible I/O Extensible Interfaces

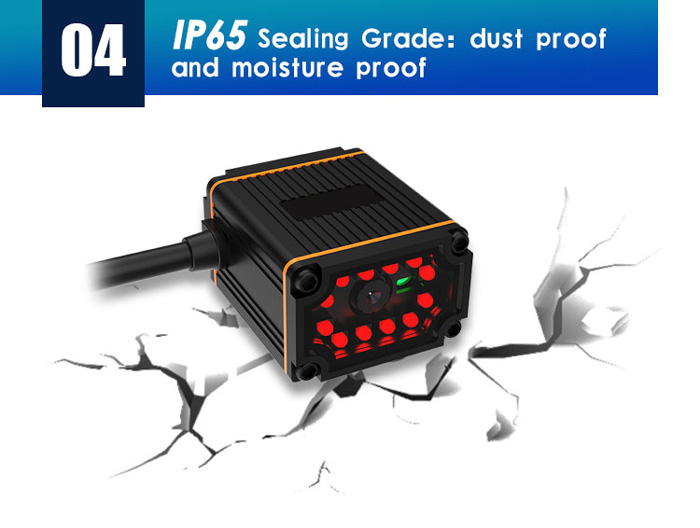

*IP65 Grade
* USB/RS-232 multiplei nterface
Industrial QR Code Reader Parameters
Scan Performance | Resolution | 1280 * 800 |
Field of view | Horizontal 46° (H),Vertical 29° (V) |
Illumination | High brightness red light/High brightness white light |
Aiming | Green LED aiming |
Scan Mode | Auto sense; external pulse mode; continuous mode; serial command mode |
Symbologie s | 1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C |
2D | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode |
Typical depthof field | Versio n | RK65-SR | RK65-HD |
DOF | Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm QR (10 mil) : 35 mm ~ 130 mm | Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm |
Resol ution | 1D : ≥4 mil ; 2D : ≥9 mil | 1D : ≥3 mil ; 2D : ≥7 mil |
Print Contrast | ≥20% (UPC/EAN 100% , PCS 90%) |
Mechanical / Electrical Parameters | Dimensions (mm) | 36(W)×43(D)×24(H) |
Enclosure | Aluminum alloy |
Sealing | IP65 |
Indicator | Buzzer, LED |
Interface | RS232,USB (HID ; CDC),Ethernet(TCP/UDP/Modbus) |
Power | 5-36 VDC |
Input | 1 way out photoelectric coupled isolate input (NPN / PNP /relay) |
Output | two ways out photoelectric coupled isolate output (Good ; NG) |
Current@5 VDC | Working current 300 mA ±5%(typical), 450 mA ±5%(Max) Standby current 100 mA ±5% |
Environmenta l | Storage | -40℃~+70℃ |
Working | -20℃~+50℃ |
ESD | ±20 kV(air discharge),±8 kV(direct discharge) |
Certification | CE EN55022 , FCC Part 15 Class B , CE EMC Class B |
