Product Features
*UIMG Core Technology

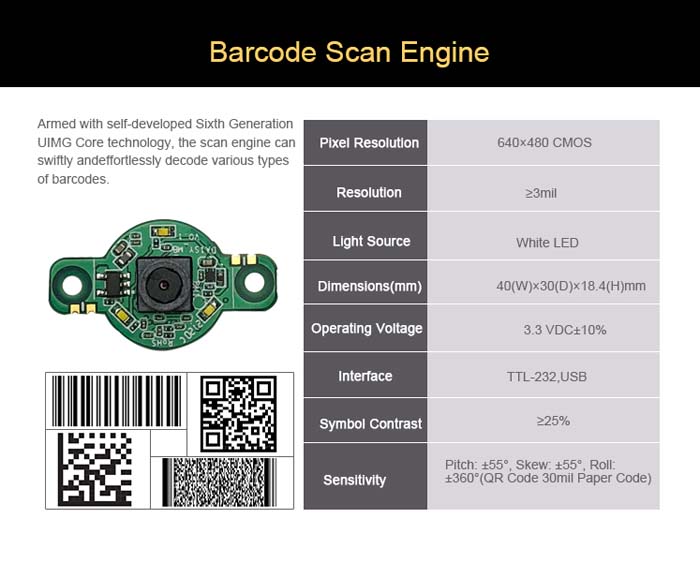

Armed with self-developed Sixth Generation UIMG Core technology, the scan engine can swiftly and effortlessly decode various types of barcodes.
*Outstanding Power Efficiency
The advanced NLDC core technology greatly helps reduce the power consumption and prolong its service life.

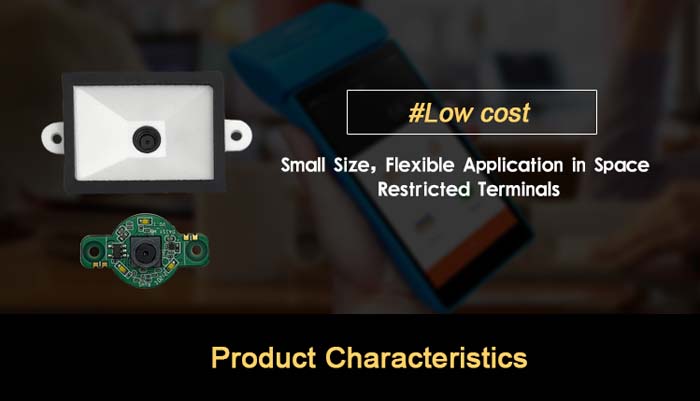

*Compact & Lightweight Design

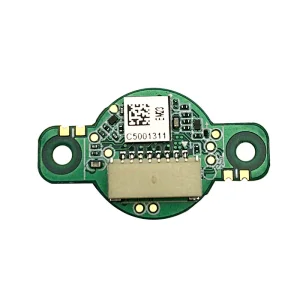

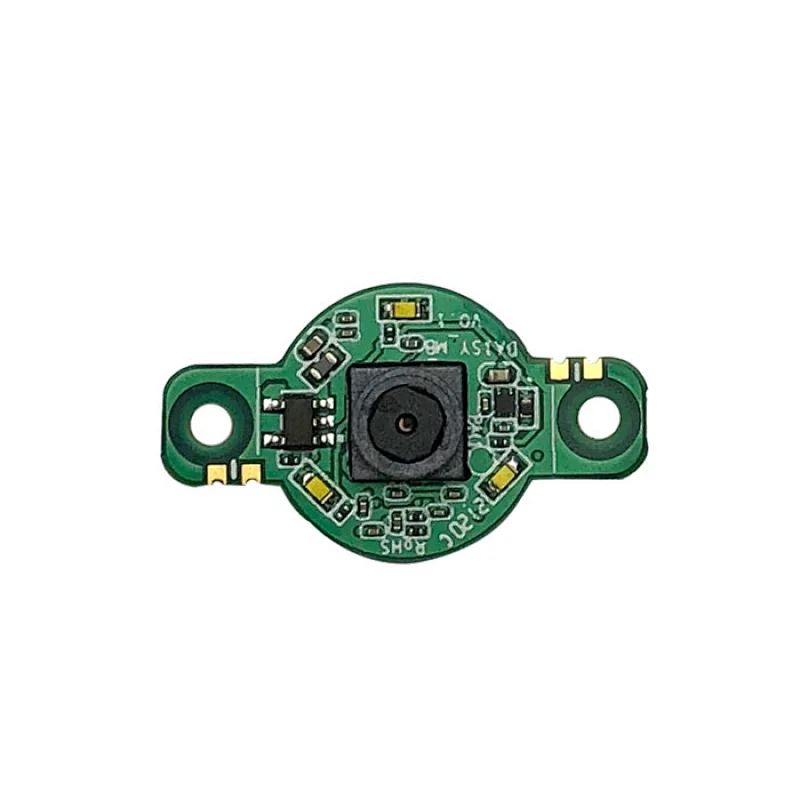

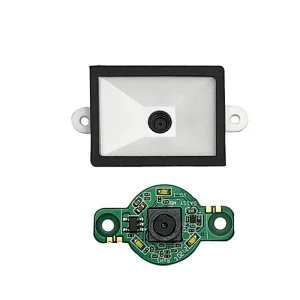

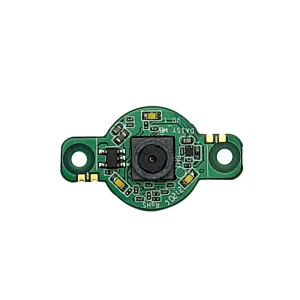

Seamless integration of imager and decoder board makes the scan engine extremely smallest and lightweight and easy to fit into miniature equipment.
Product Parameters
Performance | Image Sensor | 640x480 CMOS | |
Light Source | White LED | ||
Symbologies 2D 1D | 2D | PDF417, Data Matrix, QR Code | |
1D | Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey | ||
Resolution* | >3mil | ||
Typical Depth of Field* | 30mm~330mm (5.5-inch iPhone6SP, WeChat Payment QR Code) | ||
Symbol Contrast* | >25% | ||
Sensitivity** | Pitch: ±55°, Skew: ±55°, Roll: ±360°(QR Code 30mil Paper Code) | ||
Mechanical/Electric | Field ofView | Horizontal 68°, Vertical 51° | |
Interface | TTL-232,USB | ||

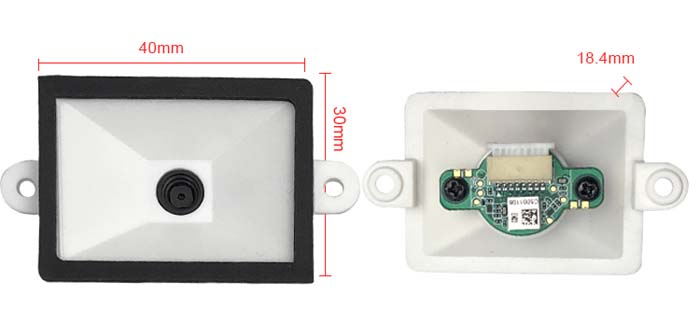

Dimensions(mm) | 40(W)x30(D)x18.4(H)mm | ||
Operating Voltage | 3.3VDC±10% | ||
Rated Power Consumption | 298mW (Typical) | ||
Current@3.3 VDC Operating Current | 89mA (Typical ) , 92mA (max) | ||
Idle Current | 10mA | ||
Sleep Current | 4mA | ||
Environmental | Operating Temperature | -20°C〜55°C | |
Storage Temperature | -40°C〜+70°C | ||
Operating Humidity | 5%〜95%((non-condensing) | ||
Ambient light | 0~100,000LUX | ||
