Model NO.:
RD4500R
Delivery:

Product Introduction:

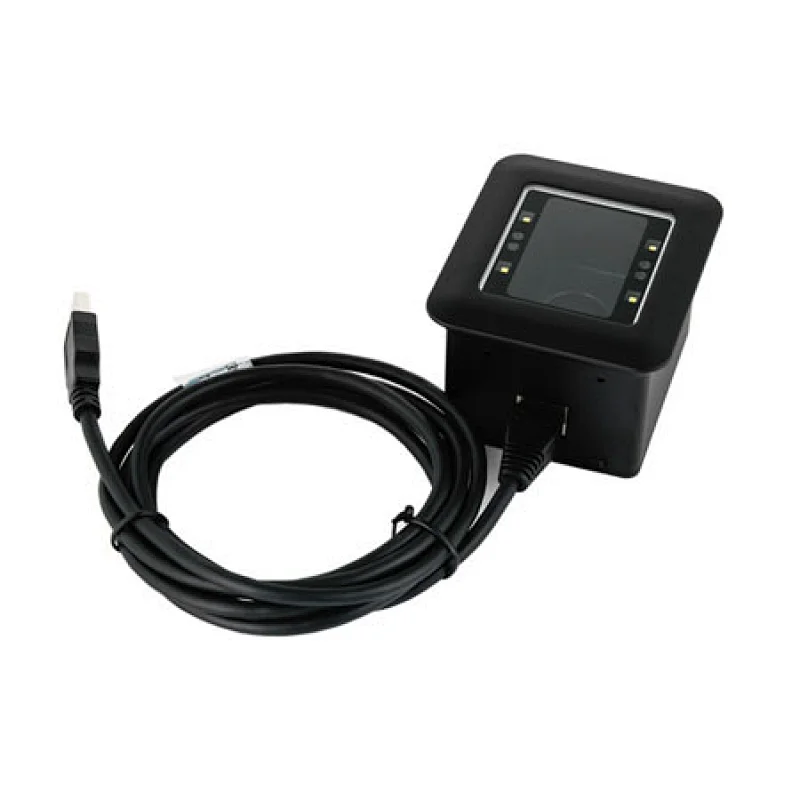

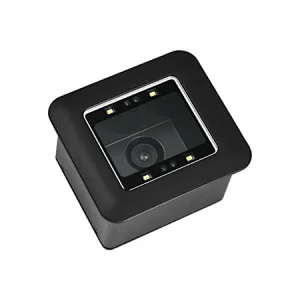

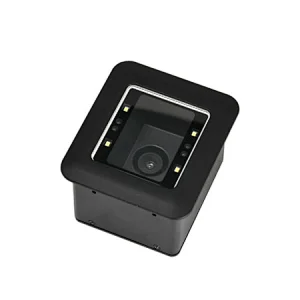

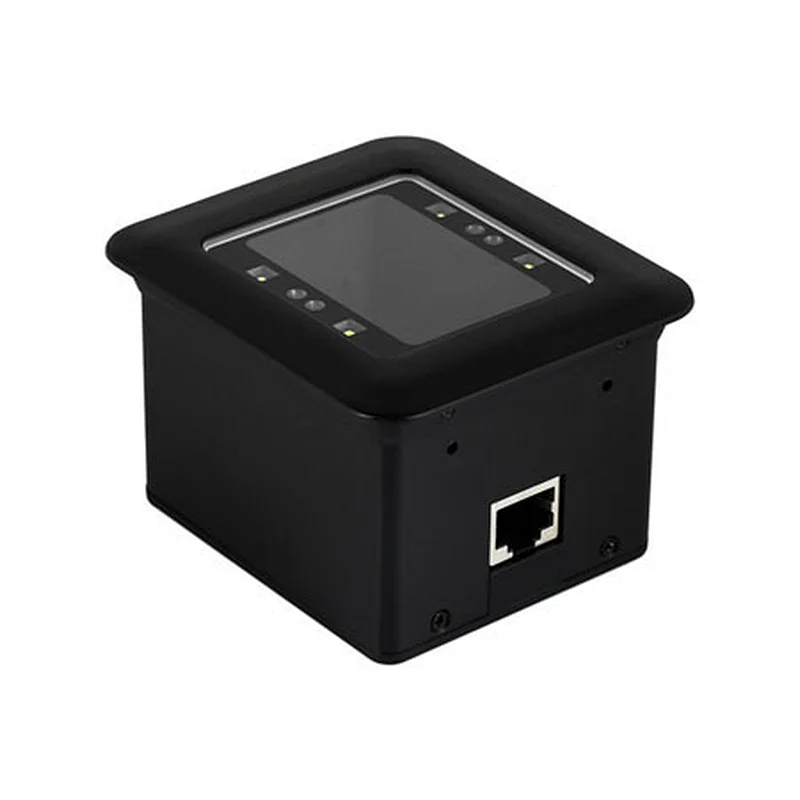

RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Product Features:

1. It can read both printed and phone screen 1D/2D barcodes
2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5.Outstanding Power Efficiency
6.The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device
7.USB/RS232 Cable Power Adaptor

Compatible OS:

Android, Windows, Linux

Projects:

Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

Product Specifications:

Performance

Processor

IOTC 0370 CHIP

Image Sensor

752×480 CMOS

Interface

RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)

Symbologies

2D

PDF417, Data Matrix, QR Code

1D

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey

Scan Mode Type

Sense mode

Resolution

10mil

Light Source

White LED

Scan Window

38.3mm×60.4mm

PCS

≥30%

FOV

Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°

Mechanical/Electrical

Power Consumption

1.75W (max.)

Notification

Beep

Size (L x W x H)

84×74×50mm

Weight

300g

4500 series of fixed mount barcode scanner

We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please contact us NOW!
