LV8200 NFC & 2D Scanner

    Quantity:
    Contact Now
    LV8200

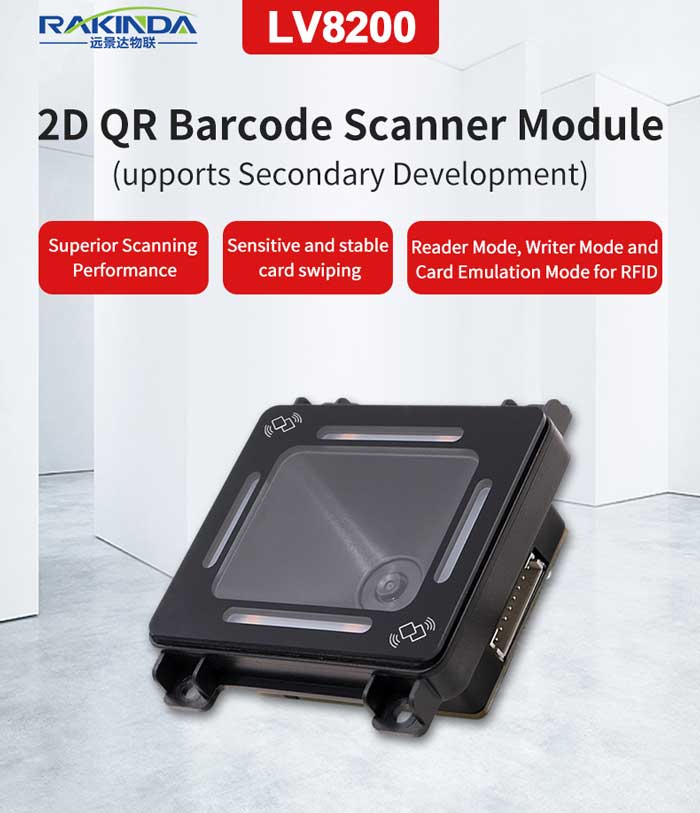

    The RAKINDA LV8200 NFC & 2D Scanner is a versatile, all-in-one solution designed for businesses requiring dual NFC and barcode scanning capabilities. Combining advanced NFC card read/write functionality with high-speed 1D/2D/QR code decoding, this compact device is ideal for smart payment terminals, access control systems, and industrial automation. With support for over 25 NFC card types and seamless multi-interface integration, it’s a Google-ranking tool for modern, tech-driven workflows.

    Features & Benefits:
    - NFC + QR Dual Functionality: Read/write NFC cards (up to 40mm range) and scan QR codes, Data Matrix, and PDF417, perfect for contactless payment systems and membership card management.
    - Multi-Interface Flexibility: Supports USB, RS232/485, Wiegand, and TTL interfaces, ensuring compatibility with POS systems, IoT devices, and legacy hardware for retail automation and smart factory integration.
    - High-Speed Decoding: Captures codes at ≥5mil resolution with a wide scan angle (skew/pitch ±70°, roll 360°), ideal for inventory tracking and parcel sorting in logistics.
    - Robust Build & Safety: Compact design (61x64.8x26mm, 30g) meets IEC 62471 LED safety standards and operates in temperatures from 0°C to 50°C, suited for harsh retail environments and outdoor kiosks.
    - Global Compliance: Multi-country keyboard layouts and EN61000-4-2 ESD protection ensure reliability in international markets and industrial IoT deployments.
    - Low Power Consumption: 1500mW typical power usage reduces operational costs in 24/7 access control systems and self-service terminals.

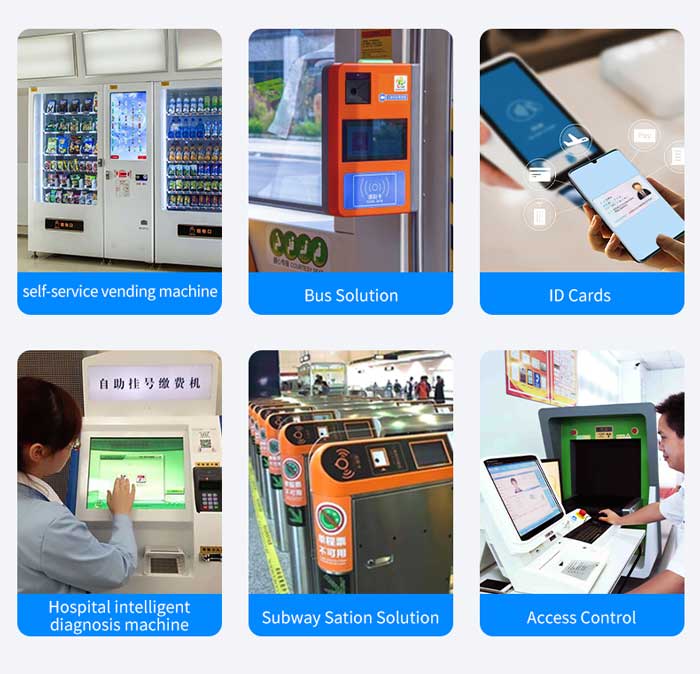

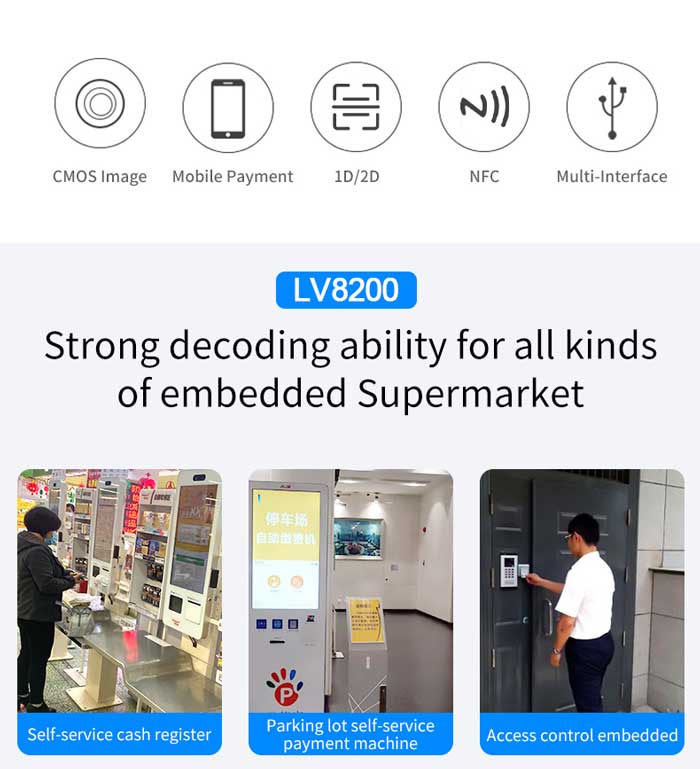

    Application Scenarios:
    - Smart Retail & Hospitality: Streamline mobile payments (Alipay, WeChat Pay) and loyalty programs with NFC and QR code scanning at checkout counters.
    - Secure Access Control: Integrate into NFC door entry systems for employee badges or visitor management in corporate and healthcare facilities.
    - Manufacturing & Logistics: Track components using DPM codes on metal surfaces or verify shipments with high-speed 2D scanning in warehouses.
    - Public Transport & Ticketing: Enable contactless fare collection with NFC card reading for buses, metros, and event venues.

    Elevate efficiency with the LV8200, a top-ranking solution for NFC-enabled scanners, multi-interface barcode readers, and industrial IoT applications. Explore bulk pricing and customization options on RAKINDA’s official site!

    Parameters

    Performance

    Typical   Decode   Range(Typical)

    Image Sensor

    640*480

    Code39(5mil)

    20mm~60mm
    Barcode Size：25mm*10mm

    Light Source

    White LED

    EAN-13(13mil)

    10mm~100mm
    Barcode Size：31mm*17mm

    Scan Angle

    Skew±70°    Pitch±70°

    Roll 360°

    QR(15mil)

    5mm~90mm
    Barcode Size：8mm*8mm

    FOV

    Dio87.1°   Horizontal   74°   Vertical 65°

    RFID Range（Typical）

    Mini Resolution

    ≥5mil

    NFC

    0mm-40mm(average)

    Barcode Minimum Print Contrast

    ≥20%

    Support Card
    Types

    Please refer to user manual of LV8200 NFC

    Decode  Capacity

    Environmental

    1D

    Codabar、Code 11、Code 128、Code 39、Code 93、EAN-8、EAN-13、GS1 DataBar、UPC-A、
    UPC-E、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、
    Straight 2 of 5 IATA、MSI

    ESD

    EN61000-4-2,±15KV

    Air Discharge 、

    ±8KV Contact  Discharge

    2D

    Aztec Code、HANXIN、Maxicode、
    Codablock F、Data Matrix Code（DPM）、PDF417、Micro PDF417、QR Code、Micro
    QR Code、DOT Code、Grid Matrix Code

    Humidity

    5%～95%(Non-Condensing)

    Physical

    Storage Temperature

    -20℃~+70℃

    Interface

    USB/RS232/485/Wiegand/TTL

    Operating Temperature

    0℃~50℃

    Voltage

    4.8 VDC-16 VDC

    Ambient Light

    0~100,000LUX

    Current(Typical)

    300mA(5   VDC

    LED Safety

    IEC 62471

    Current(Max)

    400mA(5 VDC)

    Accessories (Optional)

    Standby Current

    130mA(5 VDC)

    USB Cable

    Data Transmission, Power
    Supply、

    Power Consumption(Typical)

    1500mW

    RS232+Power Adapter

    Data Transmission, Power Supply

    Dimension

    61(W)×64.8(D)×26(H)mm

    485 / Wiegand Cable

    Data Transmission, Power Supply

    Color

    Black

    EVK+12P FPC+Power Cable

    Data Transmission, Power Supply

    Net Weight

    30g

    Country Keyboard Layout

    Multi-Countries Keyboard Layout

    Indicator

    LED,Beepe
