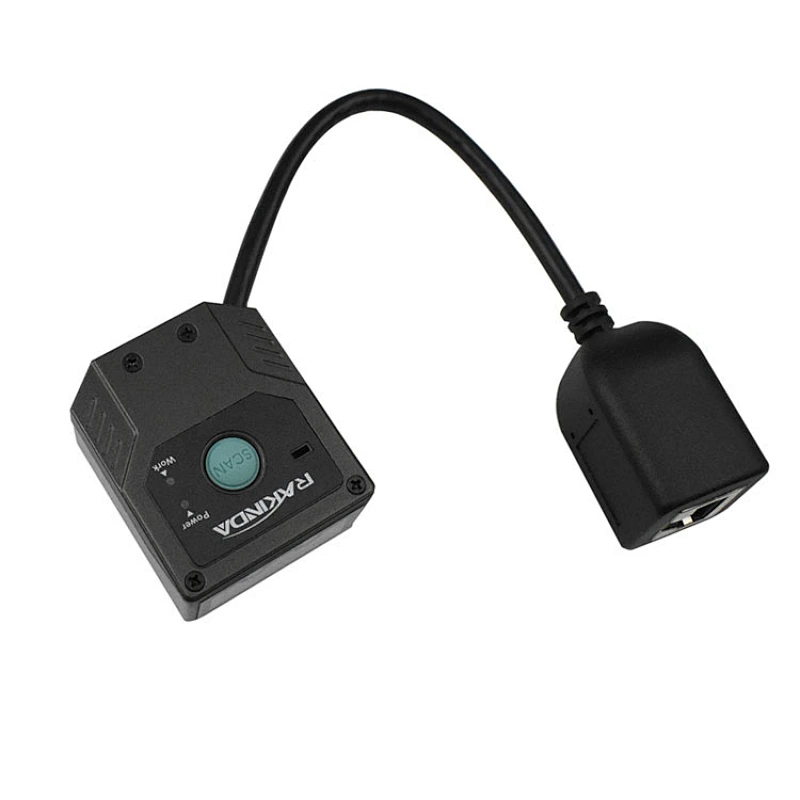

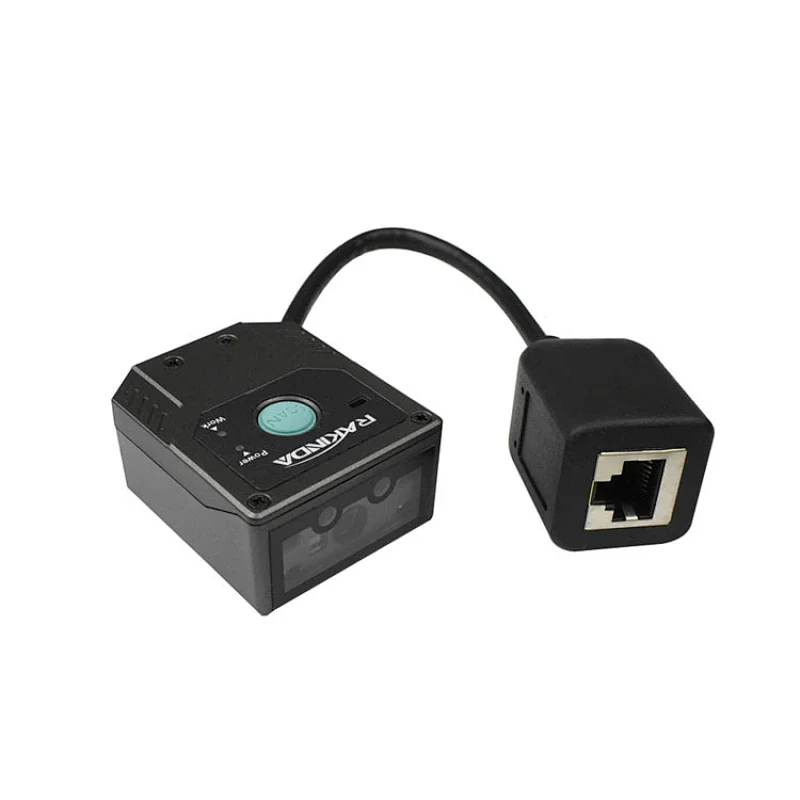

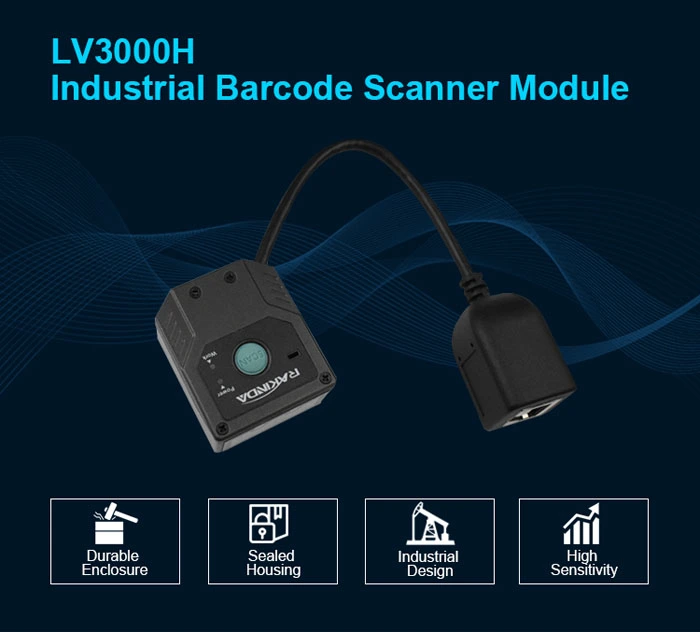

LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner
LV3000H Fixed Mount 2D Barcode Scanner

LV3000H Fixed Mount 2D Barcode Scanner

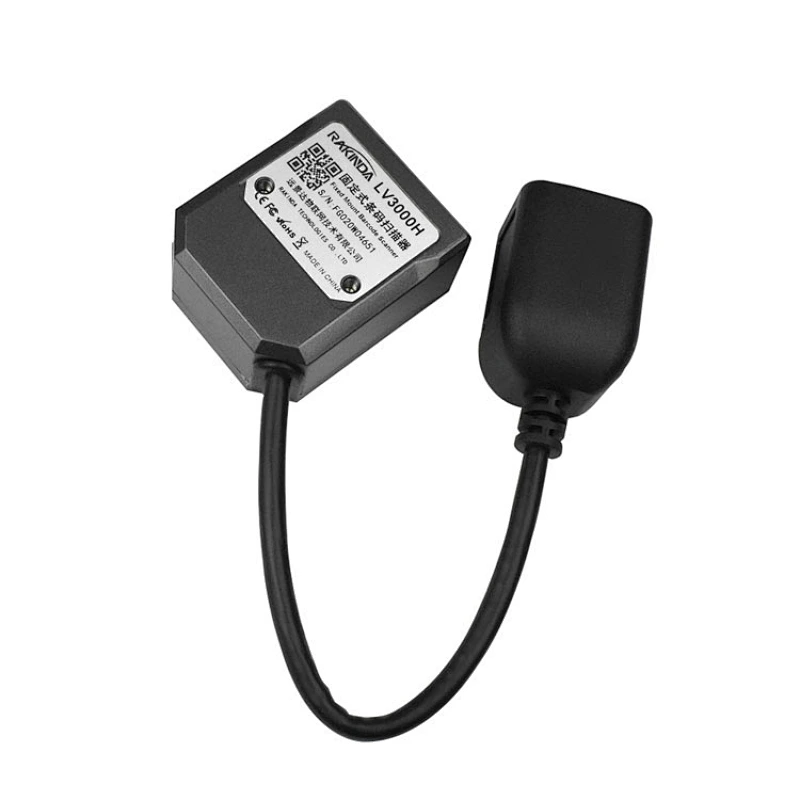

Model NO.
LV3000H
Quantity:

Product Features:

1. IR/Light Triggers Dual Trigger Mode

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

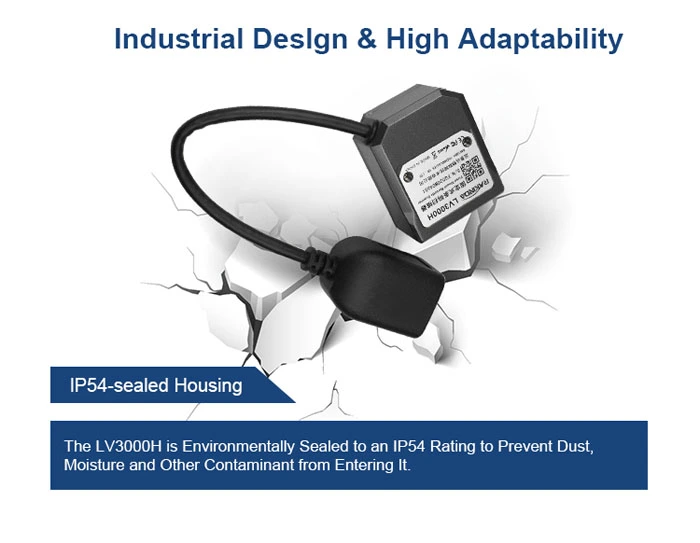

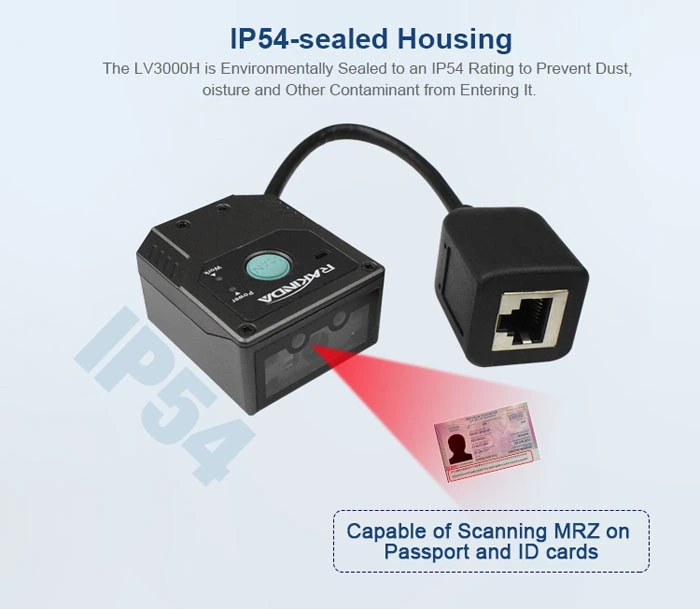

2. lP54-sealed Housing

The LV3000H is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it.

3. Clear Aiming Mode

The LV3000H provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

4. 1.5m Drop Resistance

The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per side).

5.Unmatched Reading Performance

Armed with Rakinda 's fifth-generation of UIMG® technology, the LV3000H is capable of reading1D as well as high-volume 2D barcodes on the screen covered with protective film.

6.Automatic Exposure Control (AEC)

The sensors in the LV3000H automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

Product Parameters

Performance

Image Sensor

1280*800 CMOS

Illumination Aiming

​White LED Laser Diode or Gree LED

Symbologies

2D

PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.

1D

EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.

Resolution

>=3 mil

Typical Depth of Foeld

EAN-13

55-360mm(13mil)

Code 39

70-180mm(5mil)

PDF417

55-160mm(6.7mil)

Data Matrix

50-170mm(10mil)

QR Code

40-210mm(15mil)

Scan Mode

Sense mode, Continuous mode, Level mode, Pulse mode

Scan Angle

Roll:360d, Pitch:±55°, Skew:±55°

Field of View

Horizontal 51°, Vertical 32°

Min Symbol Contrast

25%

Mechanical Electric

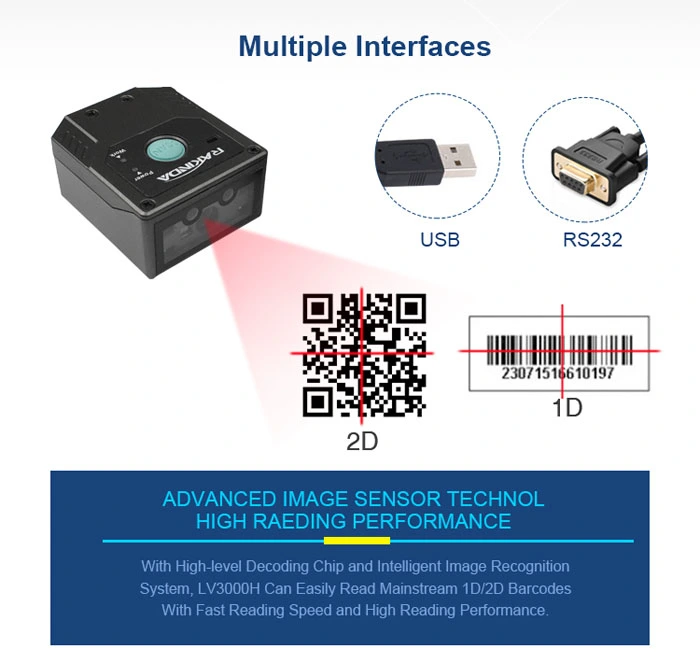

Interface

RS-232, USB

Dimensions

63(W)*45(D)*28(H)

Weigh

75g

Notification

Beep, LED indicator

Rated Power Consumption

1622mW(typical)

Operating Voltage

5VDC±-5%

Current SVDC

Operating

276.8mA(typical), 322.7mA(max.)

Standby

83.3mA

Environmental

Operating Temperature

-20℃ to 60℃(-4℉ to140℉)

Storage Temperature

-40℃ to 70℃ (-40℉ to 158℉)

Humidity

5% to 95% (non-condensing)

ESD

± 14kV (air discharge), ±8kV (direct discharge)

Drop

1.5m

Sealing

IP68

Certifications

FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

Environmental

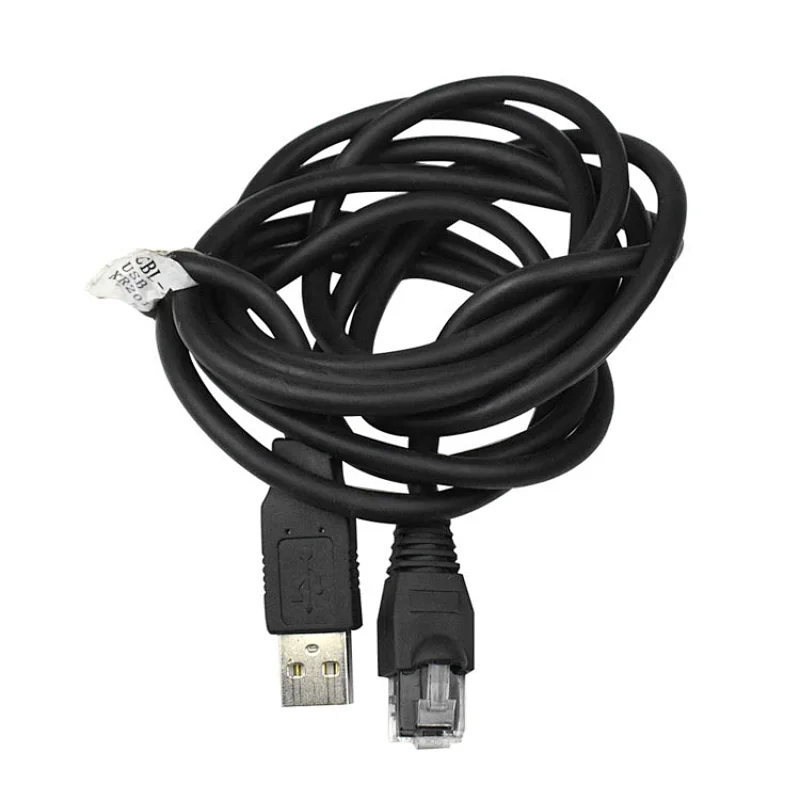

Cable

USB

Used to connect the LV3000U to a host device

RS-232

Used to connect the LV3000U to a host device

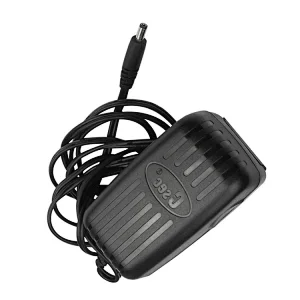

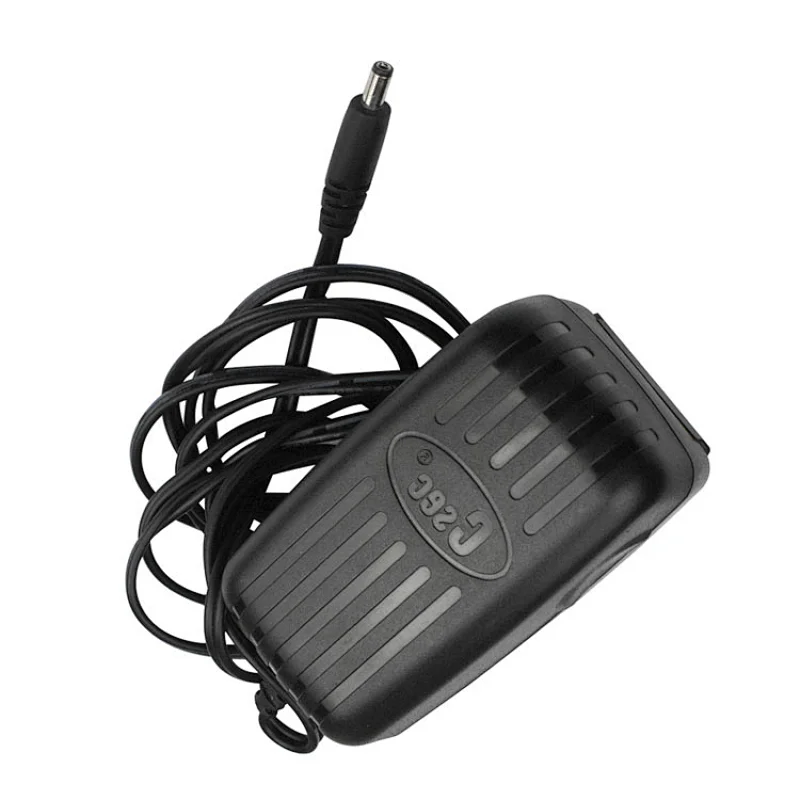

Power Adapter

DC5V adapter to power the LV3000U with RS-232 cable
