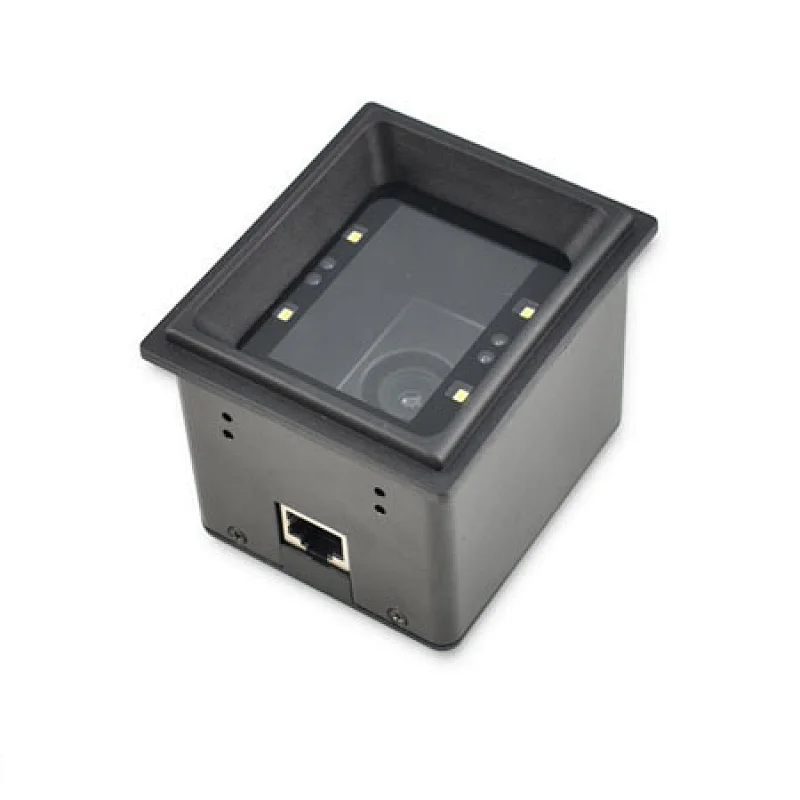

Fixed 2D Barcode Reader Scanner Module
Fixed 2D Barcode Reader Scanner Module
Fixed 2D Barcode Reader Scanner Module
Fixed 2D Barcode Reader Scanner Module
Fixed 2D Barcode Reader Scanner Module
Fixed 2D Barcode Reader Scanner Module

Fixed 2D Barcode Reader Scanner Module

Model NO.:

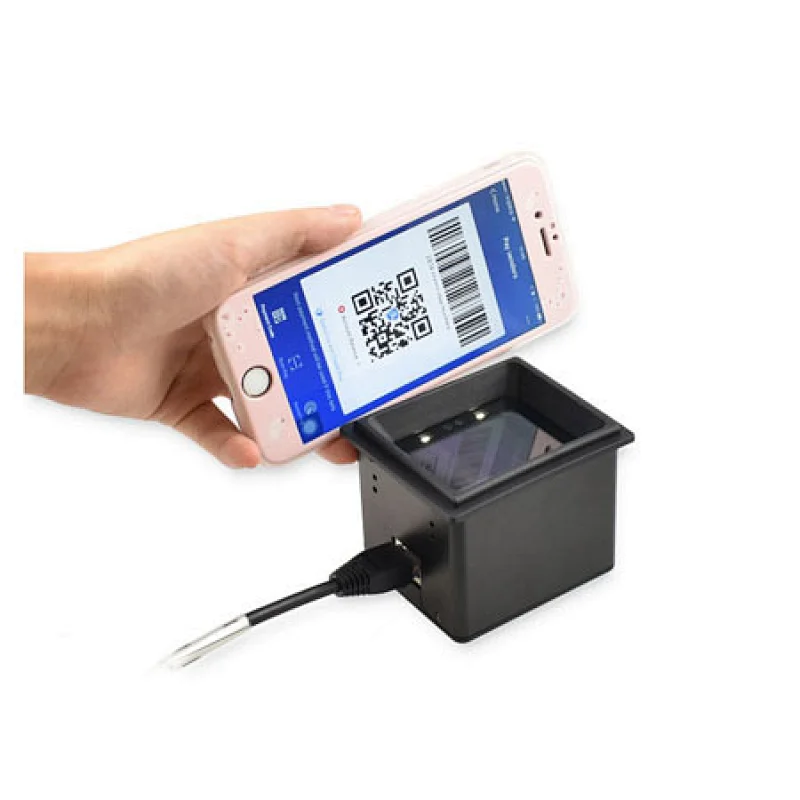

In recent years, people get a valid QR code on their phone screen, and they will get the information they need or even print their tickets directly at the kiosk.
For such public area application, the efficiency is very important. People need to get satisfactory experience in a short time. The response time of scanner is extremely important. RD4600 barcode scanner module is such a scanner. When phone screen code is presented, it only needs less than 0.4 seconds to respond. Users can get first time scan easily. The phenomenon of crowds waiting at info kiosk is greatly relieved with this high tech kiosk.
When you develop such kiosk, pls kindly contact us for RD4600 2d barcode reader, which will be just right for you!

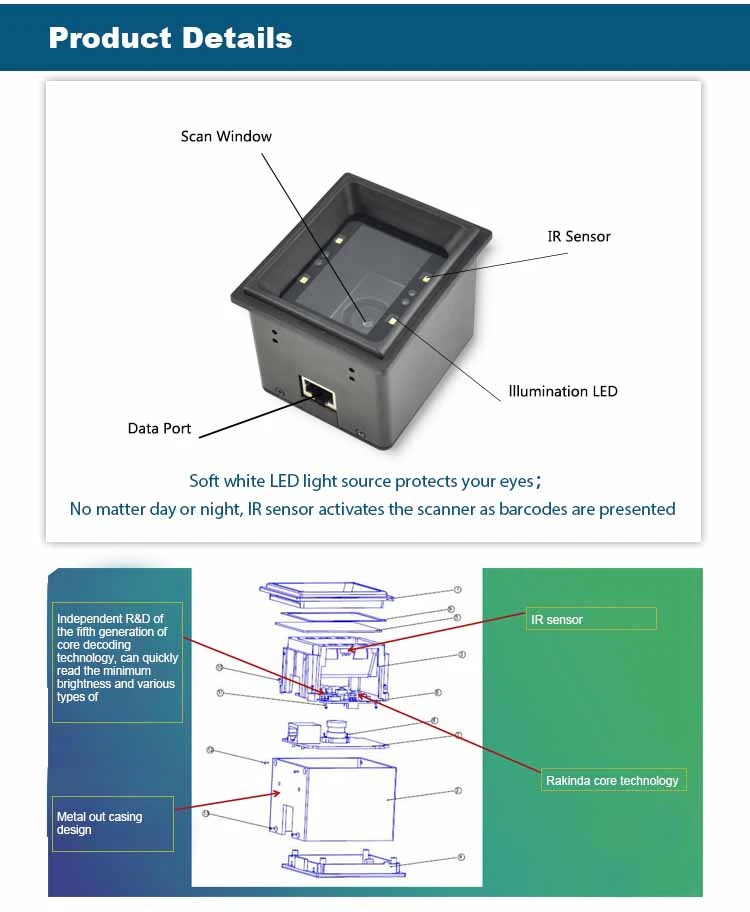

Product Features:
1. Snappy capture of on-screen code and printed code
Armed with latest Rakinda scan technology, the scanner excels at scanning on-screen code even when the screen is covered with protective film.
2. Durable Metal Housing
The scanner uses durable metal housing, making it dust and moisture proof.
3. IR Trigger
The IR sensor inside the scanner can sense the object quickly. It will start to scan immediately when a code is passing by.
4. Advantage
Good at Scanning Phone Screen Code.

Why Choose this model:

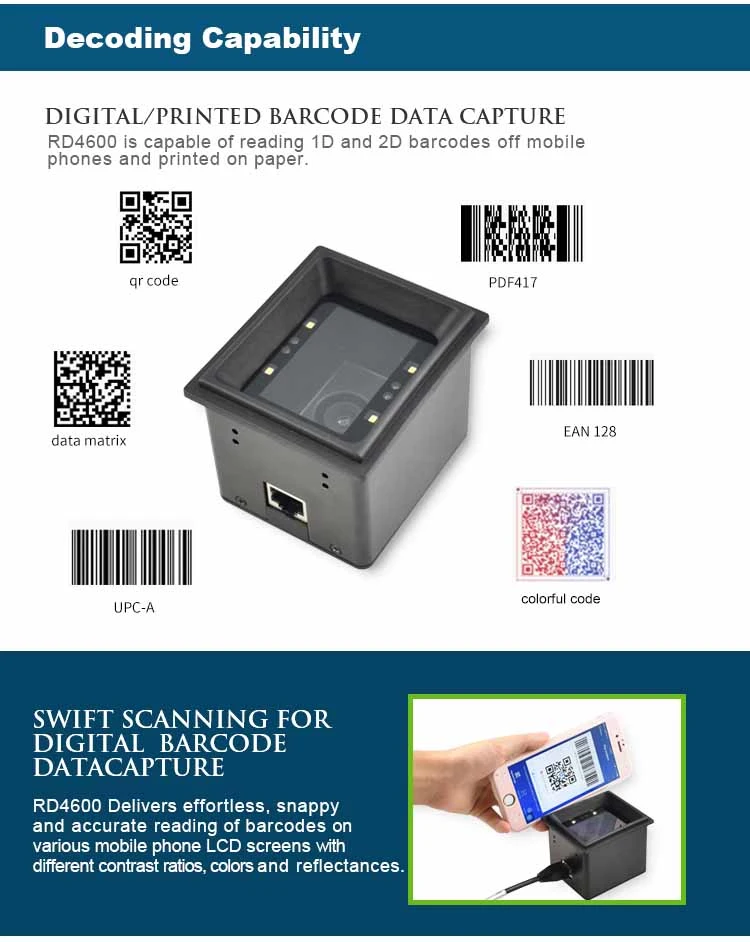

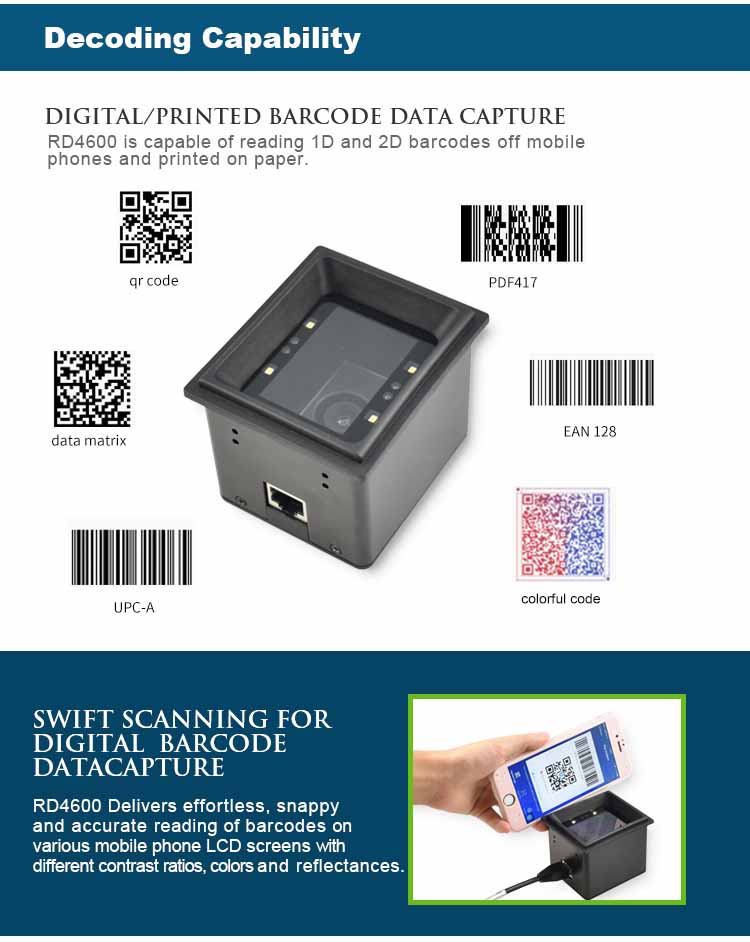

1. Read all major 1D & 2D symbols, as well as those on electronic screens.
2. Image auto-detection supports presentation scanning mode.
3. Ergonomic, snappy and stylish design allows for a natural and comfortable integration.
4. Protects your future investment with 2D capability at an affordable price meeting both current and future bar code scanning needs.
5. Omnidirectional scanning
6. Suitable to operate in diverse working environments.

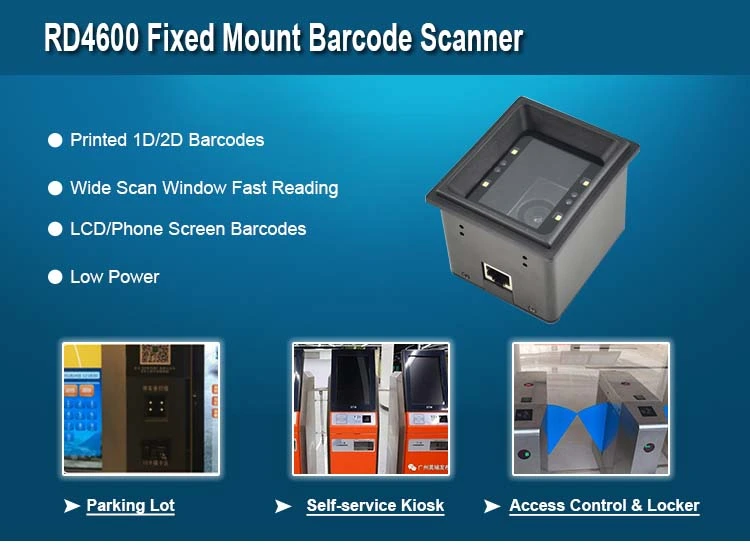

turnstile, access control system; vending machine, ATM, queue kiosk, payment kiosk, etc
Noted: If customers need TCP/IP interface, we can supply aboard together with the scanner. Customers can also develop their own board.

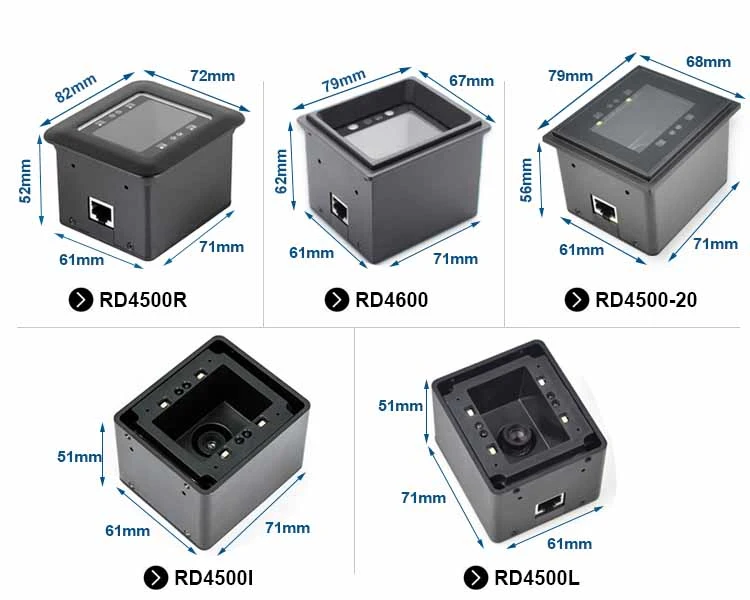

4500 series of fixed mount barcode scanner

We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please contact us now.

Product Parameters

PerformanceImage Sensor752*480 CMOS

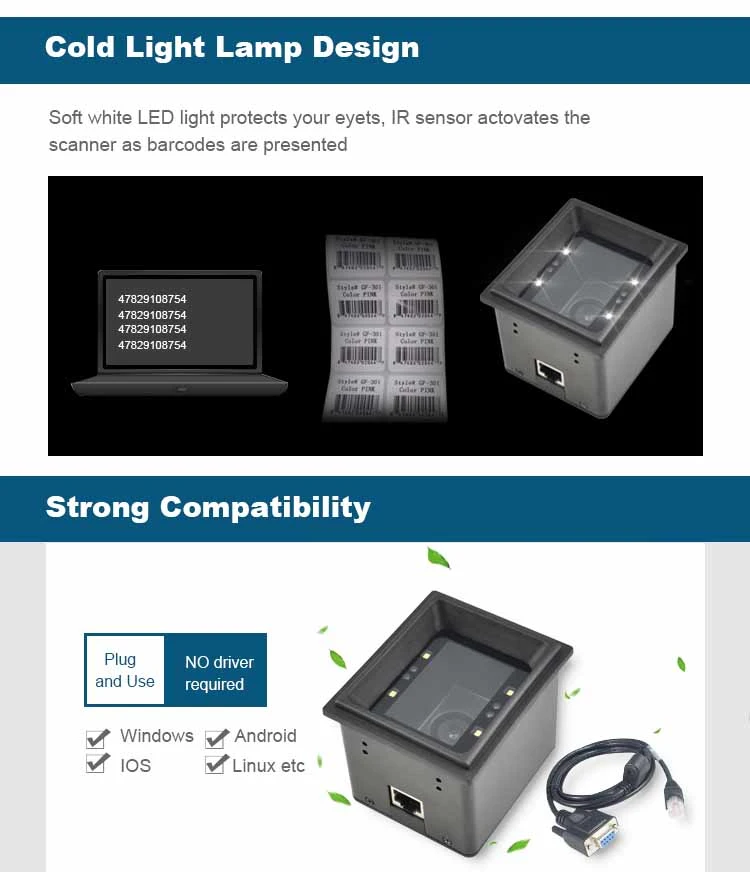

IlluminationWhite LED
Symbologies2DPDF417, Data Matrix, QR Code, Chinese Sensible Code.
1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey.
Resolution≥ 5 mil
Scan ModeSense mode, Continuous mode
Scan AnglePitch: ±40°, Roll: 360°, Skew: ±40°
Scan Window31.5mm×46.5mm
Symbol Contrast≥25%

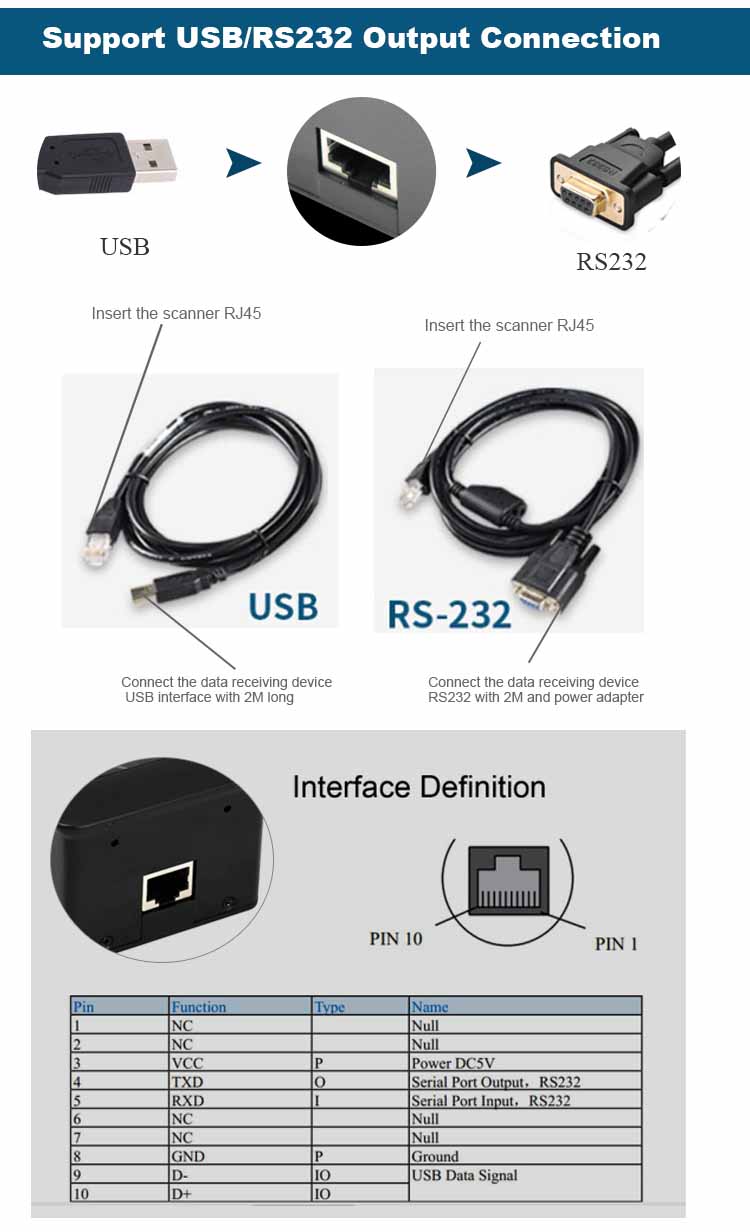

InterfaceRS-232, USB
FOVHorizontal: 75°, Vertical: 50°

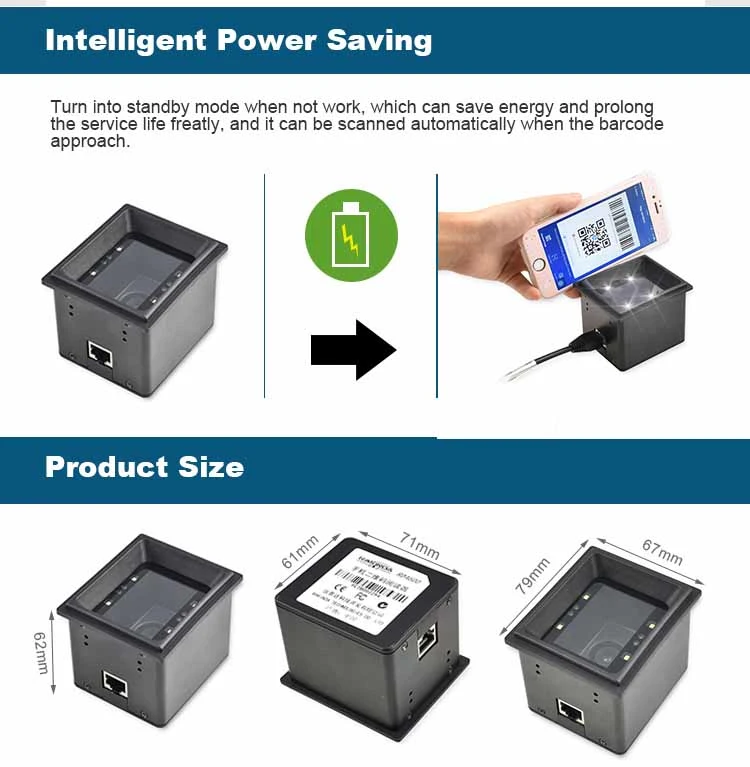

Physical/ElectricDimensions (LxWxH)78.7(W)×67.7(D)×53(H)mm (max.)
Weight173 g
Power consumption534mW (typical)
Operating Voltage5VDC±5%
Current@5VDCOperating Current: 108mA (typical), 114mA (max.)
EnvironmentalOperating Temperature-20℃~60℃
Storage Temperature-40℃~70℃
Humidity5%~95% (non-condensing)
ESD±8 KV (air discharge); ±4 KV (direct discharge)
CertificationFCC Part15 Class B, CE EMC Class B

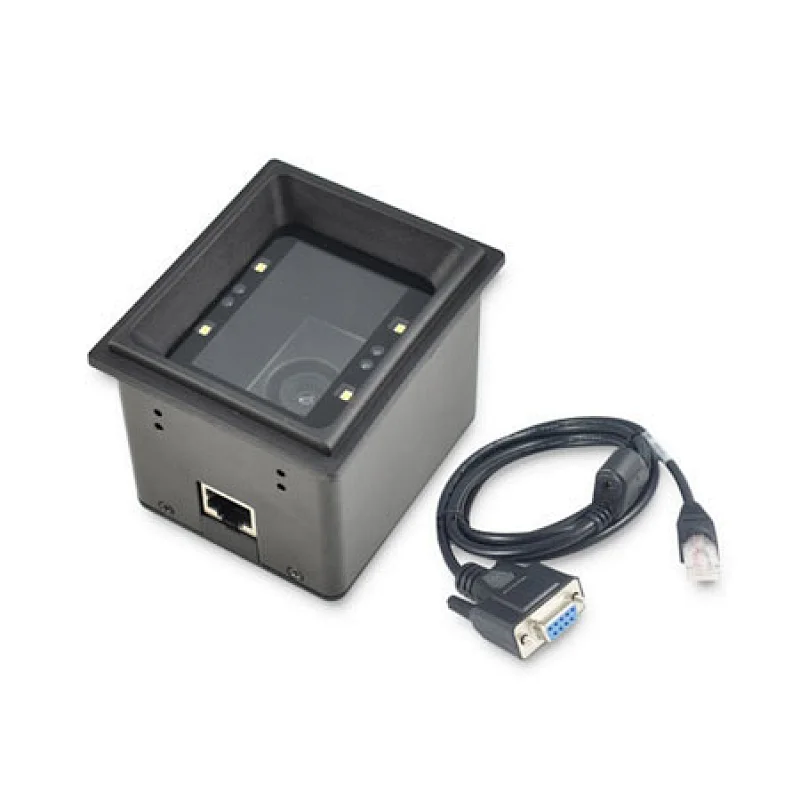

AccessoriesCableUSBUsed to connect the scanner to a host device.
RS-232Used to connect the scanner to a host device.
