Model NO.:
RD4500I
Delivery:

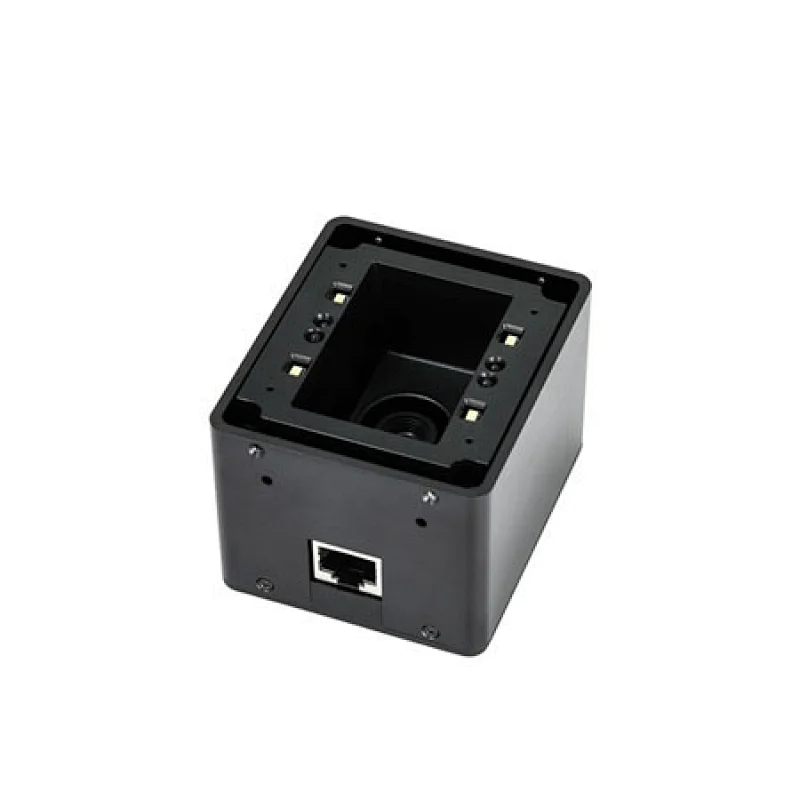

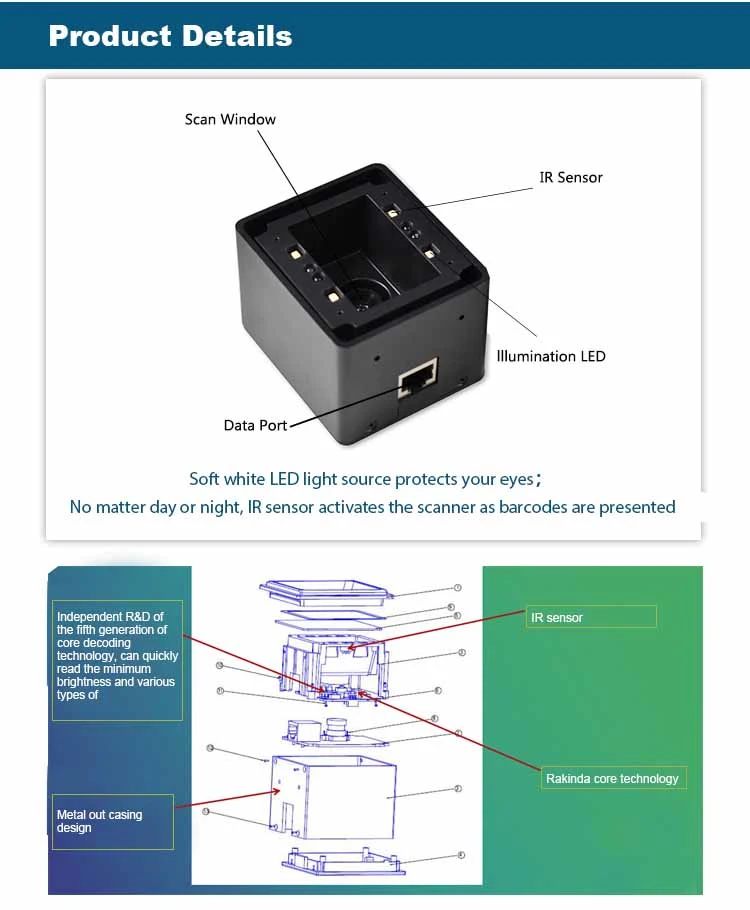

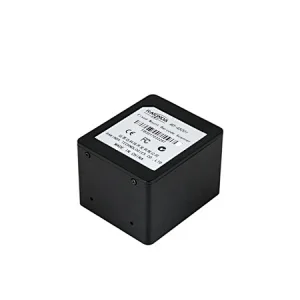

RD4500I 2D scanner is fixed mount type embedded barcode scanner module. It has USB or RS232 output cable. It is easy to operate and integrate. The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented.

We will provide you user guide to set the scanner.

Suggest application areas: kiosk, vending machine, turnstile, certificate market, access control system, queue machine, lottery machine, express delivery machine, etc.

Product Features:

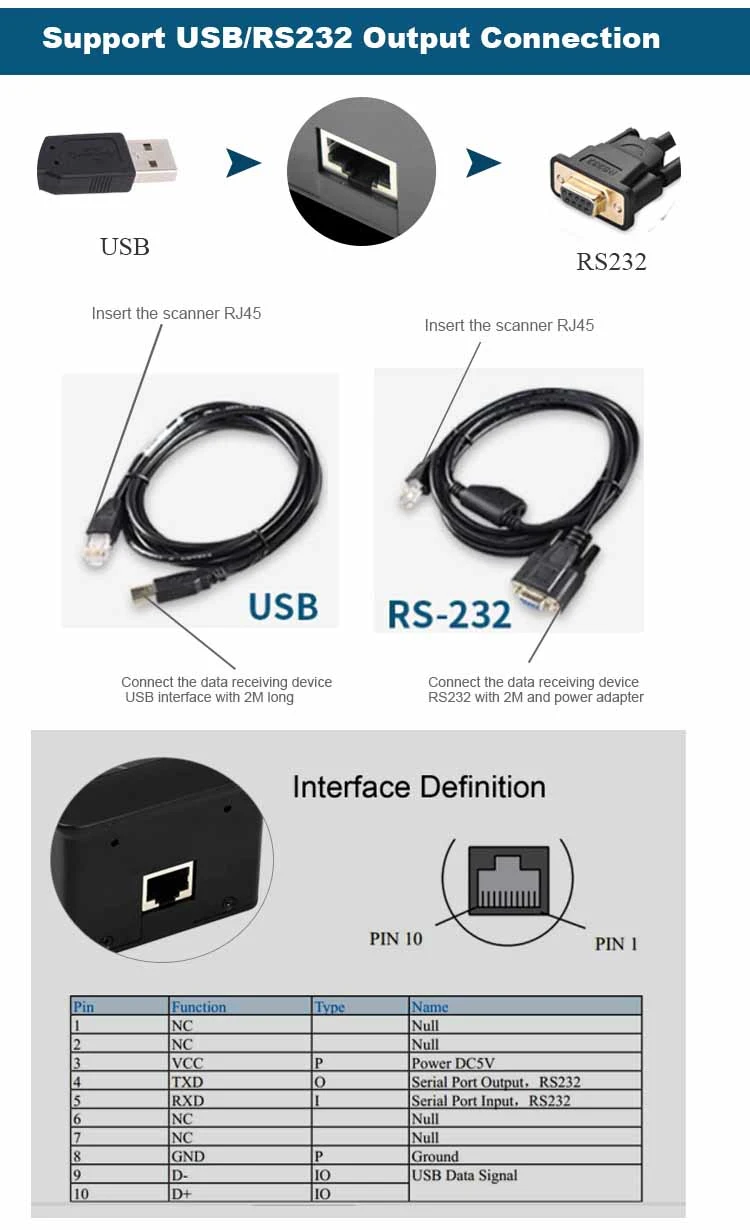

1. Fixed mount type USB or Serial cable output: easy to integrate

2. Quick scanning screen code

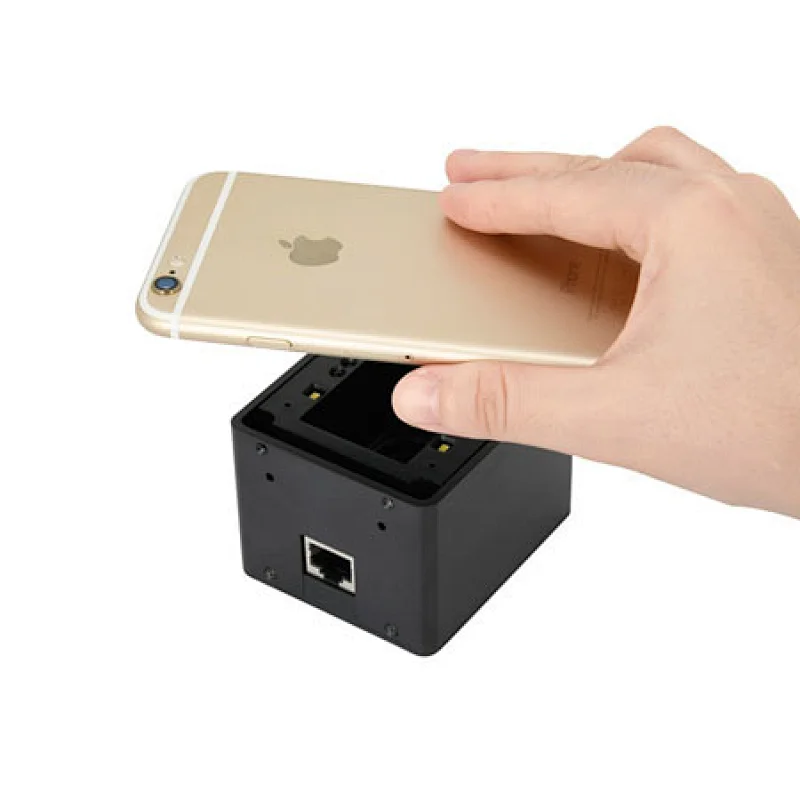

Scanning 1D and 2D barcodes off cell phone screen in a time less than 0.4 sec.

3. Same good at scanning paper and cards code
Swift reading 1D and 2D barcodes on cards and paper.

4. Fit for demanding environment
It is a common case that phone screen is covered with various protective film. Do not worry with RD4500I scanner. RD4500I can still scan the code swiftly. It typically takes less than 0.4 sec to recognize the code.

5. Simple to operate
When you need to set the scanner, you just need to scan the setting code in the user guide. It is one step operation and easy to do.

6. A barcode scanner has a housing including a surface having a transparent scanning window
The housing contains optical components including a spinner and pattern mirrors arranged to produce sets of densely packed scan lines. The housing further contains a single output mirror which can be arranged in a first position in which the scan lines are optimized for horizontal scanning and a second position in which the scan lines are optimized for vertical scanning.

Application Case

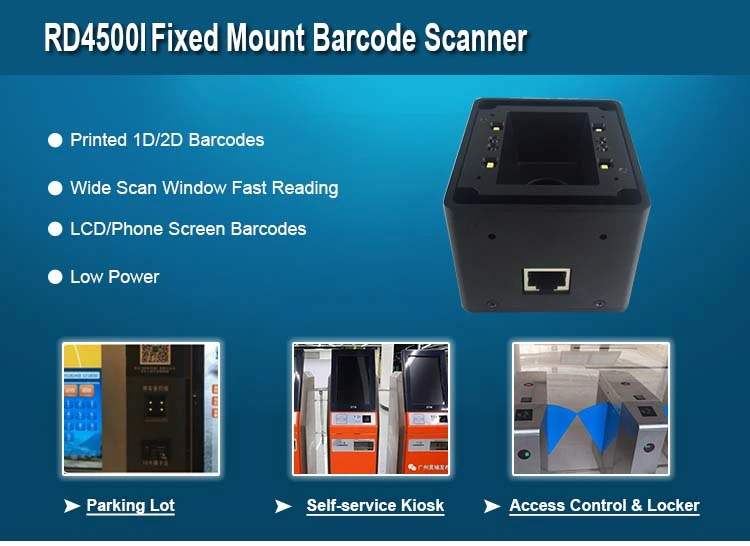

RD4500I fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Compatible OS: Android, Windows, Linux

Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

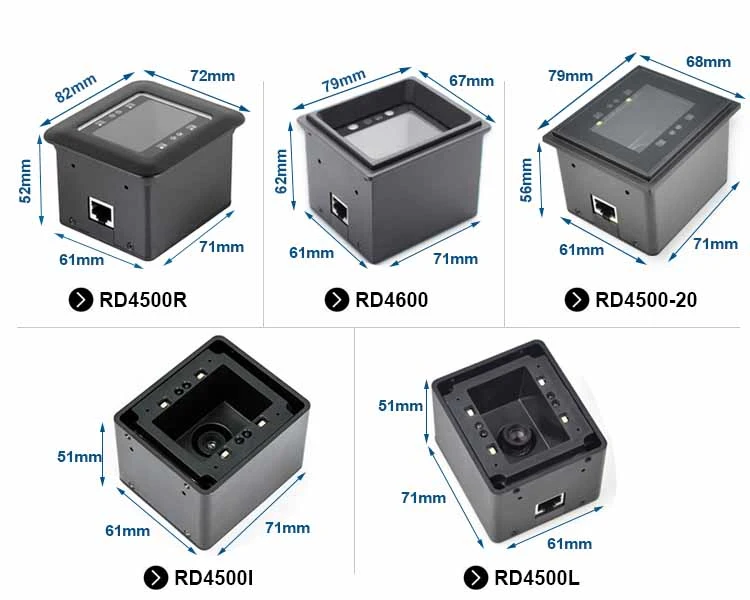

4500 series of fixed mount barcode scanner

We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please contact us now.

Product Parameters

TypeEmbedded type fixed mount
InterfaceUSB, RS232
Weight280g

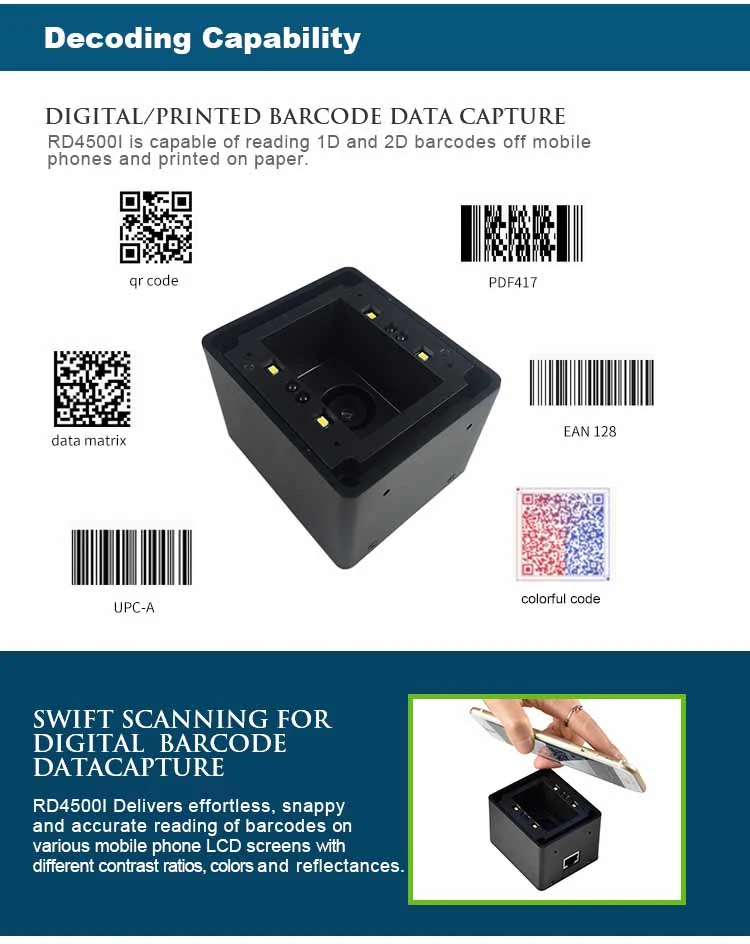

Code to scan:2D: PDF417, QR code, data matrix
1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey

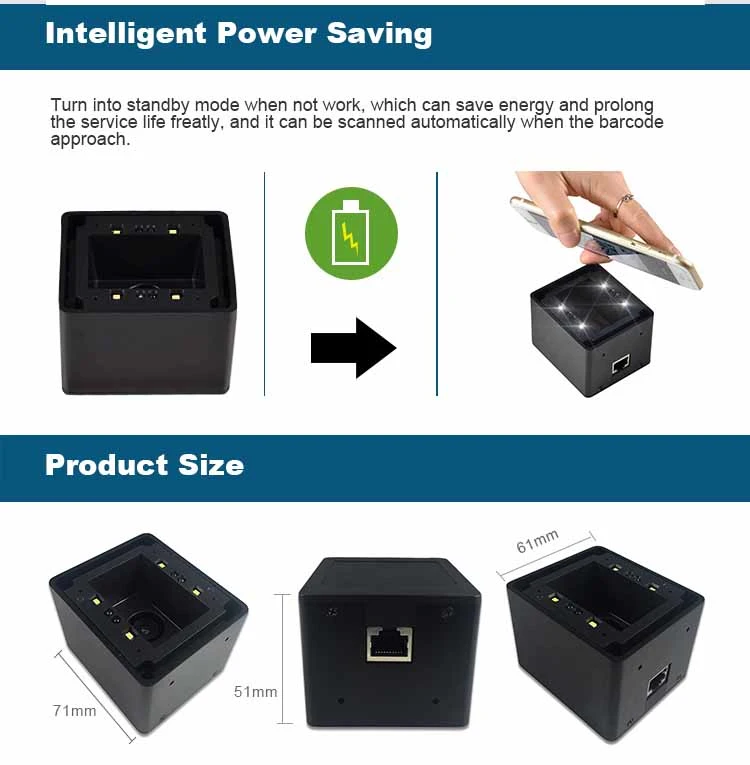

Size71mm 61mm 50mm
Scan Speed300 scans per sec
Ambient Light0-100,000 LUX
Power Consumption1.75 W max
NotificationBeep
Light SourceWhite LED
