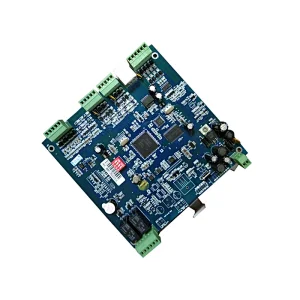

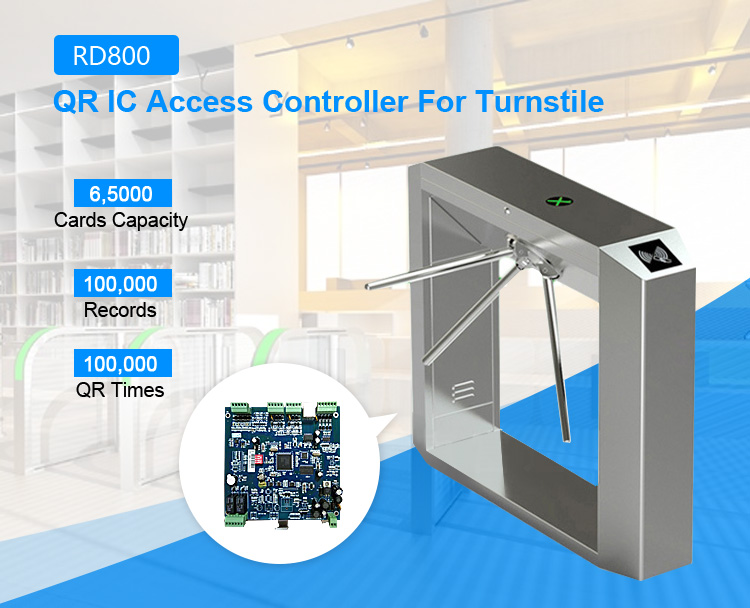

Barcode Scanner Access Controller

The controller is based on a 32-bit ARM microprocessor platform;Support multiple door opening methods such as scanning the QR code , swiping the card, card + password, super password , dual card , first card , duress code to open the door, emergency full open and full closed, forced door normally open and normally closed;It can realize the independent and complete control of 1 access door: including the control of in and out bidirectional card reader and QR code scanning head; It is widely used in the access control management of banks, prisons, police stations, office buildings, residential districts, large state-owned enterprises and enterprises and institutions.

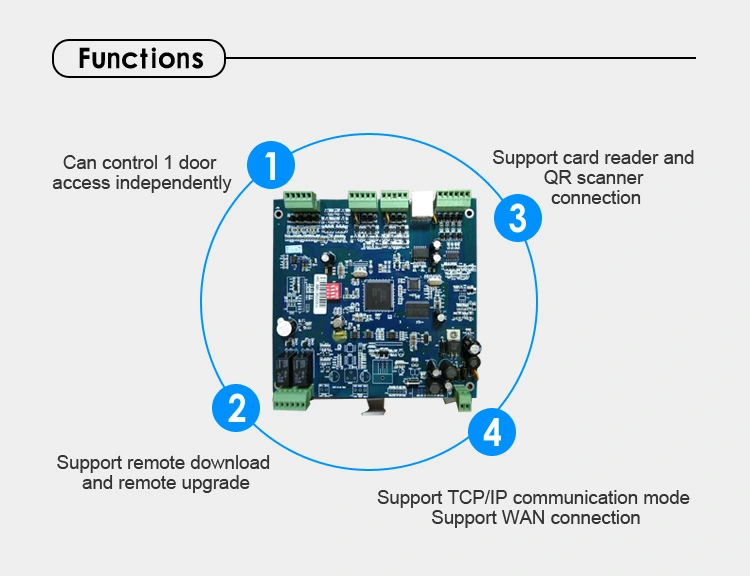

Key performance characteristics:
1: The controller card capacity is 65,000 pieces, and the event capacity is 100,000 pieces, which can be expanded; the capacity of QR code is 100,000 times
2: Built-in multi-task embedded real-time operating system in the controller;
3: Using DataFlash and ferroelectric memory, the data will not be lost for 10 years after power failure;
4: Support remote download and remote upgrade;
5: Support TCP/IP communication mode, support WAN connection;

Parameters of Access Control System

Technical Specifications
Communication Method	Communication Port	10/100M self-adaptive Ethernet interface,
		Direct-connected network cable
		Crossover network cable
Protocol	TCP/IP protocol
	Serial communication protocol	Baud rate	9600
Transmission Distance	TCP/IP	<100 meters
	Support Offline Operation
	Allow online or remote upgrade
	Supportcross-gateway/cross-network segment
	Weekly Programming	15 groups*7 days*8 periods
	Holiday Programming	15 groups*100 days*2 periods
	Control Schedule	Group*7 days*8 periods
Memory	Card Users	65,000 (standard type), expandable to 250,000 users
	Event Records	80,000 (standard type), expandable to 500,000
	Capacity of QRCode	100,000 times
	Power-off Data Retention Time	10 Years
ElectricalParameters	Controller Power Input	12VDC
	Access Control Dedicated 5a Power Supply	110~260VAC50/60HZ
	Backup Power Supply	12V / 7AH lead-acid battery(optional)
	Working Current	<150mA (Note: Electric lock and reader current notincluded)

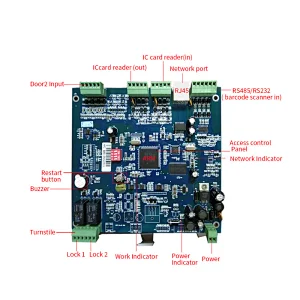

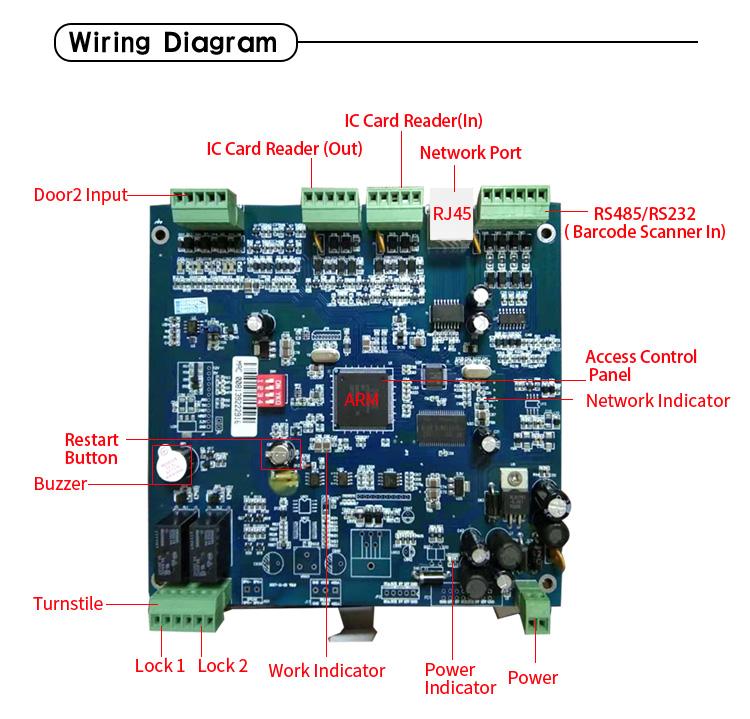

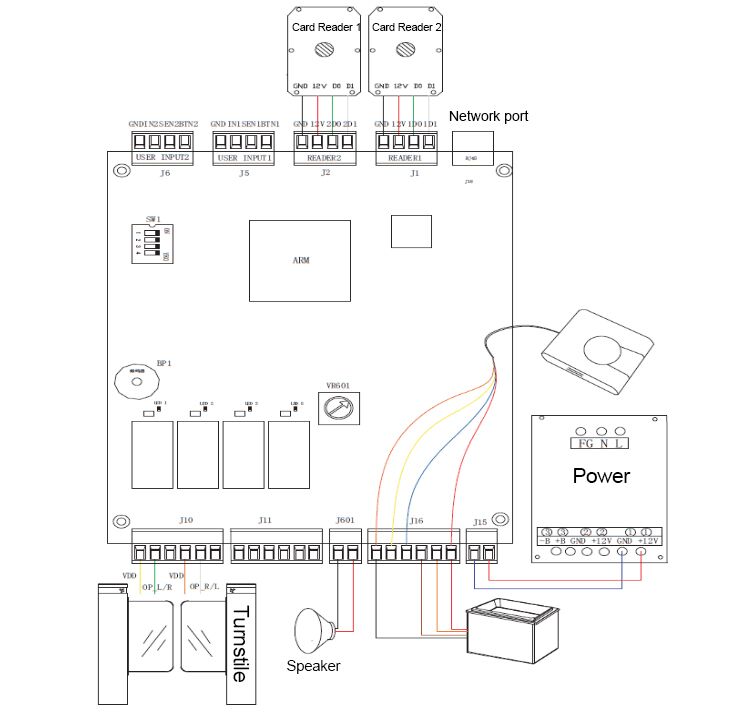

	Communication Port	TCP/IP network port
	RS232 Serial Port	2 channels, support connection of QR code scanner/ID card reader
	ReaderPort	2 channels, support Wiegand 26/34reader
	Relay Output	Omron relay DC30V/5A, 250VAC/5A
	Relay Delay	1-255 seconds delay of door lock relay can be set, other relays can be set 1-65535 seconds
	Interface Protection	All input and output interfaces have over-current and over-voltage protection, communication ports and power ports have multi-level lightning protection
	Door Lock Output	1 channel, relay capacity 30VDC 5A, relay delay 1-255 seconds can be set
	Door Sensor Input
	Voice Output	1 channel with voice power amplifierinterface
	Door Sensor Input	1 channel, normally open and normally closed can be set, the transmission distance between the ordinary network cable and the controller is less than 200 meters
	Exit Button Input
	User Alarm Input
	Door Lock Fully Open Input	1 channel, transmission distance between ordinary network cable and controller ≤200m
	Door Lock Fully Closed Input
Performance Parameter	Card Reading Speed	< 0.2 seconds, support card reader to swipe at the same time
	Swipe Interval	<0.5s
	Network Download Card	> 200 cards/s, the download time of 20,000 cards is less than 100 seconds
	Network Upload Record	> 350 records/s, upload time of 100,000 records is less than 330 seconds
	Support Card Reader Type	IC, ID, password, biometrics, etc.
	Scanning QRCode Speed	<0.5s
	Scan Code Interval	<0.5s
	QRCode Verification	Rule verification, support QR code to open the dooroffline
Physical Parameter	PCBSize	160mm × 150 mm
	Operating Temperature	-20℃ — 65℃
	Relative Humidity	0 — 90% No condensation
