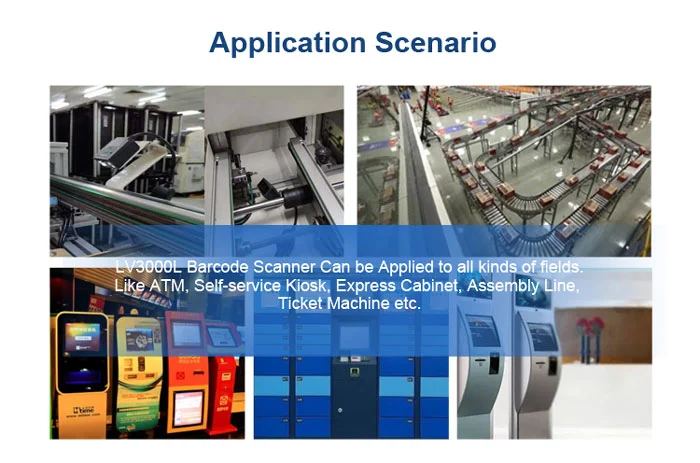

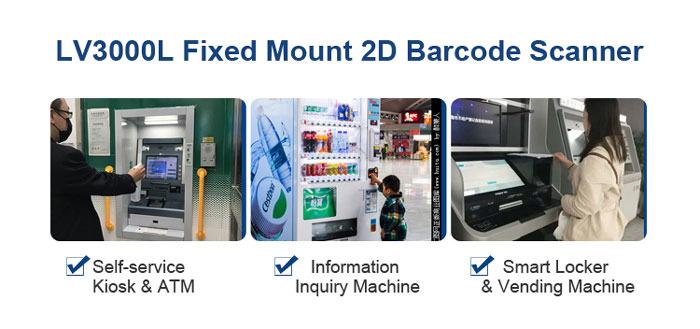

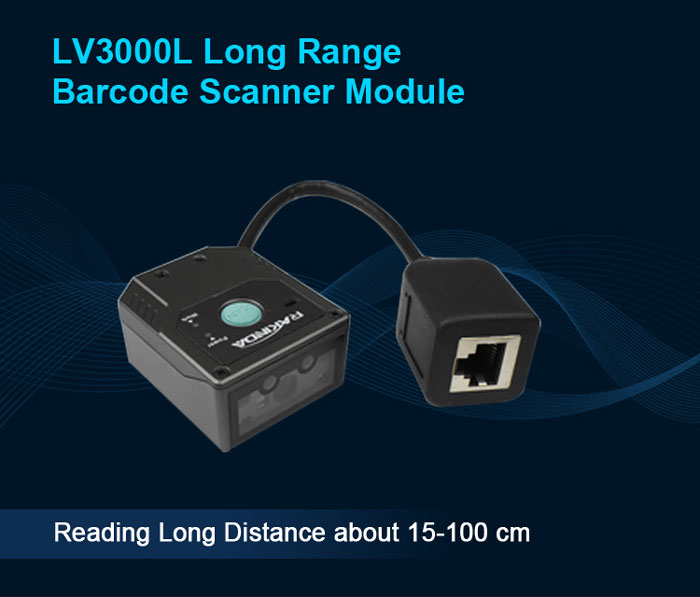

LV3000L long range barcode scanner is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film,automatically adjust the brightness of supplementary lighting based on the light reflected off barcode. use for Self-service Kiosk Terminal, Payment machine, Smart Locker, Vending Machine, O2O applications, etc.
Features of Fixed Mount QR Code Scanner
1.The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2.The sensors in the LV3000L automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

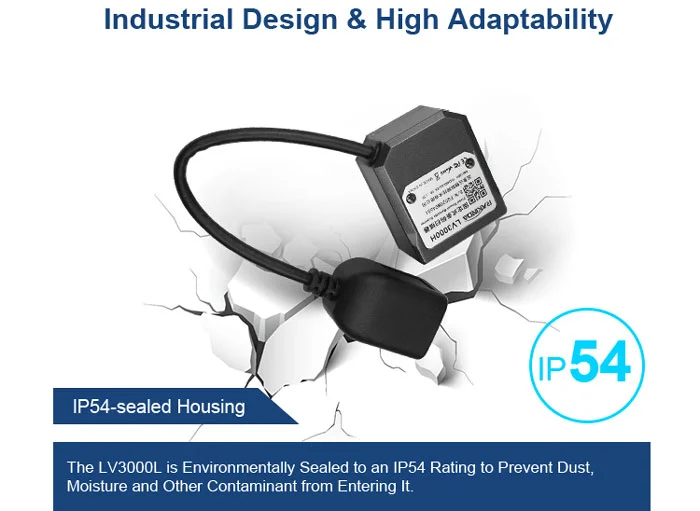

3.The LV3000L fixed mount barcode scanner is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it.
4.The LV3000L is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
5.The LV3000L 2d barcode scanner provides a laser-generated aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6.The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).

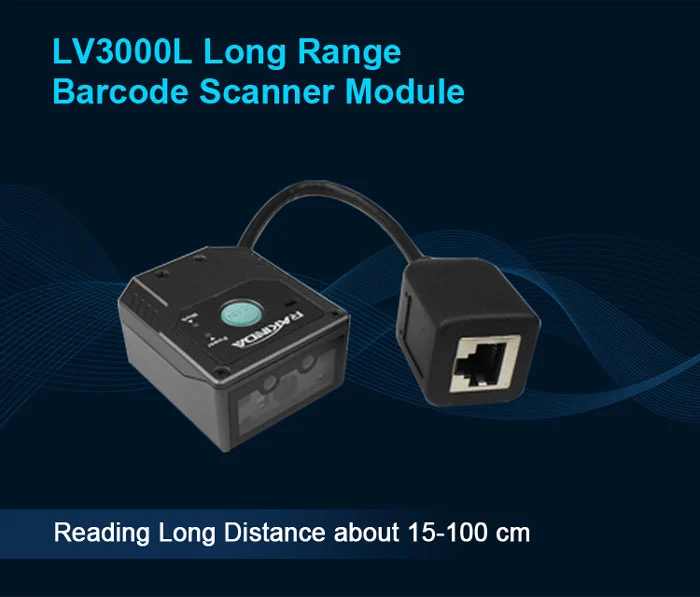

7. Long range reading.Phone Screen Code: 25cm~100cm, Paper Code:15cm~100cm
Long Range Barcode Scanner Parameters
Performance | Image Sensor | 1280*800 CMOS | |
Illumination Aiming | White LED LaserDiode or Gree LED | ||
Symbologies | 2D | PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect. | |
1D | EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc. | ||
Resolution | >=3 mil | ||
Typical Depth of Foeld | Phone Screen Code | 25cm~100cm | |
PaperPrintedCode | 15cm~100cm | ||
Scan Mode | Sense mode, Continuous mode, Level mode, Pulse mode | ||
Scan Angle | Roll:360d, Pitch:±55°, Skew:±55° | ||
Field of View | Horizontal 51°, Vertical 32° | ||
Min Symbol Contrast | 25% | ||
Mechanical Electric | Interface | RS-232, USB | |

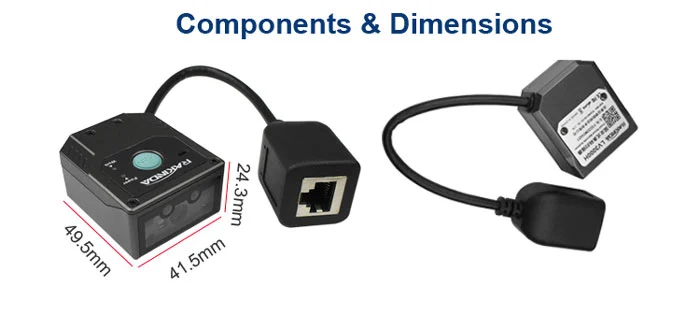

Dimensions | 63(W)*45(D)*28(H) | ||
Weigh | 75g | ||
Notification | Beep, LED indicator | ||
Rated Power Consumption | 1622mW(typical) | ||
Operating Voltage | 5VDC±-5% | ||
Current SVDC | Operating | 276.8mA(typical), 322.7mA(max.) | |
Standby | 83.3mA | ||
Environmental | Operating Temperature | -20℃ to 60℃(-4℉ to140℉) | |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) | ||
Humidity | 5% to 95% (non-condensing) | ||
ESD | ± 14kV (air discharge), ±8kV (direct discharge) | ||
Drop | 1.5m | ||
Sealing | IP54 | ||
Certifications | FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC | ||
Environmental | Cable | USB | Used to connecttoa host device |
RS-232 | Used to connectto a host device | ||
Power Adapter | DC5V adapter to power with RS-232 cable | ||
