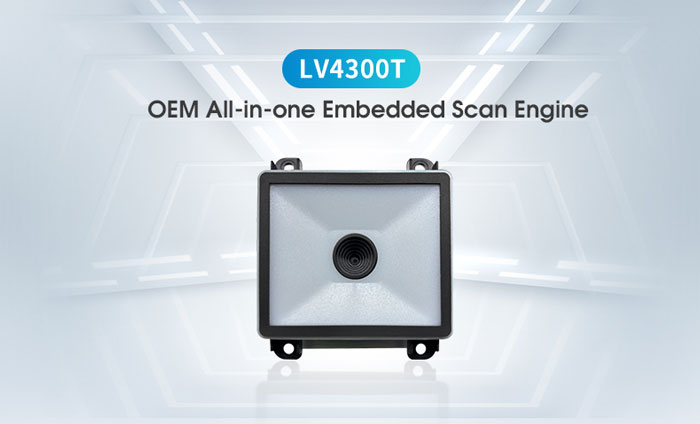

    LV4300T
    The LV4300T is an advanced 2D imager scanner that excels in reading screen codes and paper barcodes with precision.
    The LV4300T is an advanced 2D imager scanner that excels in reading screen codes and paper barcodes with precision. It supports popular symbologies like QR Code, Aztec, Hanxin, and Data Matrix, along with all major 1D barcodes. With a typical depth of field ranging from 30mm to 220mm, this scanner is perfect for contactless payment systems and self-service terminals. Its high-speed decoding and low error rate ensure efficient operations in high-traffic environments. Integrate the LV4300T into your next-generation devices for a seamless user experience.

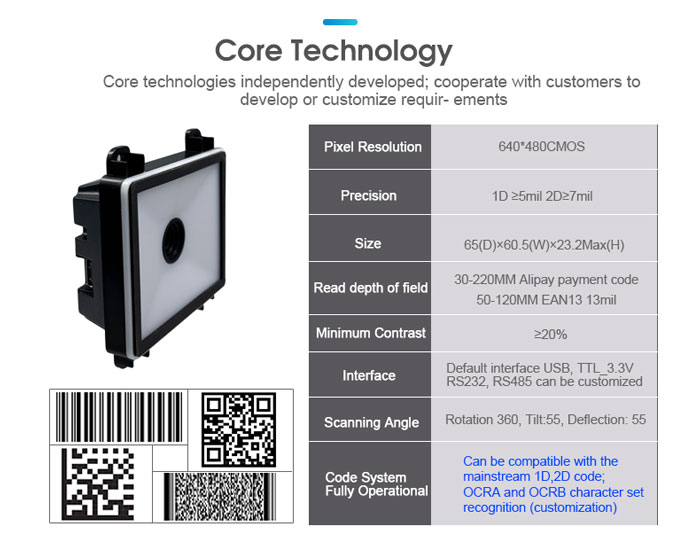

    Parameters of  OEM Barcode Scanning Module

    Scan Performance

    lmage Sensor

    640x480 CMOS

    Lighting

    White. LED 6500K

    Read the Code

    2D

    1D

    PDF417, Data Matrix, QR Code, HanXin,AZTEC,maxicode

    EAN- 13, EAN-8, UPC-A, UPC-E, Code 39,Code 128, ISBN, Code93,

    Code 11, UCC/EAN- 128, GS1 Databar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Standard 2 of 5, MSI-Plessey, GS1 composite code, etc

    Reading Accuracy

    1D≥5mil  2D≥7mil

    Typical Reading Depth of Field

    30-220MM Alipay payment code

    50- 120MMEAN13 13mil

    Contrast of symbols

    20%

    Barcode Sensitivity

    Tilt ±55°, deflection ±55°, rotation 360°

    Field Angle

    Horizontal 66°, vertical 50°

    Machinery Electrical Parameters

    Communication Interface

    USB (optional, HID, virtual serial port), TTL serial port;RS232, RS485 customizable

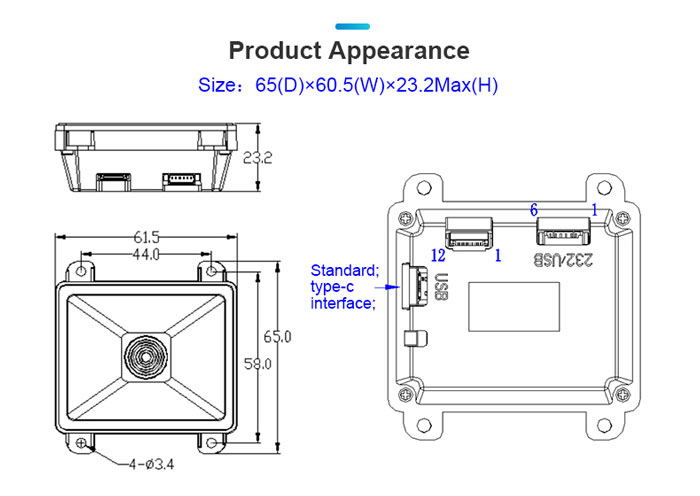

    Dimensions (mm)

    65(D)×60.5(W)×23.2Max(H)

    Weight

    30g

    Working Voltage

    Power supply 1:4.5V-5.5V (default)

    Power supply 2:3.3V- 3.6V(customized)

    Power supply 3:4.5V- 16V (customized)

    Rated Current

    (typical value) less than 150mA (5V input)

    Enviromental Parameter

    Working Temperature

    -20℃~+60℃

    Storage Temperature

    -40℃~+70℃

    Working Humidity

    5%~95%(no condensation)

    Environmental Light

    0~100,000LUX

    Heat Shock Resistance

    Maximum Temperature

    60°C(140°F)

    Minimum Temperature

    -20°C (-4°F)

    Cycle Index

    30 minutes for high temperature: 30 minutes for lowtemperature

    Period

    24
