RK410 High-Accuracy Fixed Mount Industrial Barcode Scanner

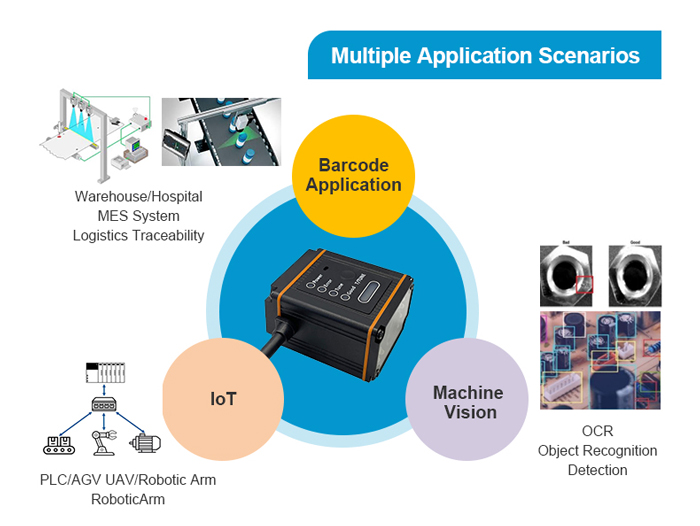

The RK410 Industrial Fixed-Mount Barcode Scanner is a rugged, high-performance solution engineered for demanding environments like factory automation, kiosk logistics, and manufacturing. Featuring auto-tuning technology and configurable focus adjustment, this scanner ensures optimal accuracy across diverse barcode types, including challenging DPM codes. Its IP65-rated aluminum alloy housing withstands drops up to 1.5 meters and harsh industrial conditions, while 14 red/white LEDs adapt to low-light or reflective surfaces.

With multiple interfaces (USB, RS232, Ethernet) and external trigger/Good/NG signal support, the RK410 integrates seamlessly into automated workflows. The ARM Cortex-A7 CPU and MIPI interface deliver rapid decoding speeds, and its 30° horizontal/33° vertical FOV captures wide-angle scans efficiently. Ideal for industries prioritizing durability, precision, and flexibility.

Keyword-Rich Product Content
The RK410 Industrial-Grade Fixed Scanner redefines reliability for harsh environment barcode scanning. Designed for factory automation and logistics kiosks, its 1.3MP high-resolution sensor (1080x1280) captures crisp 1D/2D codes, even damaged or poorly printed labels.



Key Features:
- Auto-Tuning Technology: Optimize scanning speed and accuracy with a single button press, backed by intuitive LED indicators.

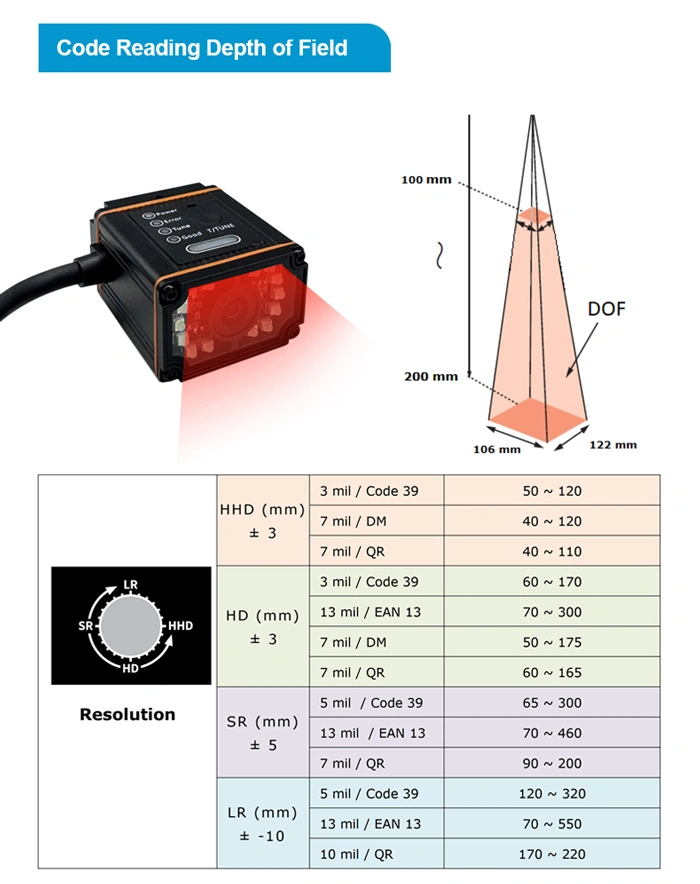

- Configurable Focus: Adjust scanning distance (100mm–500mm) via a mechanical knob for precision in varied applications.
- Industrial DPM Algorithms: Decode Direct Part Marking (DPM) codes on metal, plastic, or glass surfaces.
- Multiple Trigger Modes: Choose auto-sensing, continuous scan, or external trigger for seamless integration.
- Drop Resistance & IP65 Rating: Built to survive dust, water jets, and 1.5m falls, ensuring longevity in rugged settings.


Optimized Features List
1. High-Accuracy Scanning: 1.3MP sensor (1080x1280 resolution) with industrial DPM algorithms for damaged, curved, or low-contrast barcodes.

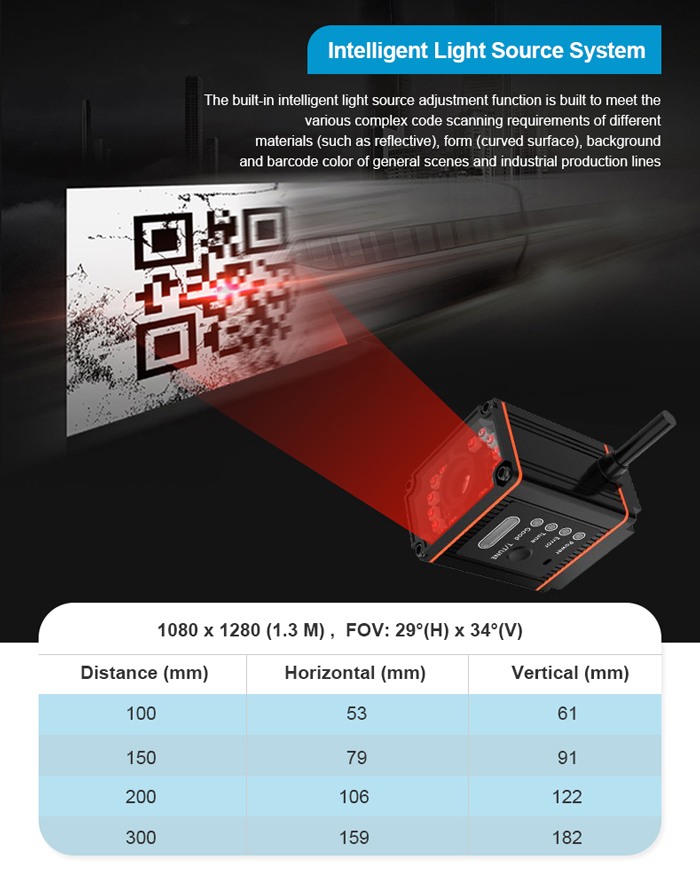

2. Adaptive Illumination: 14 red/white LEDs adjust brightness for optimal readability in dark or reflective environments.
3. Rugged IP65 Design: Aluminum alloy housing resists corrosion, drops, and harsh conditions like dust/water exposure.
4. Auto-Tuning & Focus Control: Tune scanning parameters on-the-fly and adjust focal distance (100mm–500mm) via mechanical knob.
5. Wide-Angle FOV: 30° horizontal / 33° vertical field of view for broad coverage in tight spaces.
6. Fast Processing: ARM Cortex-A7 1.2GHz CPU with MIPI interface ensures rapid decoding and low latency.
7. Multi-Interface Support: USB, RS232, Ethernet, and GPIO connectivity for flexible system integration.


Parameters of Stationary Industrial Scanners

Performance   Characteristics	Image Sensor	1 0 8 0 x 1 2 8 0 ( 1 . 3 M )
	Field of View	29 ° ( H ) x  34 ° ( V )
	Light Source	Red  LED
	Aiming	650 nm  Laser
	Resolution	HHD		LR
		1D : ≥3 mil ; 2D : ≥7 mil		1D : ≥5 mil ; 2D : ≥10 mil
	Decode Capabilities	1D	UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 ,Code 93 , Code 32 ,Code11 , Codabar , Plessey , MSI ,Interleaved 2 of 5 , IATA 2 of 5 , Hong Kong 2 of 5 ,  USPS Intelligent Mail , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C
		2D	PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code

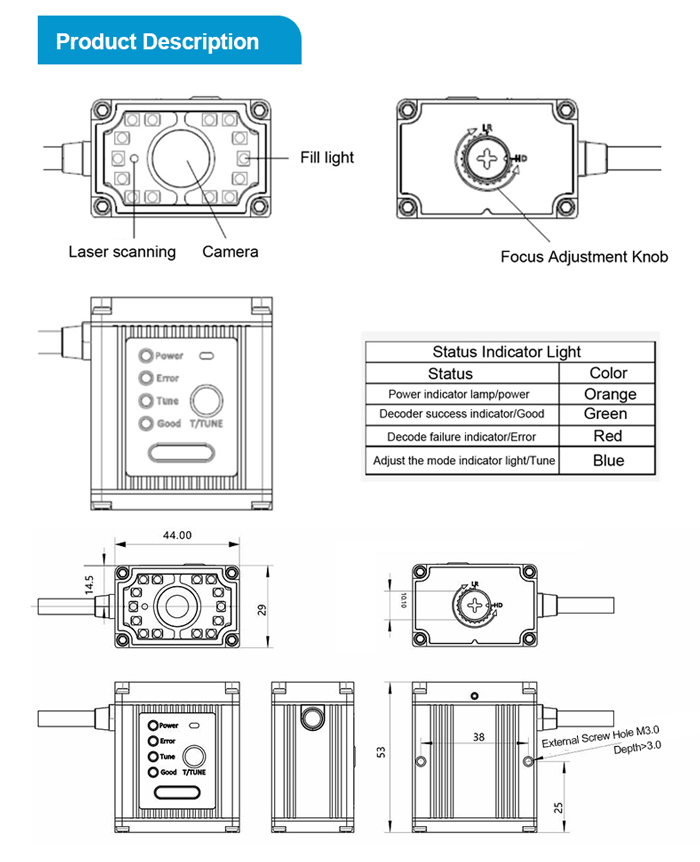

Physical Characteristics	Dimension (mm)	44（W）× 53（D）× 29（H）
	Weight	About 125g, without other accessories

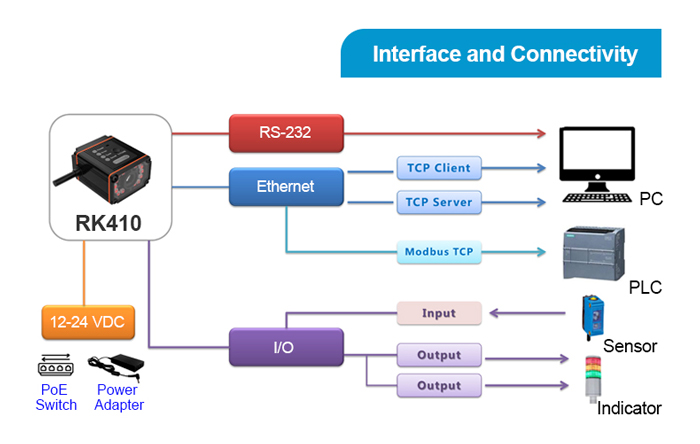

	Interfaces	Ethernet(TCP client/TCP server/Modbus TCP),RS232
	Input Voltage	12 - 2 4 VDC
	Output Signal	1 Op to - isolated Input  ( NPN / PNP / Relay )
	Input Signals	2 Op to - isolated output（Good; NG ）
	Sealing	IP 65
Reliability	Storage temperature	-40℃~+70℃
	Operating    temperature	-10℃~+50℃
	Relative humidity	5%-95% （ no condensation ）
	Static Protection	±12KV (air discharge), ±8KV (direct discharge)
	Drop height	1.5 meters to concrete floor
