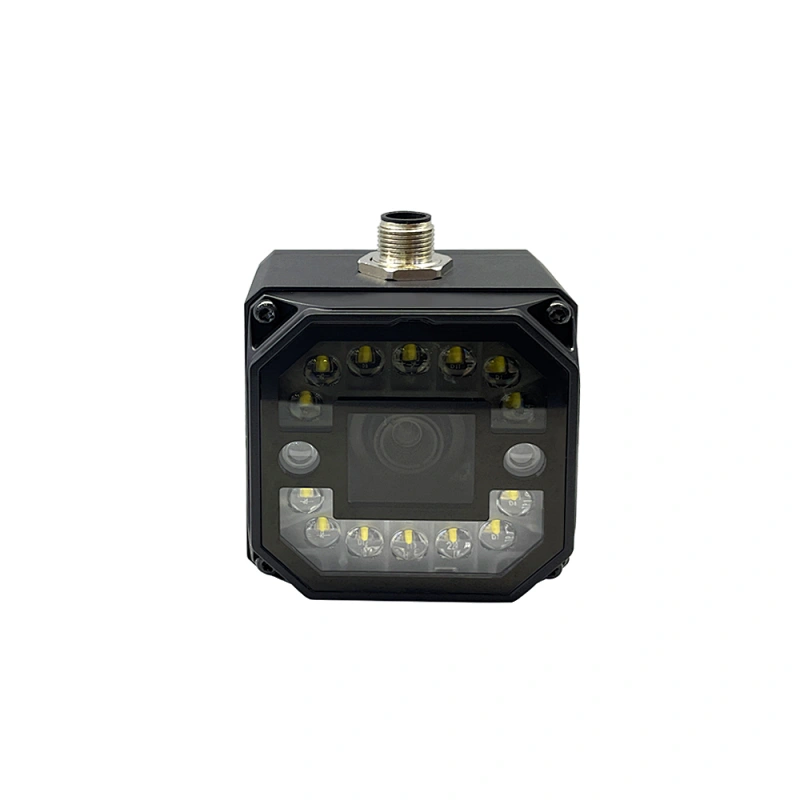

    R1 Series Industrial 2D Barcode Scanner
    Engineered for precision in harsh environments, the R1 industrial fixed-mount barcode reader delivers high-speed 60 fps decoding across 30+ symbologies including QR/DM/PDF417. Powered by proprietary AI vision algorithms, this industrial barcode scanner achieves 99.98% read rates on damaged/curved/low-contrast codes - ideal for demanding applications in automotive manufacturing, pharmaceutical packaging, and electronics assembly lines.

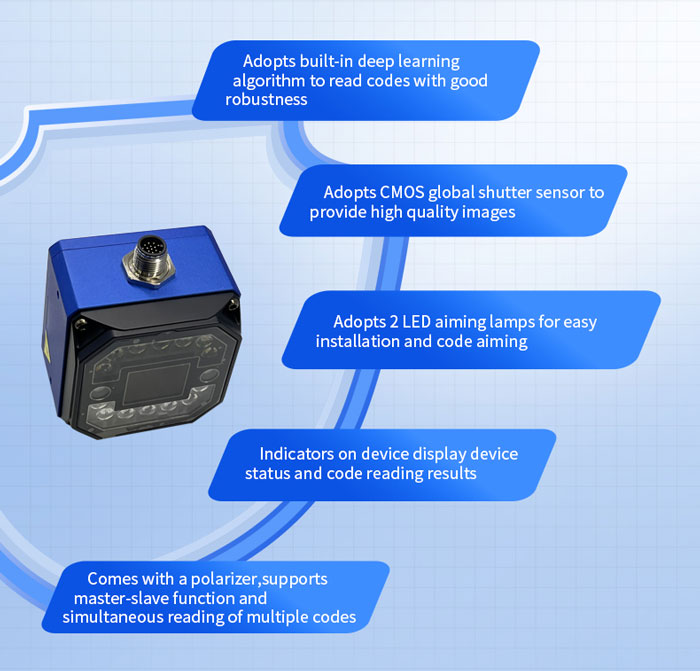

    Key Features
    ** Industrial-Grade AI Vision
    Patented deep learning architecture adapts to challenging conditions: glare, motion blur, and degraded codes
    ** 4K CMOS Imaging System
    1.6MP global shutter sensor captures 1600×1200 resolution at 0.1ms exposure - optimized for high-speed conveyor systems
    ** Smart Lighting Configuration
    14-LED adaptive illumination with polarization filters (0°-90° adjustable) ensures optimal contrast on reflective/metal surfaces
    ** Enterprise Connectivity
    Dual Ethernet (PoE+ supported) + RS-232 + 8x GPIO ports with PROFINET/EtherCAT protocols
    ** Intelligent Status Monitoring
    Multi-color HMI indicator (green/amber/red) provides real-time feedback on:
    - Power/network status
    - Decode success/failure
    - System health diagnostics
    ** Tool-Free Installation
    Integrated crosshair laser targeting with IP67-rated housing enables rapid deployment in washdown/SMD environments

    Industry Applications
    • Automated parts tracking (VIN/UDI scanning)
    • Food & pharma serialization compliance
    • PCB component verification
    • Logistics sorting systems


    Industrial DPM Scanner Parameters

    Model

    R1 Series

    Image Sensor

    1280 × 1024  CMOS

    Performance  Characteristics

    Decode Capabilities

    1D：Code 39, Code 93, Code 128, Code Bar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25,Matrix 25, MSI, China Post, Code 11 and Industrial 25

    2D: QR Code, Data Matrix, PDF 417

    Max. Frame Rate

    60 fps

    Max. Reading Speed

    80 codes/sec

    Sensor Type

    CMOS ，global shutter  3.2 µm × 3.2 µm

    Pixel Size

    3.45 µm×3.45 µm

    Sensor Size

    1/2.9”

    Exposure Time

    16 μs ~ 1 sec

    Gain

    0 ~ 40 dB

    Resolution

    1D 3mil;    2D 5mil

    Communication   Protocol

    Smart SDK，TCP Client ，Serial， FTP ，TCP Server， Profinet， MELSEC， Ethernet/ IP， ModBus， Fins ，SLMP

    Electrical  Feature

     Interface

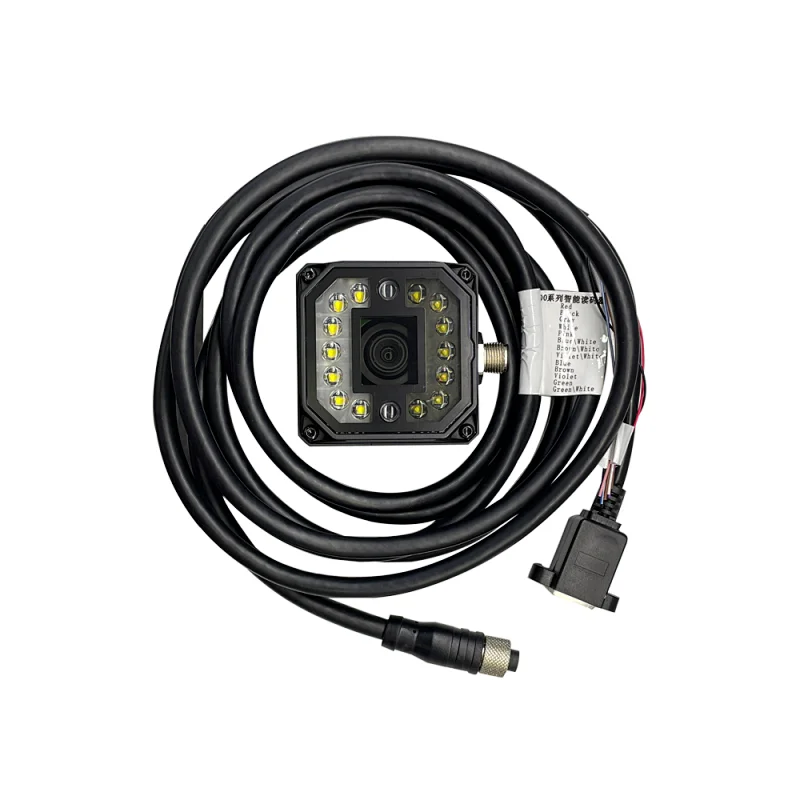

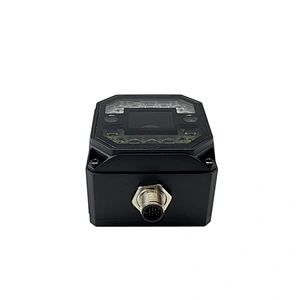

    17-pin M12 connector provides power and I/O, including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

    Data Interface

    Fast Ethernet（ 100 Mbit/s）

    Digital l/O

    Including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

    Power  Supply

    12 ~ 24 VDC

    Max. Power Consumption

    20 W@24 VDC（ (light source enabled)）

    User Environment

    Typical Depth of Field

    06mm： 46*38；   12mm： 24*20；15mm： 20*16

    Lens Interface

    M12-mount ，Manual focus

    Fill Light

    6 independent control channels, totaling 14 white lights, half with polarizing lens cover

    Light Source

    Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light

    Indicator Light

    Power indicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG)

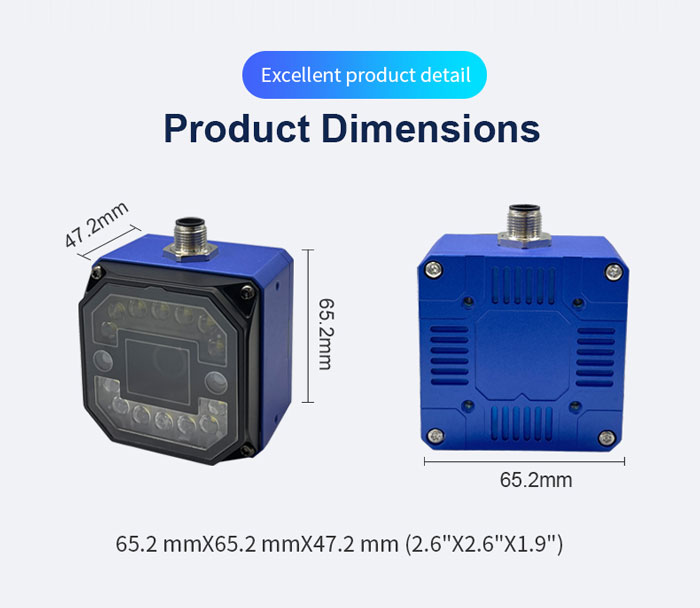

    Dimension

    65.2 mm×65.2mm×47.2mm

    Weight

    Approx. 280 g (0.6 lb.)

    Seal

    IP67

    Operating  Temp.

    0℃~+50℃

    Storage  Temp.

    -30℃~+70℃

    Humidity

    20% to 95% RH,non-condensing

    Regulatory

    CE,FCC.RoHS
