QR Code and NFC Bus Ticket Validator

    Quantity:
    Contact Now
    Bus RD300
    RD300: Bus Payment QR/NFC Terminal | 5" Industrial Scanner

     Streamline bus fare collection with the RD300. This robust 5"Android terminal excels at fast 1D/2D barcode & mobile QR payments, plus contactless NFC (MIFARE, ISO14443-A) for cards and phones. Features 4G global connectivity for real-time cloud data.


         Key Features:
    *   Fast 1D/2D/QR Code & Mobile Screen Scanning
    *   13.56MHz NFC for Cards (MIFARE 1K/2K/DesFire) & Phones

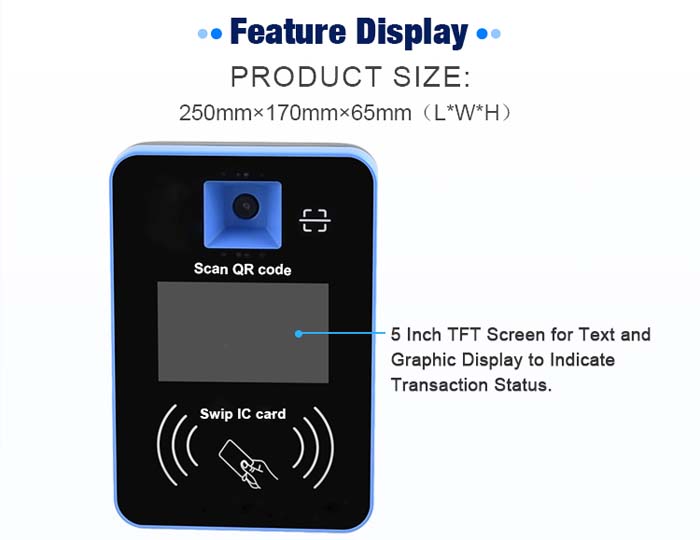

    *   5"HD (1280x720) Touchscreen with Status LED
    *   Quad-Core Processor, Android 5.1, 1+8GB (upgradeable)
    *   Full Netcom 4G/3G/2G + WiFi/BT for Cloud Connectivity
    *   Wide Voltage (9-36V DC) & Temp Range (-20°C to +70°C)


    Parameters of Android Bus Validator Reader

    Items

    Processor

    32 bit ARM, 120MHz

    Memory

    64Kb FRAM. 8Mb+1Gb DataFlash

    Contact less Card Scanning

    1D, 2D barcode payment; support ISO14443 card, CPU card such as Mifare 1 S50/S70, MifarePro, IC card, 13.56 sim card etc.

    Sim

    Support four ISO7816 sim cards

    Voice

    It can store 265 pcs of voice, and the voice can be updated through software and no need to dismount the machine.

    Display

    5 inch TFT color display

    Power

    9V-36V，it has protection for over-voltage, over-current, converse connection, under-voltage.

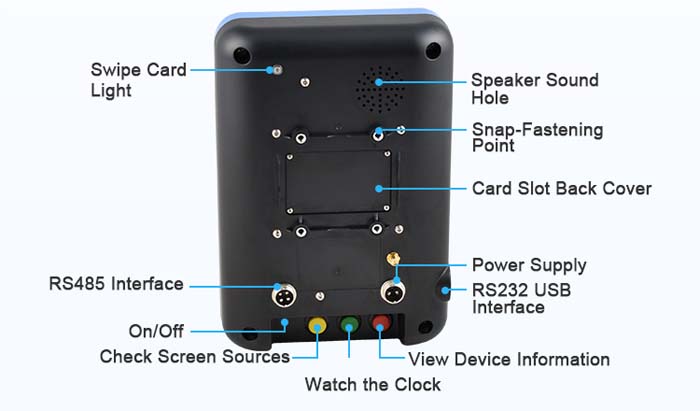

    Interface

    RS232, RS485

    Wireless Communication (optional)

    TDD-2TG/FDD-LTE/wcomA/TD-SCDMA/GSM/GPRS/

    EDGE/WIFI/zigbee
