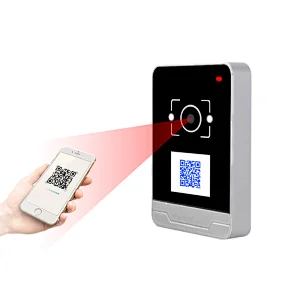

4G QR Code Access Control System

RD009 adopts data memory and ferro electric memory, even if the device suddenly loses power, data will not be lost, ensuring data security;The product comes with a voice amplifier and speaker, the voice of common in and out events can be set, can control the playback of nearly 150 voices, can customize the voice, and can expand the TTS voice function.

Features of Door Access System
* Encrypted QR code that complies with the agreed rules can open the door/gate directly when it is not connected to the Internet.
* The network transmission standard is wired network port RJ45 10/100M, WIFI, full Netcom 4G for data transmission
* Equipment capacity: the card capacity is 85,000 cards and 100,000 records, the number of QR codes is 100,000 times, and the records are over-capacity and automatically cyclically covered.
*It can be expanded and installed with Bluetooth module, LORA module, RS232/RS485 module functions, making the product application network communication more flexible.

Parameters of Gate Access Control

Component Parameters

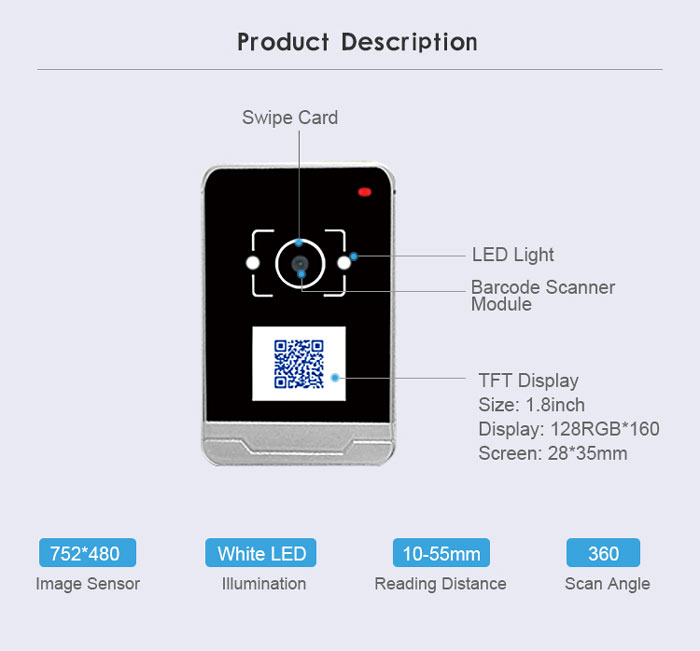

Image Sensor	752X480
Recognition Lighting	White light LED
QR Code Recognition	QR CODE, DATA MATRIX and other formats, support mobile phone mirror recognition and paper recognition
One-dimensional Code Recognition	CODE 128, Code39, UCC/EAN-128, AIM-128, EAN-8 and other format recognition;
Recognition Distance	10-55mm;
4GNetworkParameters
Communication System	Communication System: 4G full Netcom
Applicable Frequency Band	LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41
General Characteristics	3GPP E-UTRA Release 13 Bandwidth 1.4/3/5/10/20MHz
Transmitting Power	LTE-TDD Class3 (23dBm+1/-3dmB) LTE-FDD Class3 (23dBm+1/-2dmB)
LTD Feature	Support Cat.1; Support VoLTE Support 1.4-20MHz RF bandwidth LTE-TDD Maximum uplink rate 4Mbps, maximum downlink rate 8Mbps LTE-FDD Maximum uplink rate 5Mbps, maximum downlink rate 10Mbps
Network Protocol Features	support TCP/UDP/PPP/FTP/HTTP/HTTPS/FTPS/MQTT
Electrical Parameters
Power Input	5-28VDC
Working Current	<500mA (Note: Electric lock current is not included)
Relay Output	Relay DC30V/3A, 250VAC/3A
Interface Protection	All input and output interfaces have overcurrent and overvoltage protection

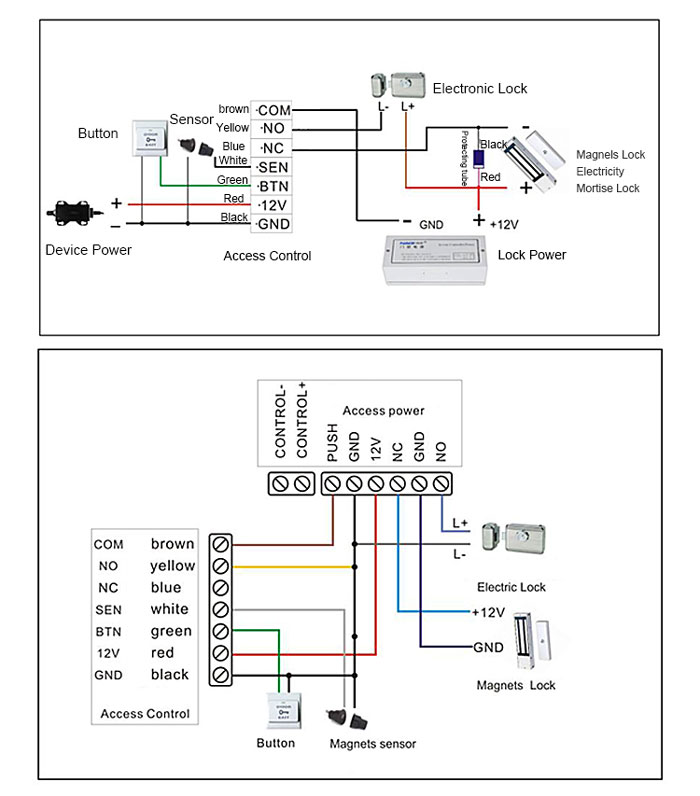

Door Lock Output	1 way, relay capacity DC30V/3A
Door Sensor Input	1 way
Button Input	1 way
Communication Transmission	RJ45 network port, wireless 4G full Netcom (Telecom, China Mobile, China Unicom, support eSIM card)
Voice Output	Built-in amplifier speaker, customizable voice, and extendable TTS voice

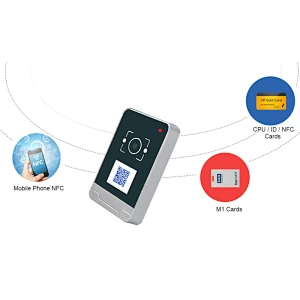

Card-reading Attributes	Support RFID card reading, card sector reading and writing, anti-copy CPU card reading and writing
Other Parameters

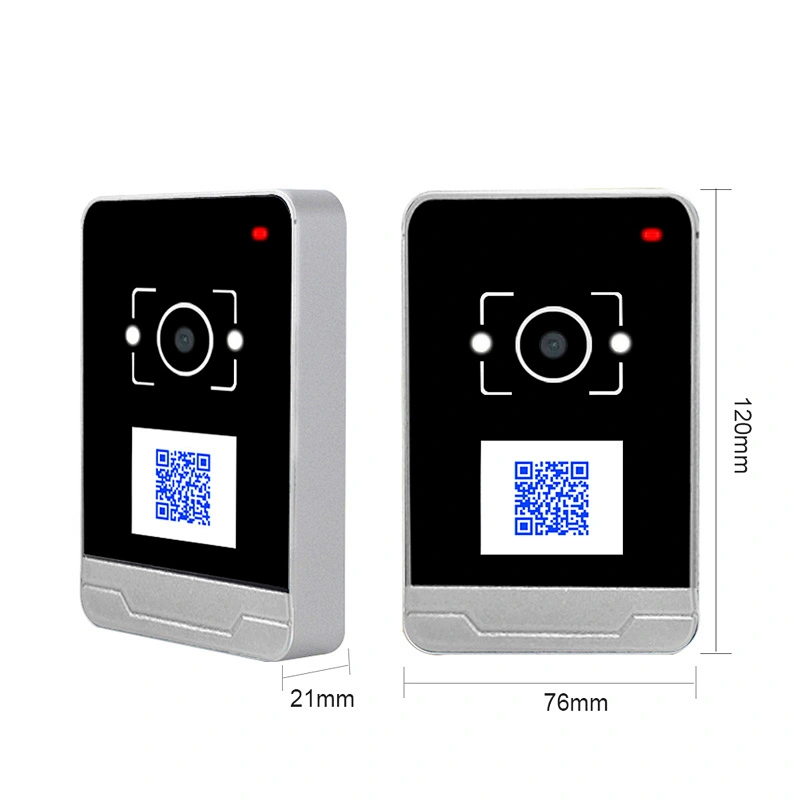

Installation size	120mm *76mm * 25mm (height * width * thickness), compatible with standard 86 box installation size
Working environment	Temperatureand humidity 5%~95%, temperature -30℃~65℃
Weight	200g
