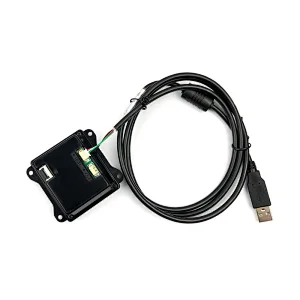

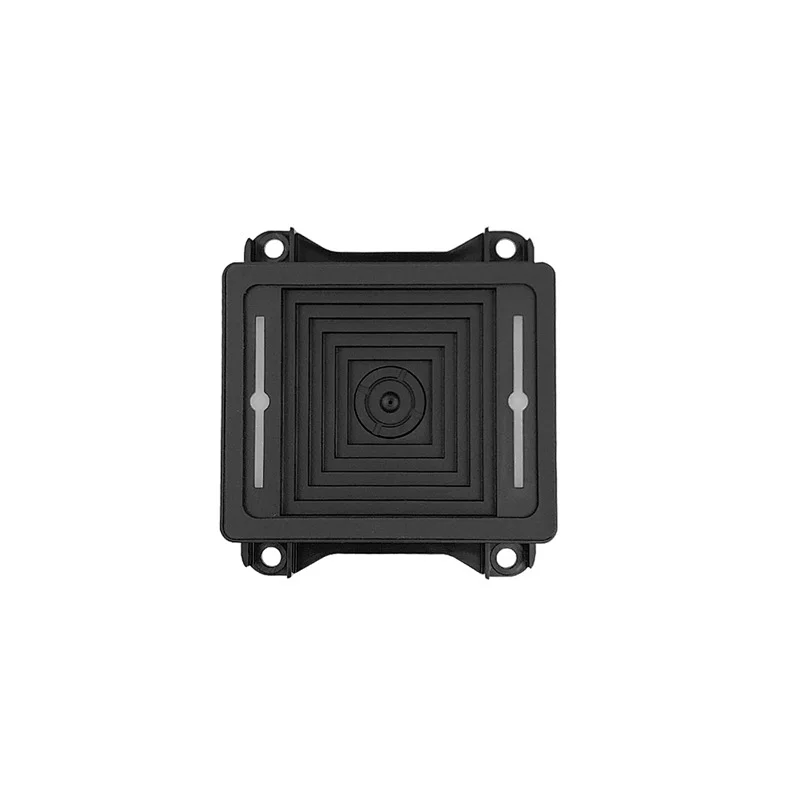

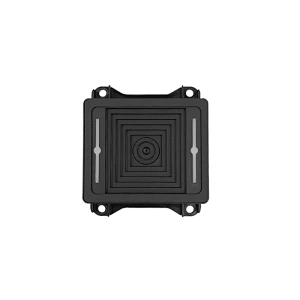

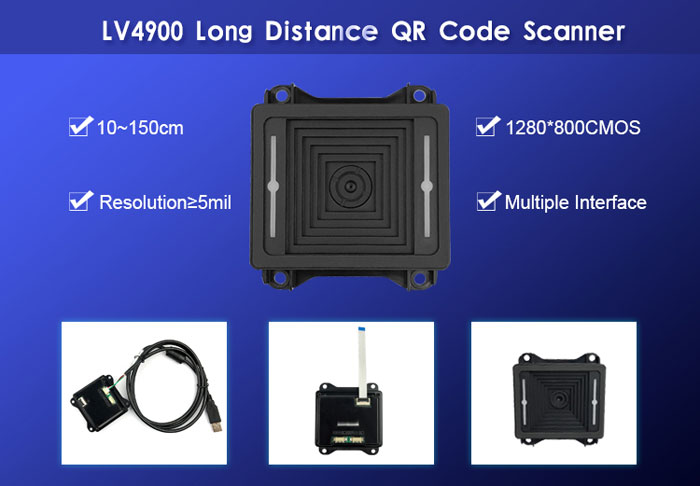

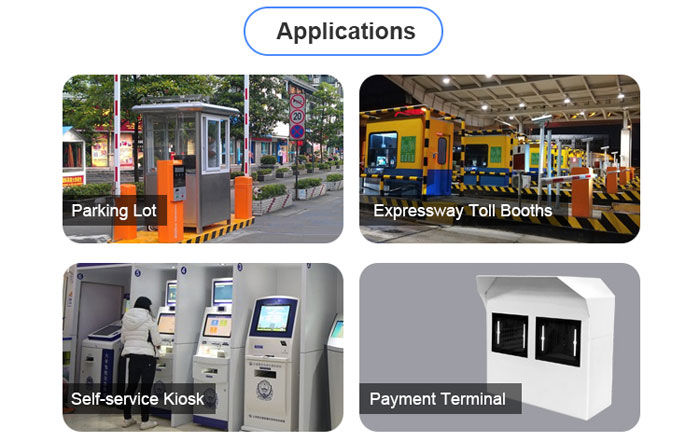

LV4900 is bar code scanner engine that can be embedded into any device and also can plug and play. RD4900 QR Code Reader is good at reading both printed and mobile phone screen 1D 2D bar codes. And it has feature that Industrial Design, Instant Reading and decoding , high sensitivity and Durable enclosure. All its features that decide its wide usage, such as Self-service Kiosk, Payment Terminal, Turnstile, Parking Meter, access control system, ATM, etc. Packing Lot is just one case that it apply mostly.
Features of OEM Scanner Module
*Snappy On-Screen Barcode Capture

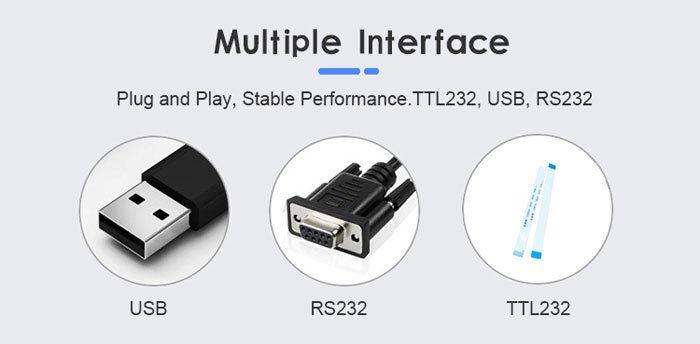

* USB and RS232 Multiple Interfaces
*Outstanding Power Efficiency

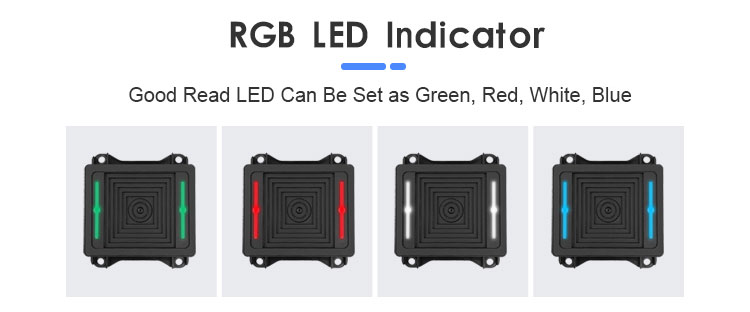

*RGB LED Indicators
*Long Distance Scan 10cm-190cm
Parameters of QR Code Scanner
Product Name | Long Distance Mobile Payment QR Scanner | ||
Performance | Image Sensor | 1280 * 800 CMOS | |
Light Source | White LED | ||
Indicator Light | Various colors are adjustable (default Alipay blue, WeChat green, other red) | ||
Decoding Successful Prompt | Buzzer Output, Adjustable Sound | ||
Symbologies | 2D | QR Code | |
1D | Code 128 | ||
Resolution | ≥5mil | ||
Typical Depth of Field （Mobile payment code） | Alipay | 20mm-1500mm | |
20mm-1500mm | |||
Symbol Contrast | 30% | ||
Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±45° | ||
Field of View | Horizontal 40.4°, Vertical 25.9° | ||
Mechanical | Interface | RS-232, USB | |
Electrical | Power Adapter | 5V power adapter, with data cable to power the device | |

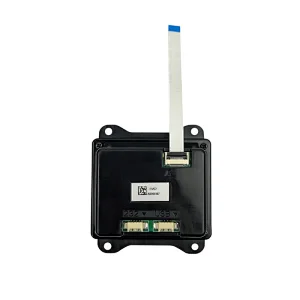

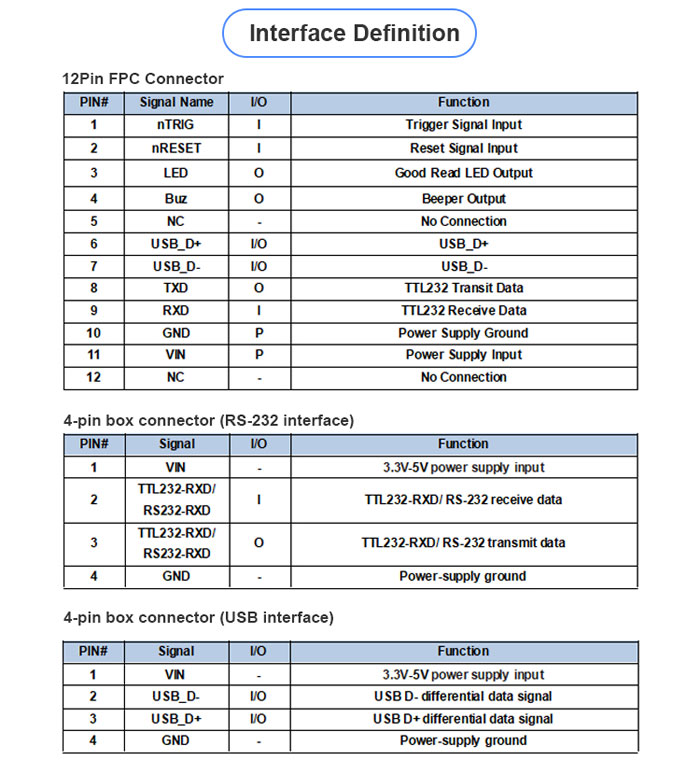

Operating Voltage | 12 pin FPC horizontal socket: 3.3-5 VDC±5% | ||
4 pin DuPont socket USB interface: 3.3-5 VDC±5% | |||

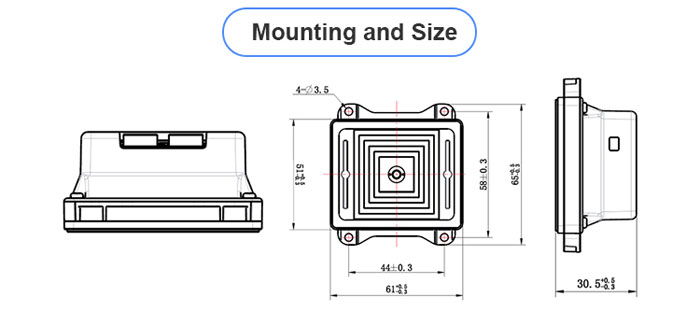

Dimensions | 6.5(W)×10-16.5(D)×14-17(H)cm(max.) | ||
Weight | 2KG | ||
Environmental | Operating Temperature | -40℃~+70℃ | |
Storage Temperature | -40℃~+80℃ | ||
Humidity | 5%~95% (non-condensing) | ||
Ambient Light | 0~100000lux (natural light) | ||

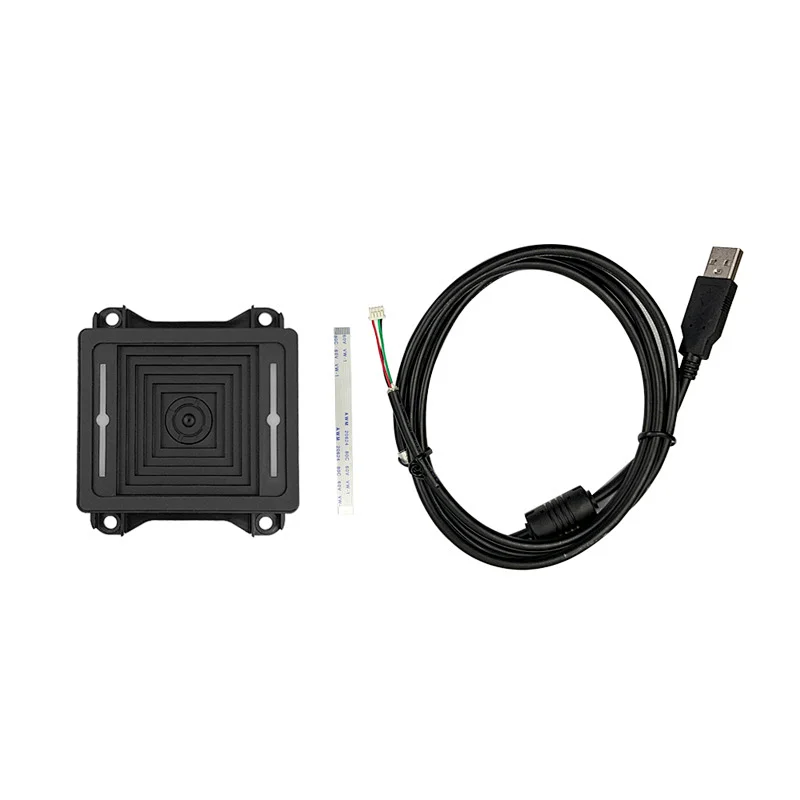

Accessories | Cable | USB Used to connect a host device. RS232 Used to connect a host device. | |
