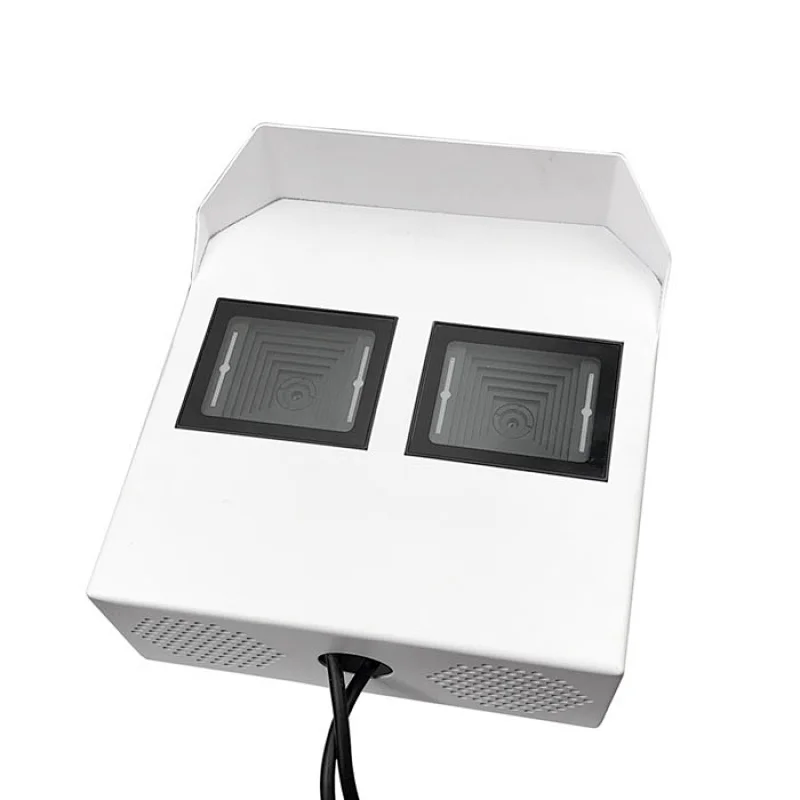

2D Fixed Mount Barcode Mobile Payment System
- Model NO.:
- LV4700
- Delivery:
Product Features:

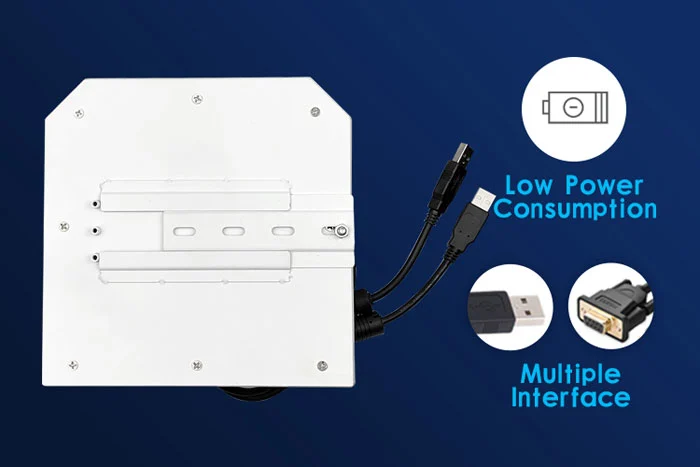

◆Rich Interface
Provide USB and RS232 interfaces to meet more interface requirements.
◆UIMG° Core Technology
Using self-developed sixth-generation UIMe@ core decoding technology, it can quickly read barcodes of various qualities.
◆Green and Low Power Consumption
The use of independent MLDC core technology greatly reduces operating power consumption and prolongs the service life of the equipment.
◆Excellent Screen Reading Ability
Special adjustments are made to screen barcodes, which can adapt to low-brightness and large-data screen barcodes with various types of films.

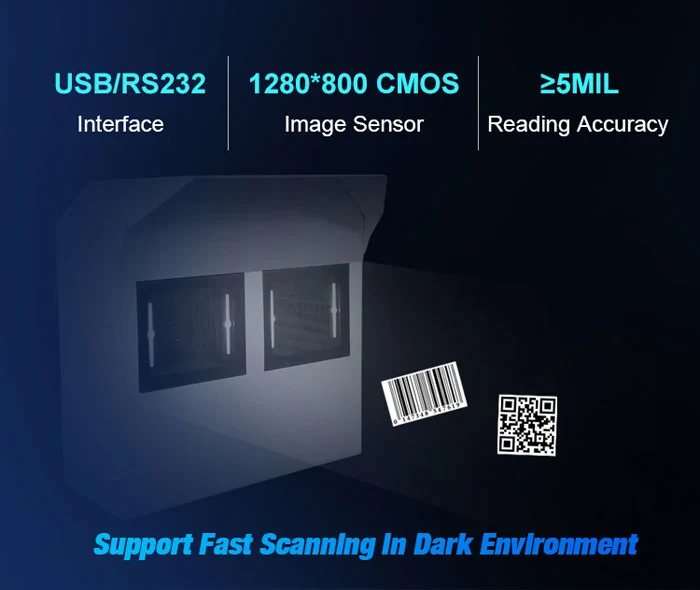

Product Parameters
Product Name | Long Distance Mobile Payment QR Scanner | ||
Performance | Image Sensor | 1280 * 800 CMOS | |
Light Source | White LED | ||
Indicator Light | Various colors are adjustable (default Alipay blue, WeChat green, other red) | ||
Decoding Successful Prompt | Buzzer Output, Adjustable Sound | ||
Symbologies | 2D | QR Code | |
1D | Code 128 | ||
Resolution | ≥5mil | ||
Typical Depth of Field （Mobile payment code） | Alipay | 20mm-1500mm | |
20mm-1500mm | |||
Symbol Contrast | 30% | ||
Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±45° | ||
Field of View | Horizontal 40.4°, Vertical 25.9° | ||
Mechanical | Interface | RS-232, USB | |
Electrical | Power Adapter | 5V power adapter, with data cable to power the device | |
Operating Voltage | 12 pin FPC horizontal socket: 3.3-5 VDC±5% | ||
4 pin DuPont socket USB interface: 3.3-5 VDC±5% | |||

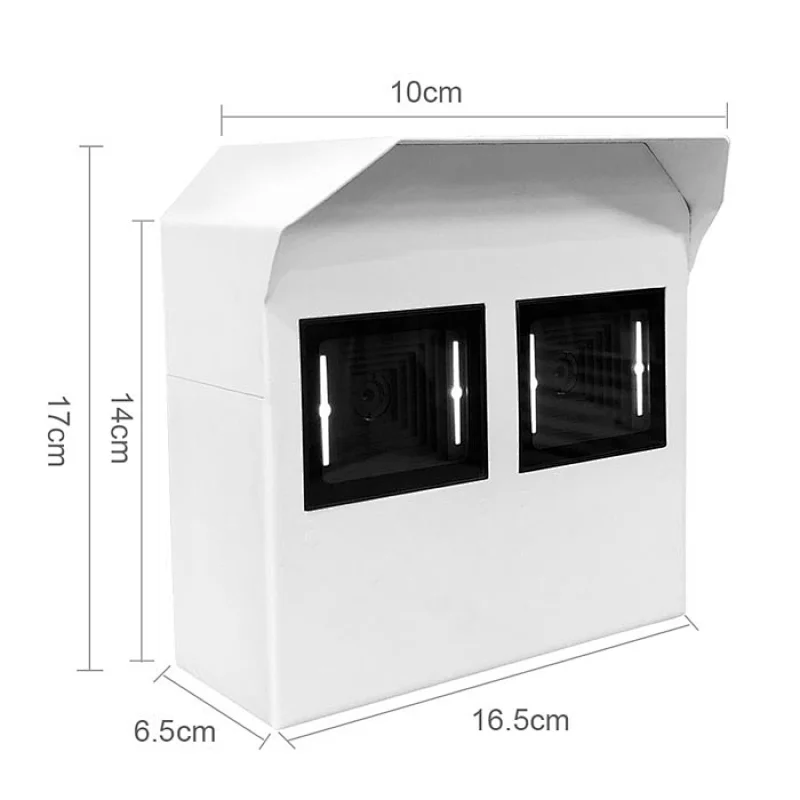

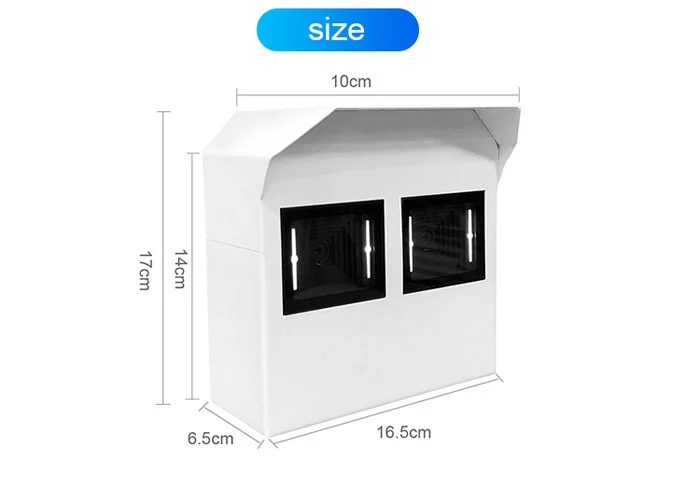

Dimensions | 6.5(W)×10-16.5(D)×14-17(H)cm(max.) | ||
Weight | 2KG | ||
Environmental | Operating Temperature | -40℃~+70℃ | |
Storage Temperature | -40℃~+80℃ | ||
Humidity | 5%~95% (non-condensing) | ||
Ambient Light | 0~100000lux (natural light) | ||
Accessories | Cable | USB Used to connect a host device. RS232 Used to connect a host device. | |
