Model NO.:
LV30
Delivery:

LV30 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine.

Product Parameters:

InterfaceTTL-232, USB (optional)
Image Sensor752×480 CMOS
Symbologies

2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.

IlluminationRed LED 612nm-624nm, 650nm laser
Resolution>3mil
Ambient Light0 ~ 100,000 LUX
Power Consumption0.76 W
Operating Voltage3.3±10% VDC
Current @ 3.3 VDCOperating Current 230 mA

Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)

Sleep Current <5 uA

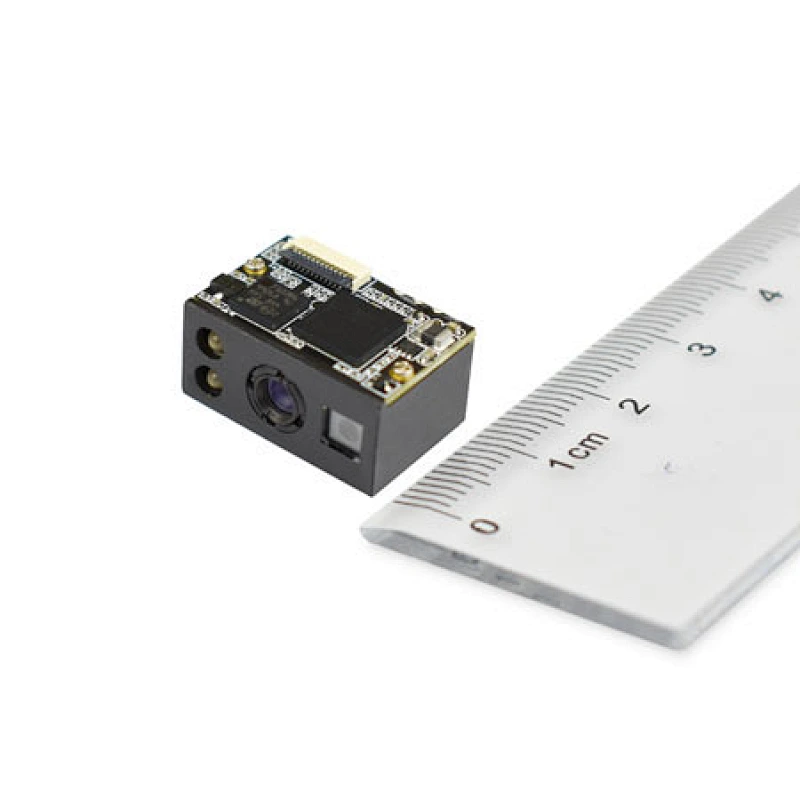

Dimensions21.3(W)×11.6(D)×15.5(H)mm
Weight5.0g
Operating Temperature-20℃~ +60℃

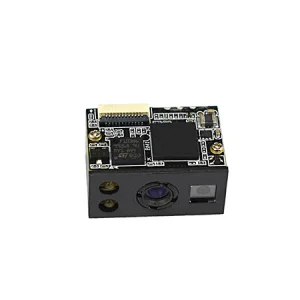

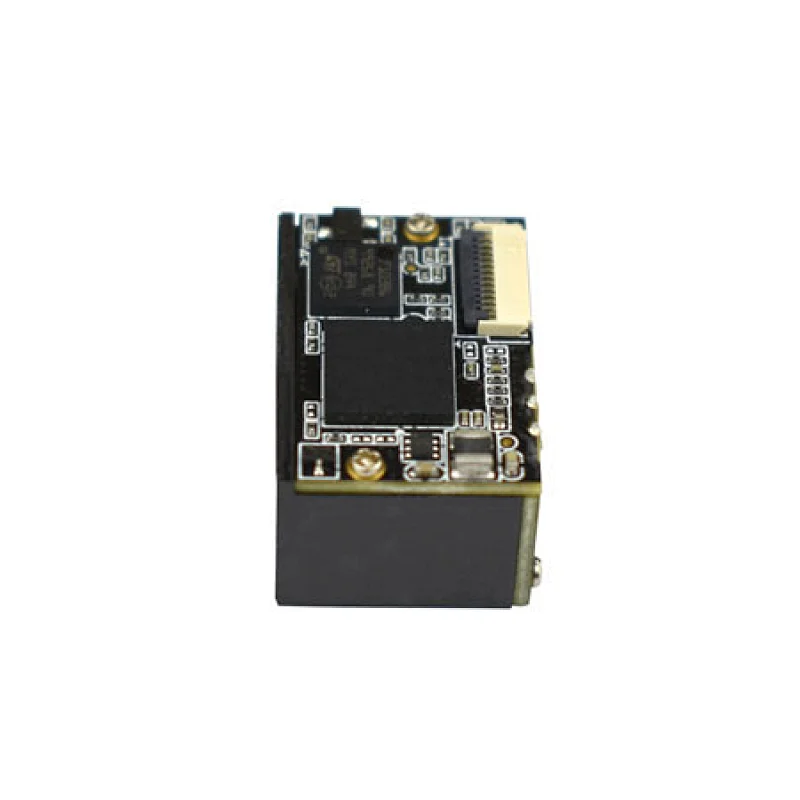

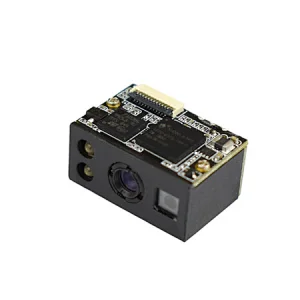

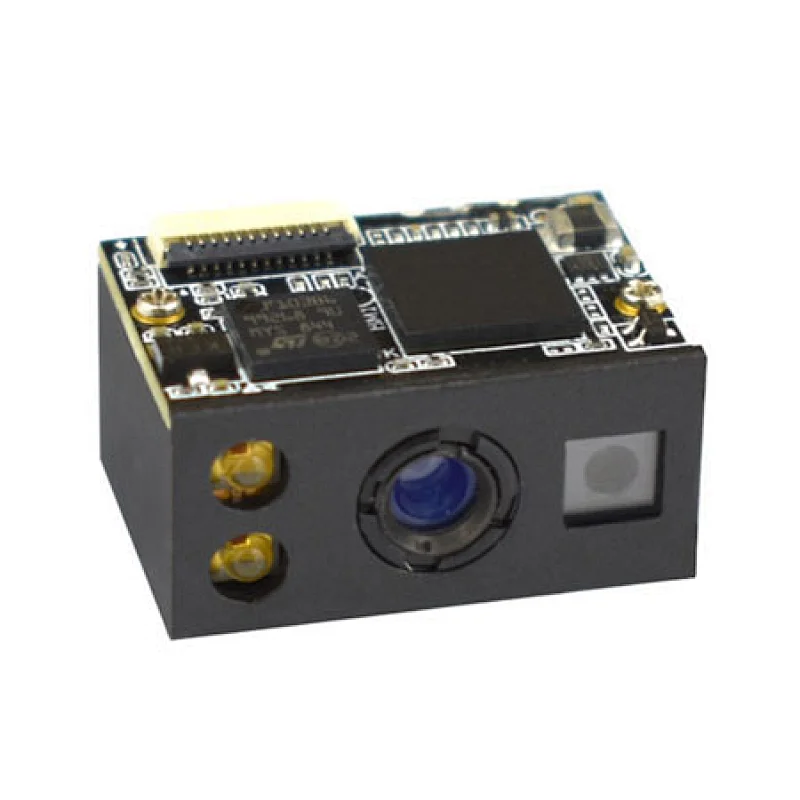

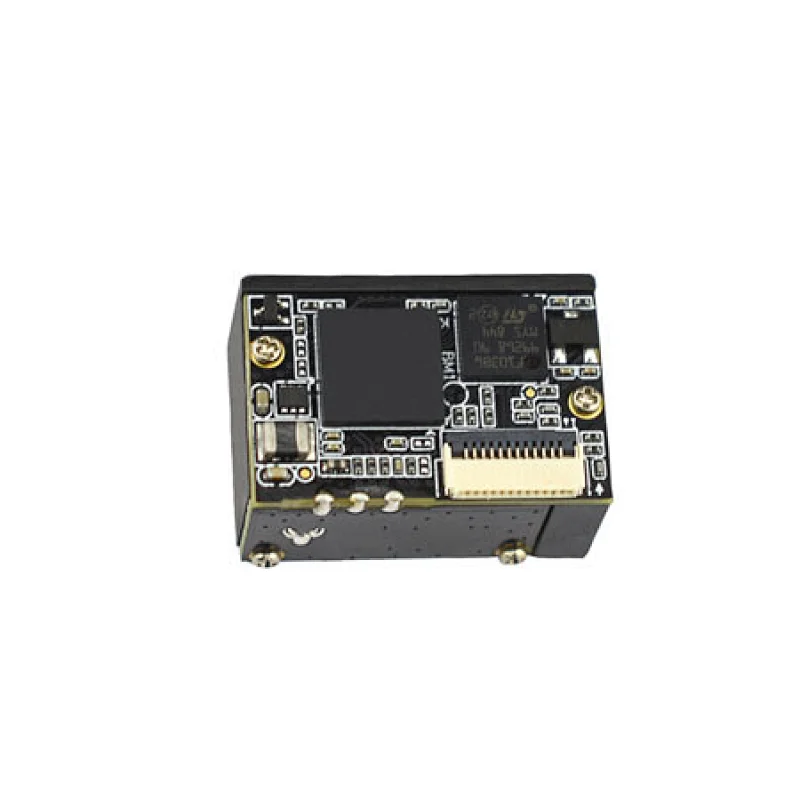

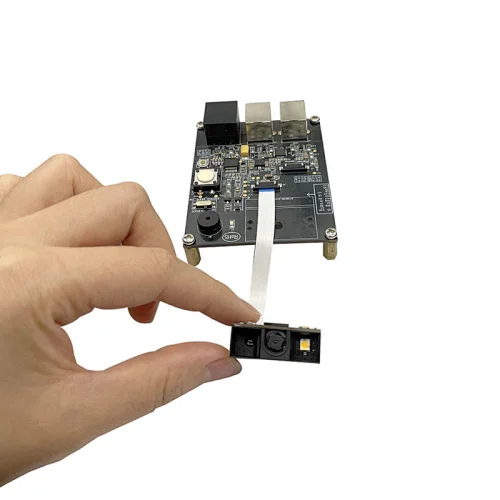

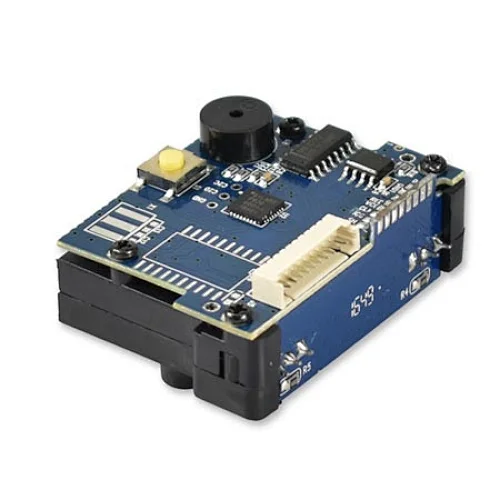

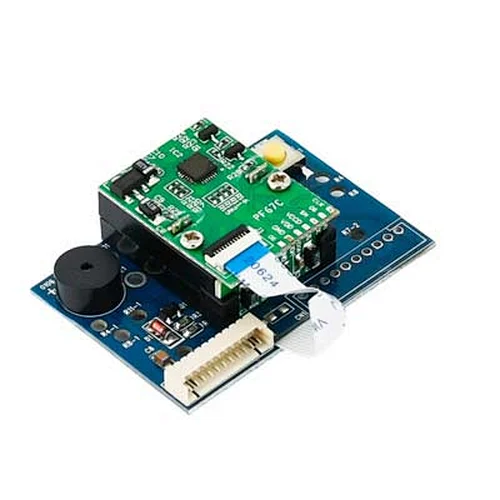

LV30 2D Barcode Scanner Module Details:

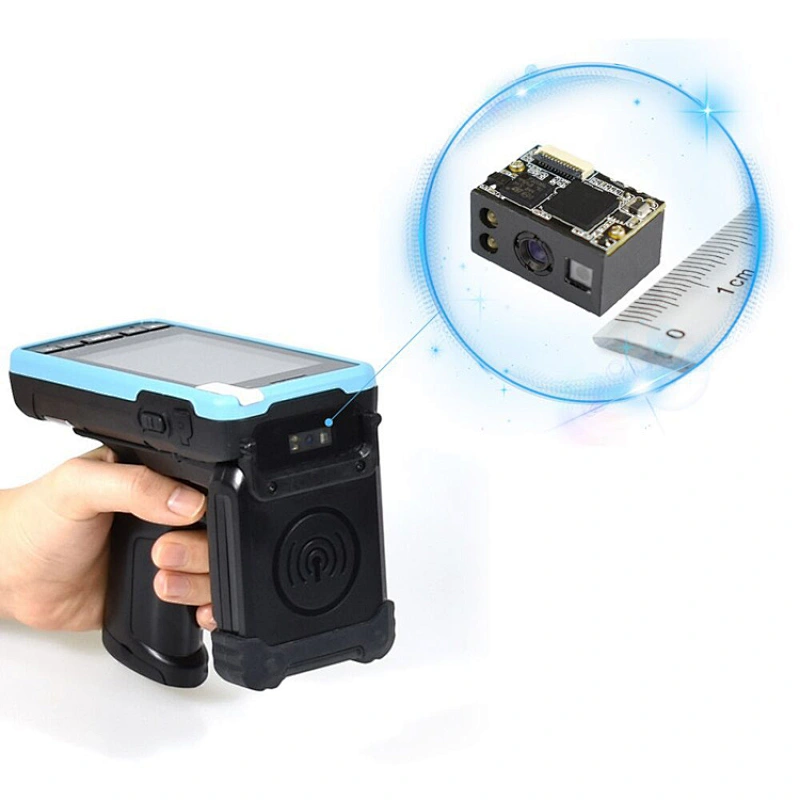

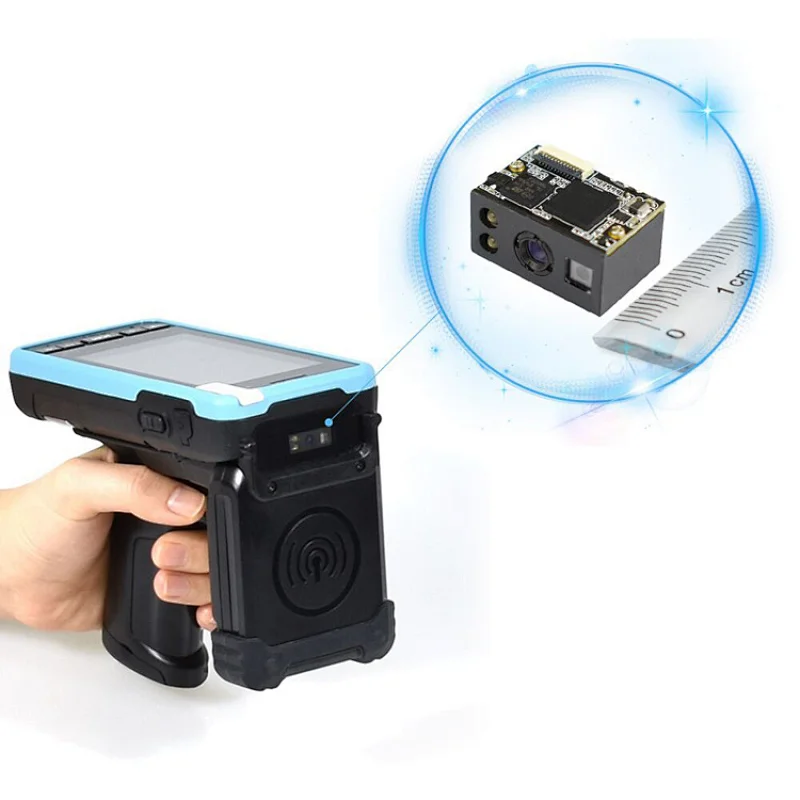

Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould

Confirguring Way:
Rakinda can supply user guide and intergration guide of barcode scanner to help you embed it into device. Confirguring scanner by scanning setting code in user guide
