Model NO.
RD11C
Quantity:

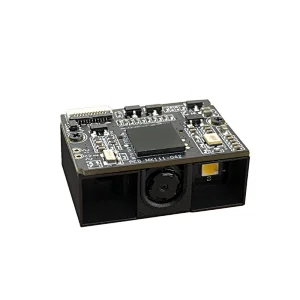

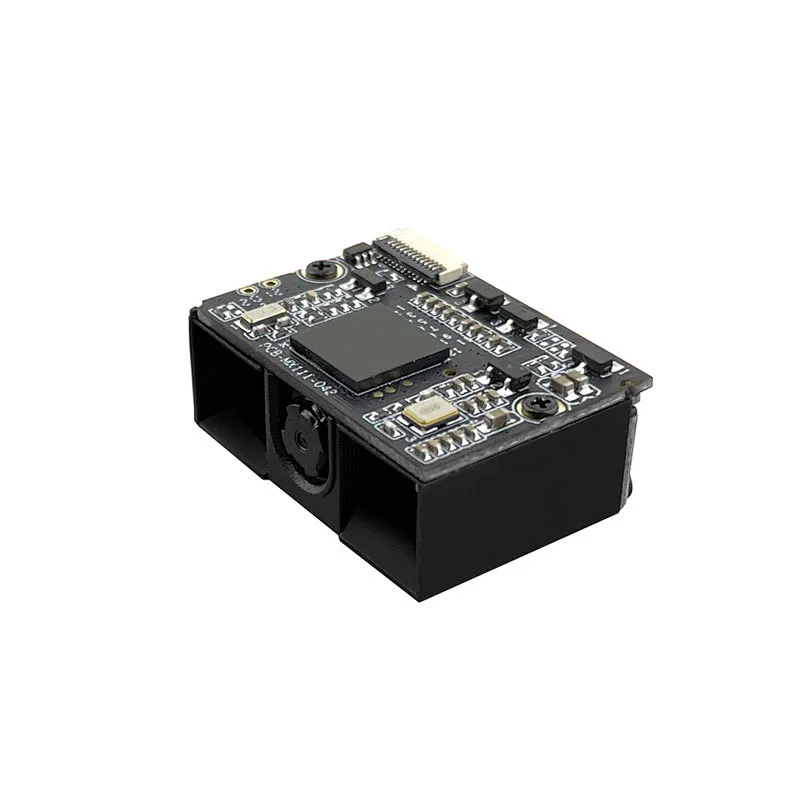

This is a megapixel two-dimensional scanning engine, which has very leading product performance of similar products, and can work stably and uninterrupted for a long time. The integrated development of RD11P is very easy, and the company provides complete development documents. Provides trigger scan working mode, provides LED and Buzzer indication interface, which can almost meet any application of your regular one-dimensional and two-dimensional scanning requirements.

QR Codes Scanner Features:
* High Performance & Ultra-Low Power Consumption:
The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.
* All-in-One Design:
Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most
space-constrained equipment.
* Multiple Interfaces:

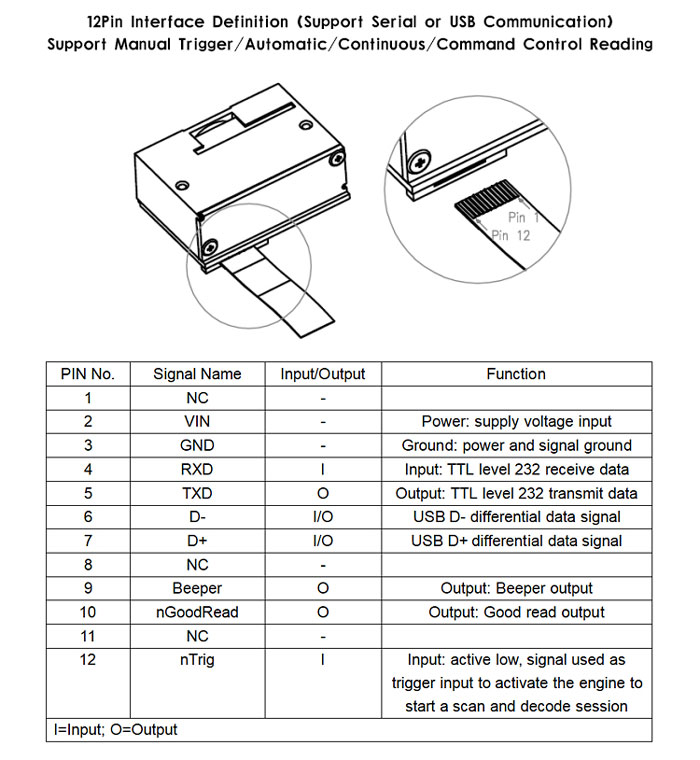

The RD11C support TTL-232 12pin serial communication methods,or USB to meet diverse customer needs.

Parameters of Barcode Scanner Engine

Specification

Optical System

640 pixels(H)x 480 pixels(V)

Illumination Element

Aiming: 617nm LED; Illumination 3200K White LED

Depth of Field

40 mm -280mm@UPCA -13 mil 100 %,PCS90%

Scan Angle

38° (H) x 25° (V)

Min. Bar Width

0.1mm(4mil)@Code 39, PCS=90%

Scan Mode

Trigger mode, Auto-sensing, Continuous scan, Pulse mode

Print Contrast

> 30%(UPC/EAN 100% , PCS 90%)

System Interface

TTL232 (12pin), USB 1.1 (HID KeyboardVirtual COM Port)

Depth of Field

Physical Characteristics

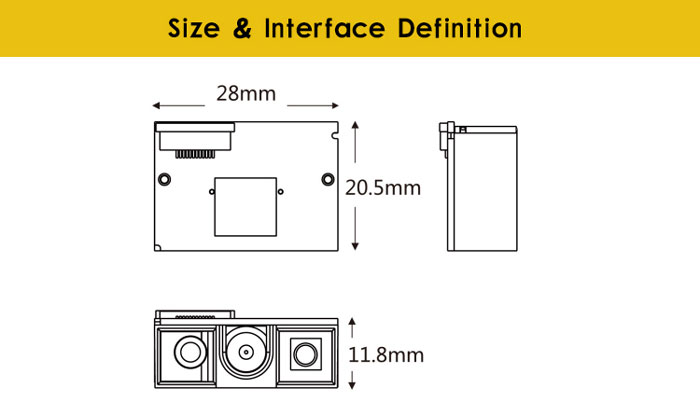

Dimensions

28.2mm x 20.5mm x 11.8mm

Weight

About 5g

Input Voltage

DC 3.3V±5%

Operating Current

130 mA ±5%Typical, 300 mA ±5%Max.

REGULATORY

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environment & Safety

Operating

Temperature

-20~50

Humidity

5%~95% (non-condensing)

Storage

Temperature

-40~+70

Light Level

0~100,000Luxfluorescence

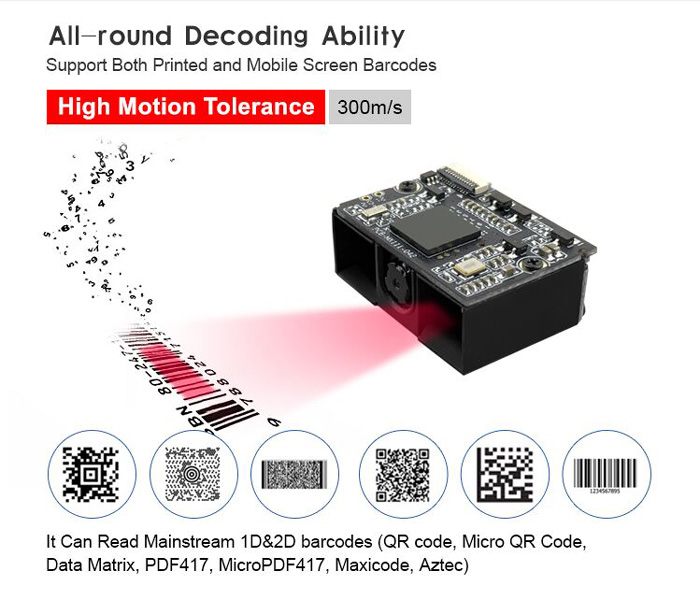

Decoding Capability

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with fullASCII),

Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA

Code,MSI/Plessy,ChinaPostalCode,Code32(ItalianPharmacode),RSS14,RSSLimited,RSSExpanded

PDF417MicroPDF417

Data MatrixQRCodeMicro QR Code AztecCodeMaxiCodeReads barcode reliably of cell phonescreens
