LV2097 Barcode Reading Engine

    Quantity:
    Contact Now
    LV2097

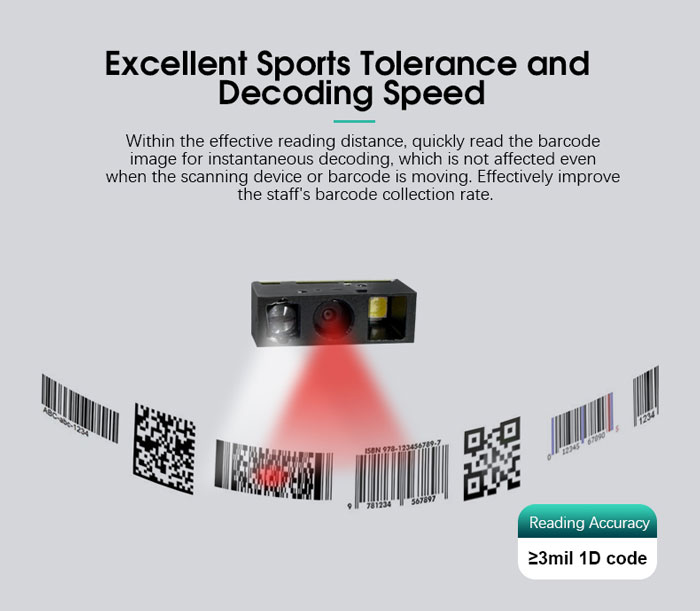

    The RAKINDA LV2097 Barcode Reading Engine is an ultra-compact, high-performance scanning solution designed for seamless integration into slim devices, IoT systems, and industrial equipment. Combining a global shutter image sensor with advanced decoding algorithms, this engine delivers 3 mil reading accuracy and rapid recognition of both screen-based codes (e.g., mobile payments) and printed/DPM barcodes, making it ideal for smart handheld devices, retail automation, and harsh environment scanning.

    Features & Benefits:
    - Superior Screen & DPM Code Scanning: Specialized decoding chip and image processing technology ensure reliable reading of QR codes, Data Matrix, and PDF417 on screens, paper, or direct part marks (DPM), perfect for mobile payment systems and industrial traceability.

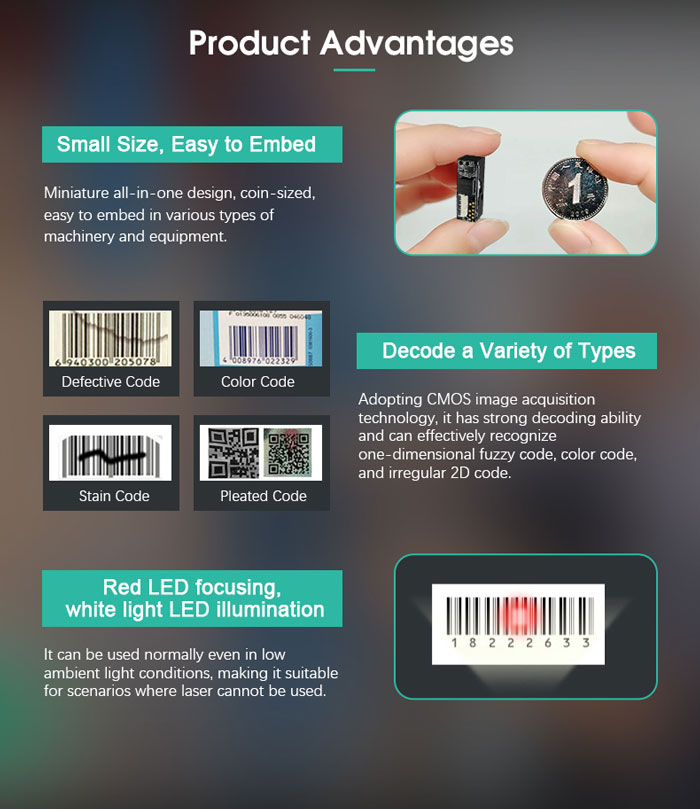

    - Compact Design: Ultra-slim dimensions (21.5x7x9.9mm) and lightweight (<30g) enable easy integration into PDA devices, tablets, and slim self-service kiosks.
    - Real-Time Image Capture: Triggered by button or command, this feature supports instant decoding and image reporting, ideal for inventory management and quality control workflows.
    - Broad Symbology Support: Decodes 1D/2D codes including UPC, EAN, Code 128, Micro QR, and postal codes, ensuring versatility across retail, logistics, and healthcare applications.
    - Robust Connectivity: Features UART/USB interfaces (3.3V) via a 12Pin FPC connector, simplifying integration into legacy systems and IoT-enabled devices.
    - Durability for Harsh Environments: Operates in extreme temperatures (-20°C to +65°C) and high humidity (5-95%), suited for warehouse automation and outdoor industrial scanners.

    Application Scenarios:
    - Mobile Inventory Management: Enhance accuracy in warehouse PDA scanners with rapid, error-free barcode reading for pallet tracking and stock audits.
    - Retail Self-Checkout: Accelerate contactless payment processing with seamless QR code recognition for Alipay, WeChat Pay, and loyalty programs.
    - Healthcare & Logistics: Track medical supplies and parcels using DPM codes on labels or metal surfaces, even in low-light conditions.
    - Smart Manufacturing: Integrate into assembly lines for real-time component verification and quality assurance automation.


    Parameters

    Performance Parameter

    imaging sensor

    640x480, global shutter

    Reading accuracy

    3 mil

    Field of view Angle

    Horizontal 40.8, vertical 32

    Symbologies

    2D

    QR code: QR, Datamatrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Azt ec, Maxicode, GS1QR, GS1 Datamatrix, GS1Combosite(CC-A/CC-B/CC-C)

    1D

    One-dimensional code:Code128, Code39, Code39 full ascii, Trioptic Code39, Code 32, Co de93, UPC- A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/   JAN13, BooklandEAN/ISBN, Interleaved 2 of5, Ma trix 2 of 5, Industrial 2 of5,Chinese 2 of5, Codebar, Code 11, MSI, ISBT, GS1 -128, GS1 Databar14, GS1 Databar Li mited, GS1Databar Expanded, postal code of various countries

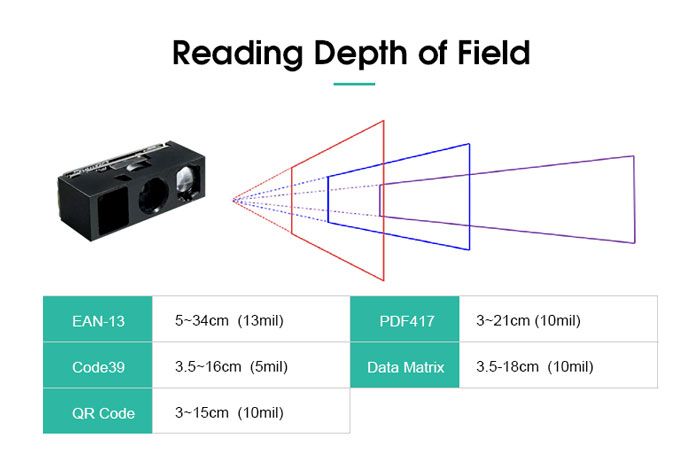

    Typical depth of field recognition

    5mil CODE39:3.5~16cm 13mil EAN13:5~34cm

    10mil Datamatrix:3.5-18cm 10mil QR:3~15cm

    10mil PDF417 ：3~21cm

    Reading Angle

    Rotation360°, tilt:±60°, deviation:±60°

    Symbol contrast

    ≥20%

    Fill light

    white LED

    Align the light

    red LED

    Captureimages in real time

    Supports button triggering

    Mechanical/ele ctrical Parameters

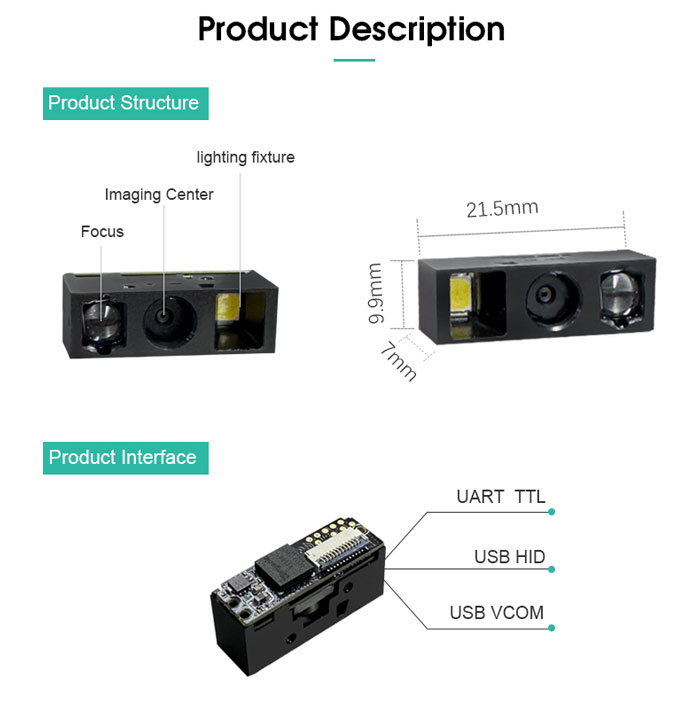

    communication interface

    UART 3.3V, USB HID, USB virtual serial port

    Appearance size

    21.5mmx7mmx9.9mm (length x width x depth)

    weight

    <3g

    prompting mode

    LED, buzzer signal output

    working voltage

    3.2~3.6V

    power dissipation

    working current: 280mA@3.3V (scanning status, average current) 40mA@3.3V (standby status, not open USB)45mA@3.3V (standby status, open USB)

    Enviromental Parameter

    working temperature

    -20~65℃

    storage temperature

    -40~70℃

    Working humidity

    5~95%(no condensation)

    Environmental lighting

    0~ 100,000LUX
