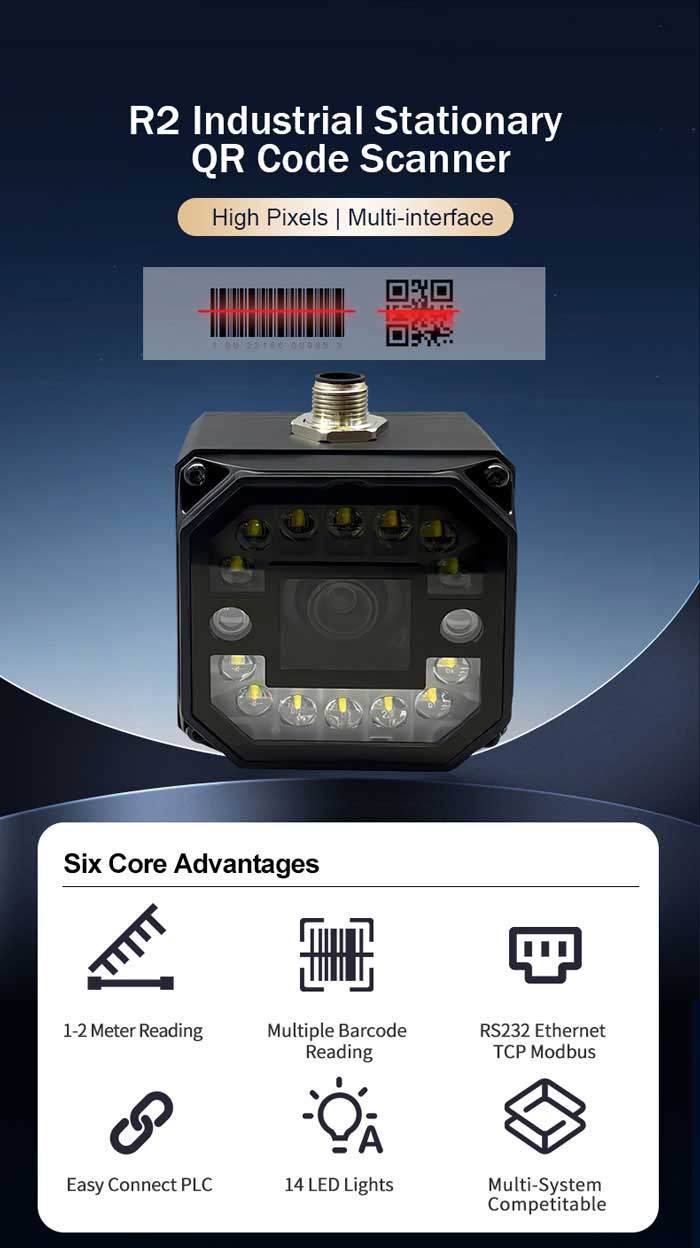

R2 Industrial Barcode Reader

    Quantity:
    Contact Now
    R2
    **Industrial-Grade Vision System
    Engineered for mission-critical identification, the R2 series combines MIL-STD-810G shock resistance with deep learning-powered decoding, delivering 99.98% read rates in:
    ✓ Automotive VIN tracking (-22°F to 158°F operational range)
    ✓ Pharma UDI compliance (360° omnidirectional reading <0.2s)
    ✓ High-speed logistics (3m/s motion tolerance)

    **Core Technical Specifications
    ** 4MP Global Shutter Imaging
    • 2368×1760 resolution CMOS sensor
    • 0.01ms exposure control eliminates motion blur
    • 20000:1 dynamic range for glare/low-light adaptation

    **Gen3 AI Decoding Engine
    • Supports 23+ symbologies (GS1 DataBar/Han Xin Code included)
    • Damaged code reconstruction: ≥40% missing data recovery
    • Multi-code processing: 15 codes/frame simultaneously

    ** Ultra-Fast Processing
    • 30fps real-time image streaming
    • 60 codes/sec throughput (Code 128@10mil)
    •<3ms decoding latency (EAN-13 benchmark)

    ** Smart Maintenance Features
    • Remote FOTA updates via HTTPS protocol
    • Programmable GPIO (8in/4out + RS-232/TTL)
    • Multi-mode feedback: 3-tier buzzer + RGB status ring


    Stationary Industrial Scanners Parameters

    Model

    R2 Series

    Image Sensor

    2368 × 1760 CMOS

    Performance  Characteristics

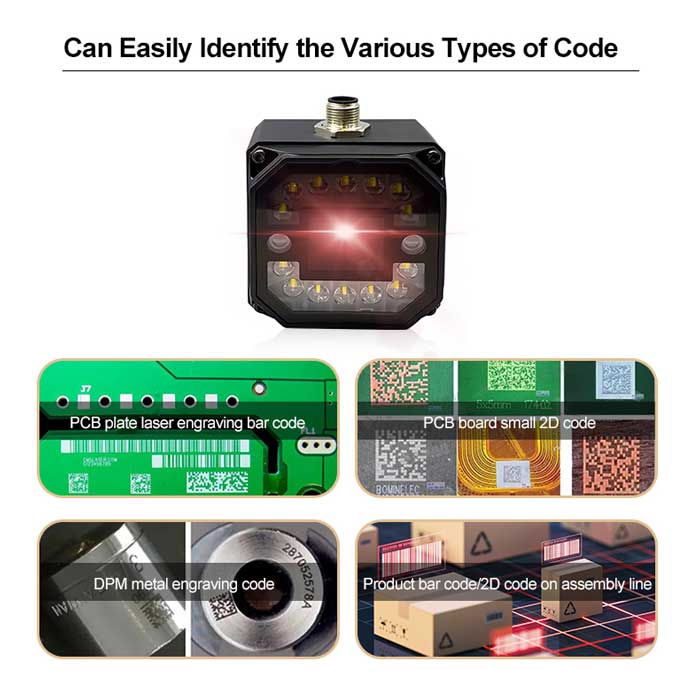

    Decode Capabilities

    1D：Code 39, Code 93, Code 128, Code Bar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25,

    Matrix 25, MSI, China Post, Code 11 and Industrial 25

    2D ：QR Code, Data Matrix, PDF 417

    Max. Frame Rate

    30 fps

    Max. Reading Speed

    60 codes/sec

    Sensor Type

    CMOS ，global shutter  3.2 µm × 3.2 µm

    Pixel Size

    3.2 µm × 3.2 µm

    Sensor Size

    1/ 1.7”

    Exposure Time

    16 μs ~ 1 sec

    Gain

    0 ~ 18 dB

    Resolution

    1D 3mil;    2D 5mil

    Communication Protocol

    Smart SDK，TCP Client ，Serial， FTP ，TCP Server， Profinet， MELSEC， Ethernet/ IP， ModBus， Fins ，SLMP

    Electrical  Feature

     Interface

    17-pin M12 connector provides power and I/O, including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

    Data Interface

    Fast Ethernet（ 100 Mbit/s）

    Digital l/O

    Including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

    Power  Supply

    12 ~ 24 VDC

    Max.Power Consumption

    48W@24 VDC（ (light source enabled)）

    User Environment

    Typical Depth of Field

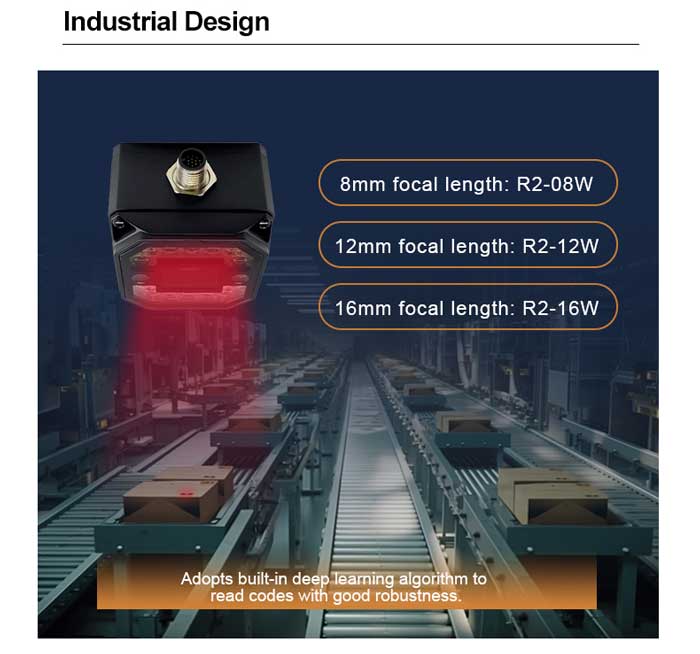

    08mm:51*39;   12mm: 34*26;   16mm: 27*20

    Lens Interface

    M12-mount ，Manual focus

    Fill Light

    6 independent control channels, totaling 14 white lights, half with polarizing lens cover

    Light Source

    Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light

    Indicator Light

    Power indicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG)

    Dimension

    65.2 mm×65.2mm×47.2mm

    Weight

    Approx. 280 g (0.6 lb.)

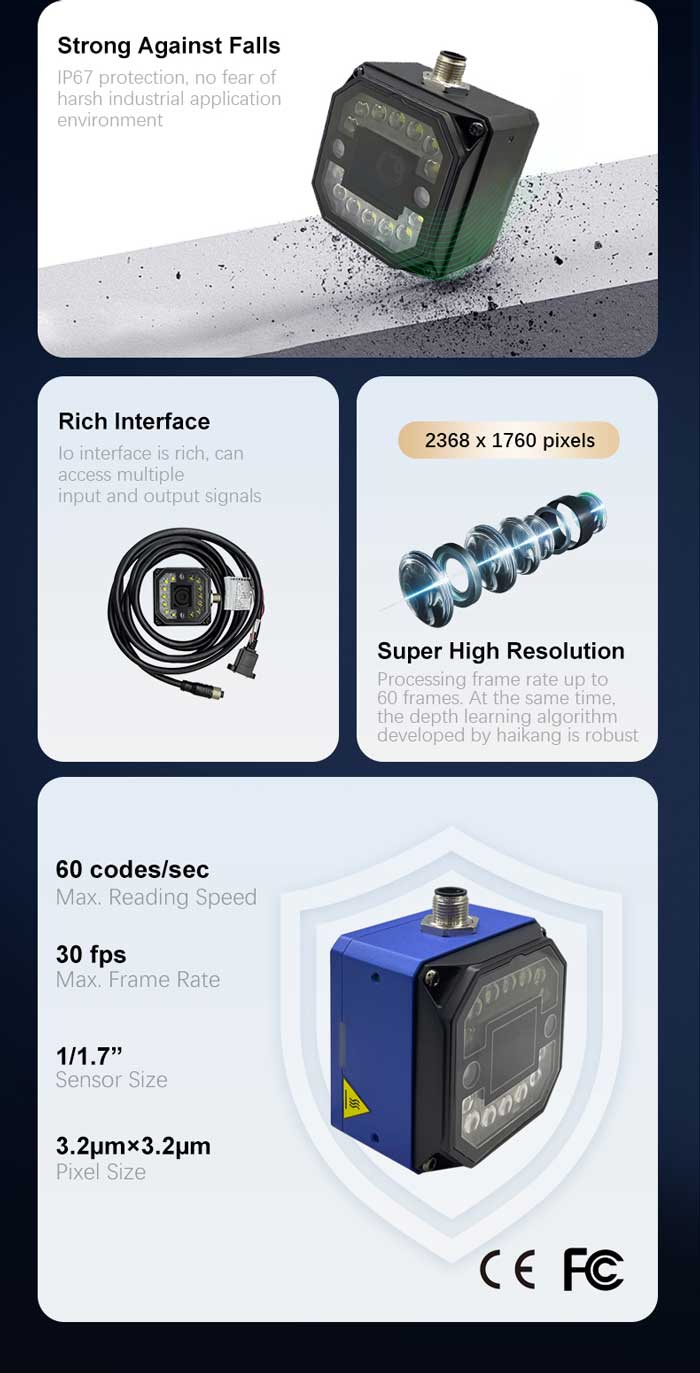

    Seal

    IP67

    Operating  Temp.

    0℃~+50℃

    Storage  Temp.

    -30℃~+70℃

    Humidity

    20% to 95% RH,non-condensing

    Regulatory

    CE,FCC.RoHS
