Fixed Industrial DPM Barcode Reader

    Quantity:
    Contact Now
    RK360
    Featuring a megapixel high-resolution image sensor (1280x1080), it accurately reads 1D and 2D barcodes. Its compact size and proprietary technology ensure efficient, fast barcode reading. Encased in a high-strength aluminum alloy shell with IP65 protection, it resists dust and water. The wide-angle, high-frame-rate lens (36° horizontal, 43° vertical, 60FPS) and advanced decoding technology offer exceptional dynamic reading.
    Experience the future of industrial automation with our Intelligent Compact Barcode Scanner, designed for exquisite performance and durability. RK360 Industrial Automation Barcode Scanner integrates a megapixel high-resolution image sensor (1280x1080) to deliver unparalleled accuracy in reading various 1D and 2D barcodes.

    Industrial Fixed Scanner Features:
    - High-Resolution Megapixel Sensor: Ensures precise barcode recognition across multiple code systems.
    - Compact & Easy Installation: Leveraging proprietary barcode recognition technology, this small yet powerful scanner efficiently reads and outputs barcode information.
    - Robust Aluminum Alloy Body: Encased in a high-strength metal shell with IP65 protection, it resists dust and low-pressure water splashes, guaranteeing reliability in harsh environments.
    - Wide-Angle, High-Frame-Rate Optics: Equipped with a 36° horizontal and 43° vertical viewing angle lens, a 60FPS frame rate, and advanced third-generation decoding technology for superior dynamic reading.

    This scanner is engineered to be anti-vibration, anti-dirt, and adaptive to varying brightness, making it versatile for diverse industrial applications. Its compact and lightweight design simplifies installation and ensures suitability across various fields.

    Parameters of Fixed Industrial scanner

    Parameter List

    Performance And Specification Parameters Table

    Resolution Ratio

    1080 (H) * 1280 (V) 1.3M high-performance sensor

    Lighting

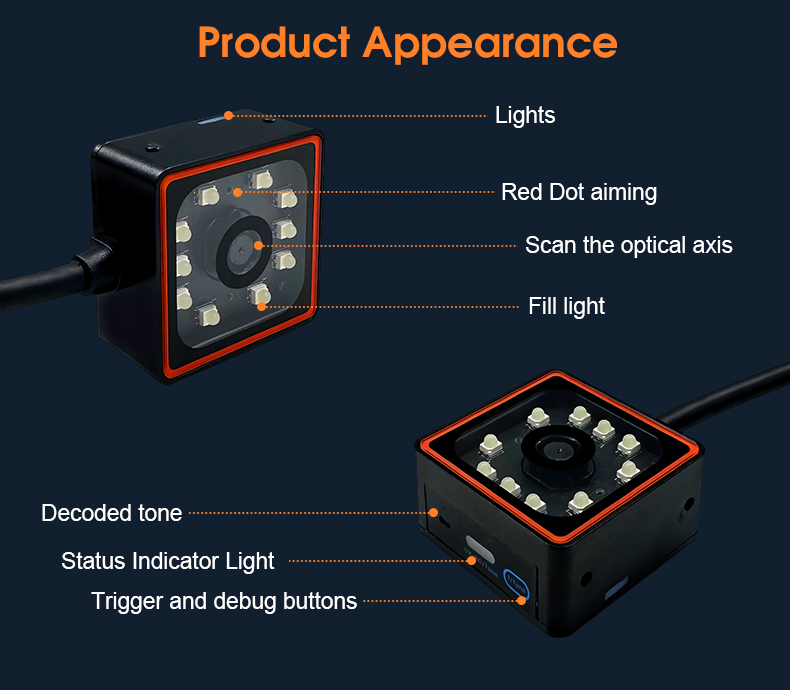

    10 LEDs (3 up and down, 2 left and right), red light source

    The Main Chip

    ARM Cortex-A7,1.2G High-performance CPU, MIPI interface

    Aim At The Instructions

    High-brightness red dots aim

    Reading Mode

    Automatic induction, continuous mode, pulse mode (external trigger)

    Field Of View Angle

    Horizontal (H) 36°, and vertical (V) 43°

    1D Reading Code System

    UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32

    Code11,Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5

    Matrix 2 of  5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded

    RSS-14 Limited ，Composite Code

    2D Reading Code System

    PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code

    Poor Movement Capacity

    Continuous scan mode: 0.5 m per second

    External trigger mode: 1.0-1.5 m per second

    Data Interface

    Communication

    RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP

    External Input

    With external trigger line or control box: 1 optical coupling isolation input (NPN / PNG / relay)

    External Output

    Version of the connection control box: 2 optical coupling isolation output (Good; NG)

    Supply Electricity

    Direct connection version: 5VDC, control box: 5-24 VDC (network port support POE power supply)

    Physical Characteristics

    Appearance Size

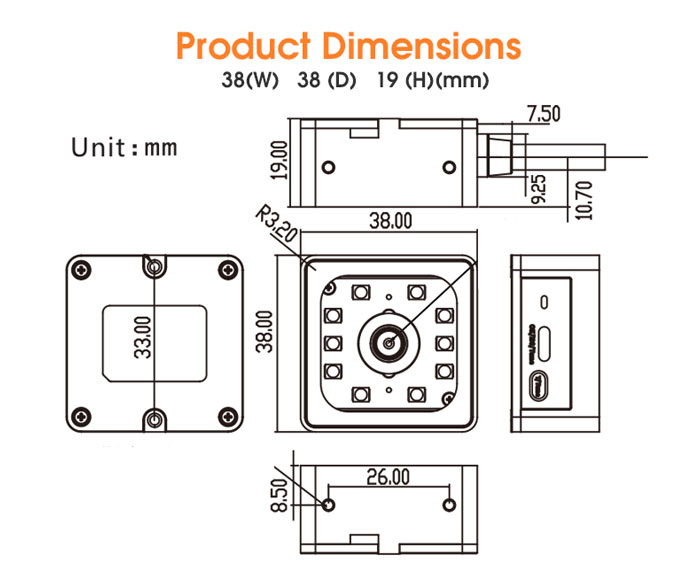

    38 (W) 38 (D) 19 (H) (mm), the part without the SR

    Weight

    The host machine is about 40g, without the weight of the wire rod

    Case Material

    Alufer

    Case Protection

    IP65

    Reliability

    Storage Temperature

    -40℃~+70℃

    Working Temperature

    -10℃~+50℃

    Relative Humidity

    5%~95% (no condensation)

    Ambient Brightness

    0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight)

    Safe Code

    CE EN55022 , FCC Part 15 Class B , CE EMC Class B

    Work Vibration

    10 to 150HZ,0.5G, 3 axial, 1min / ct, 1 time / axial

    Durable Vibration

    10 to 150 HZ, 2G, 3 axial, 1min / ct, 20 times / axial direction

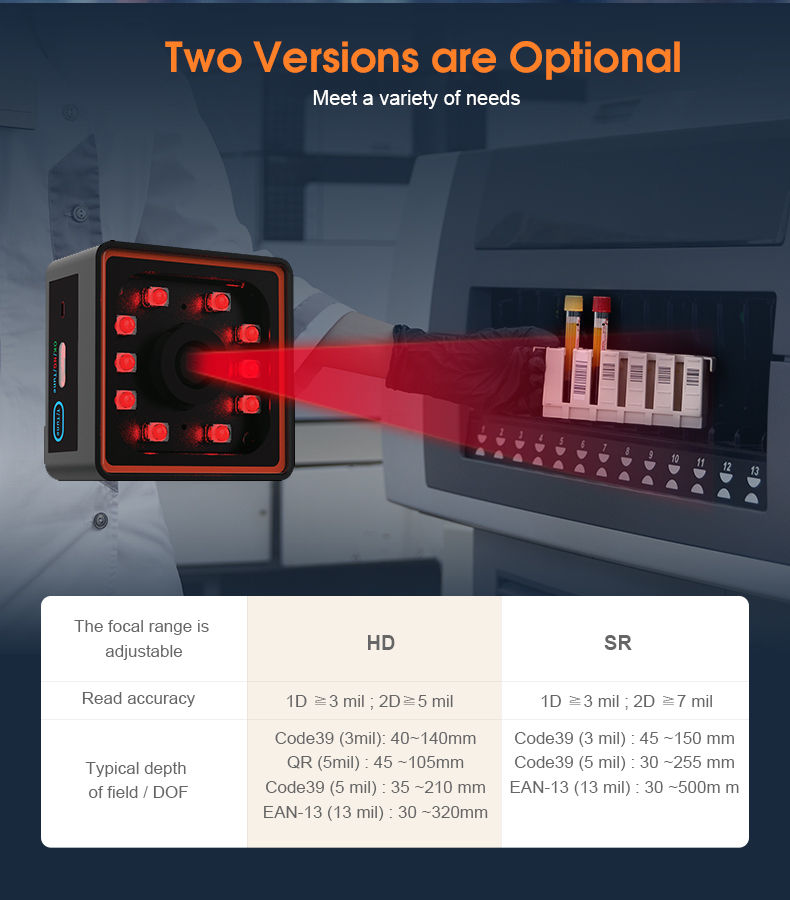

    Typical Read Code Depth Of Field

    The Focal Range is Adjustable

    HD

    SR

    Read Accuracy

    1D ≧3 mil ; 2D  ≧5 mil

    1D ≧3 mil ; 2D  ≧7 mil

    Typical Depth Of Field / DOF

    Code39(3mil):40~140mm
    QR (5mil) : 45 ~105mm
    Code39(5mil):35 ~210 mm
    EAN-13(13mil):30~320mm

    Code39(3mil) : 45 ~150 mm
    Code39(5mil) : 30 ~255 mm
    EAN-13 (13 mil) : 30 ~500m m
