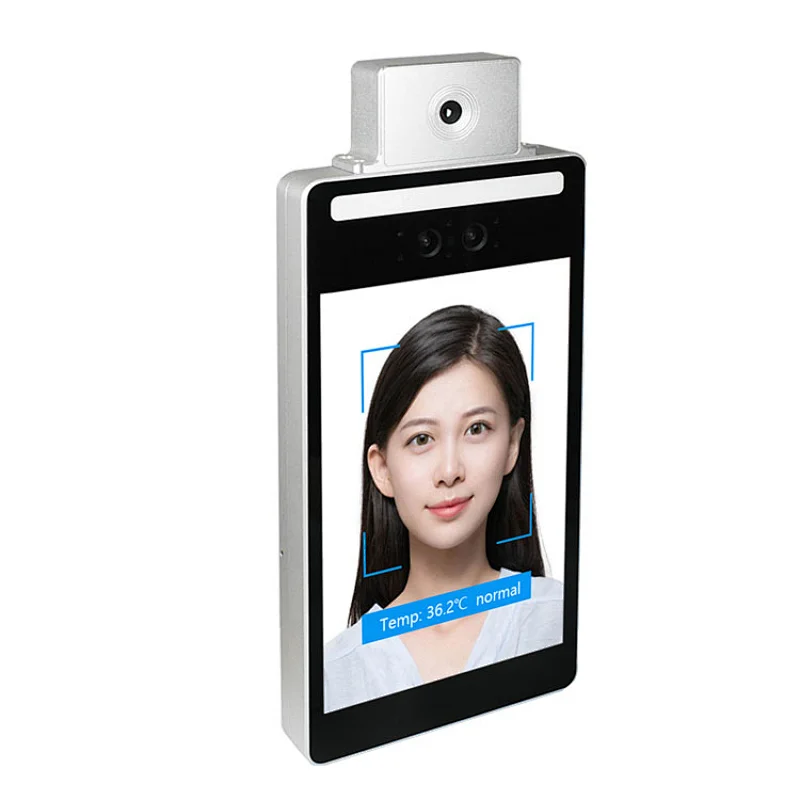

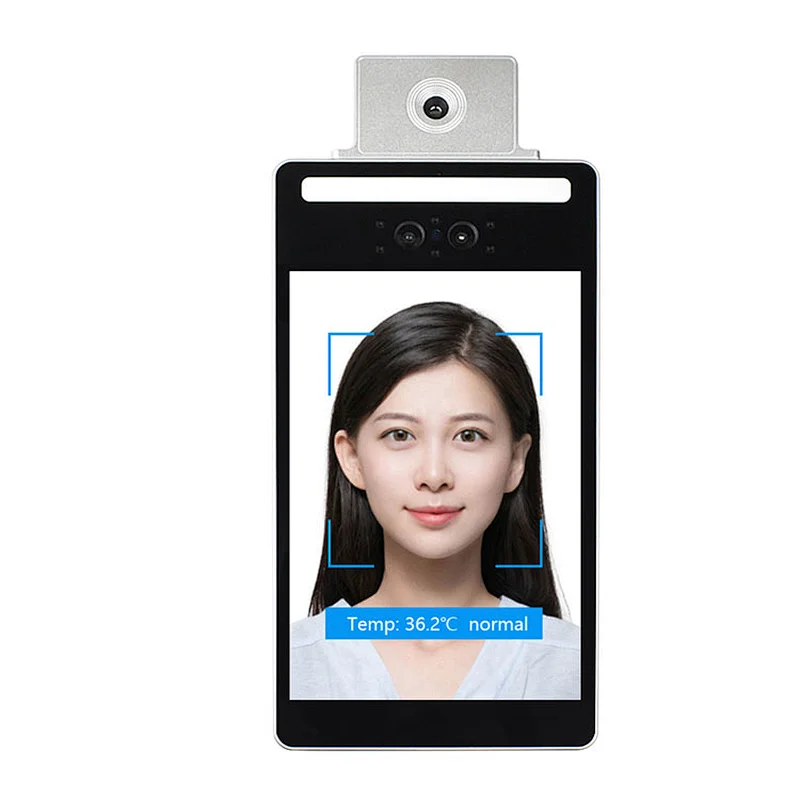

Face Recognition Thermal Imaging Temperature Measuring Device
Face Recognition Thermal Imaging Temperature Measuring Device
Face Recognition Thermal Imaging Temperature Measuring Device
Face Recognition Thermal Imaging Temperature Measuring Device
Face Recognition Thermal Imaging Temperature Measuring Device
Face Recognition Thermal Imaging Temperature Measuring Device

Face Recognition Thermal Imaging Temperature Measuring Device

Model NO.:
F3-M34-F
Delivery:

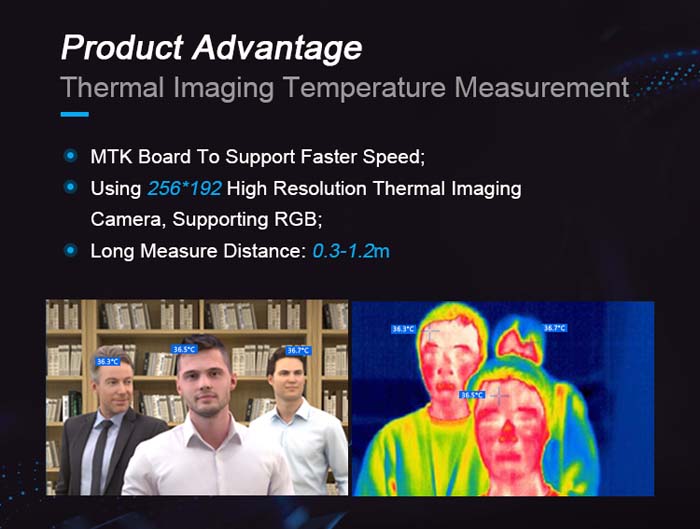

Product Advantage

*MTK Board To Support Faster Speed;

*Using 256*192 High Resolution Thermal Imaging Camera, Supporting RGB;

*Long Measure Distance: 0.3-1.2m

Product Features

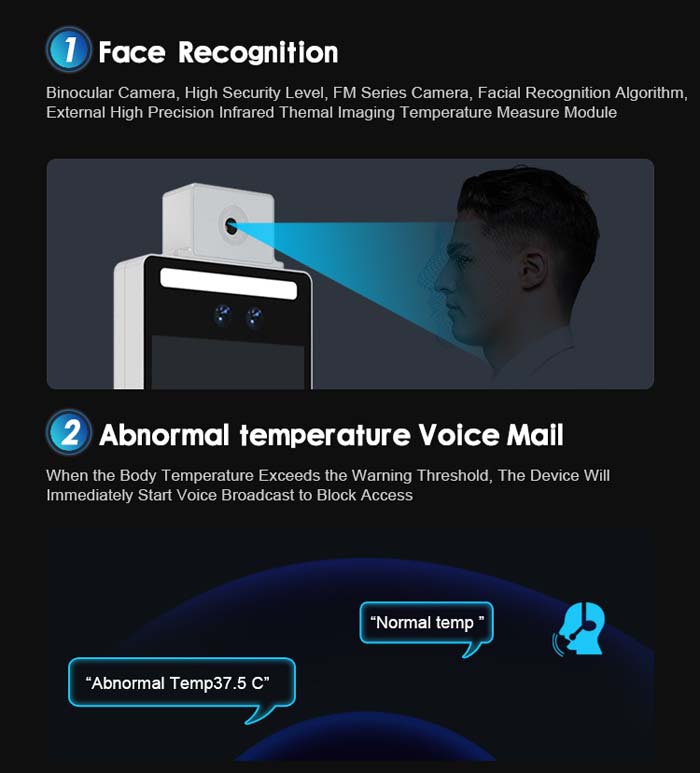

*Dynamic detection, solve the deception of photos on various carriers

*Adopting dynamic face detection and tracking recognition algorithm based on video stream

*Support storage of 30,000 libraries locally;

*Support RS232 serial port, Wiegand 26 output, support configuration of output content

*Support public network and local area network

*Support HTTP interface connection;

*Support screen display content configuration, status display, custom content display, custom broadcast content

*Fast recognition:

(a)Face tracking and detection takes about 20ms

(b)Face feature extraction takes about 200ms

(c) The live detection face comparison takes 0.6ms (1000 people library, average value for multiple recognition), 0.8ms (10000 people library, average value for multiple recognition)

*Recognition Height:1.2-2.2m

*Detection Rate:1-2sec/person-time

*Precision:± 0.5 ℃

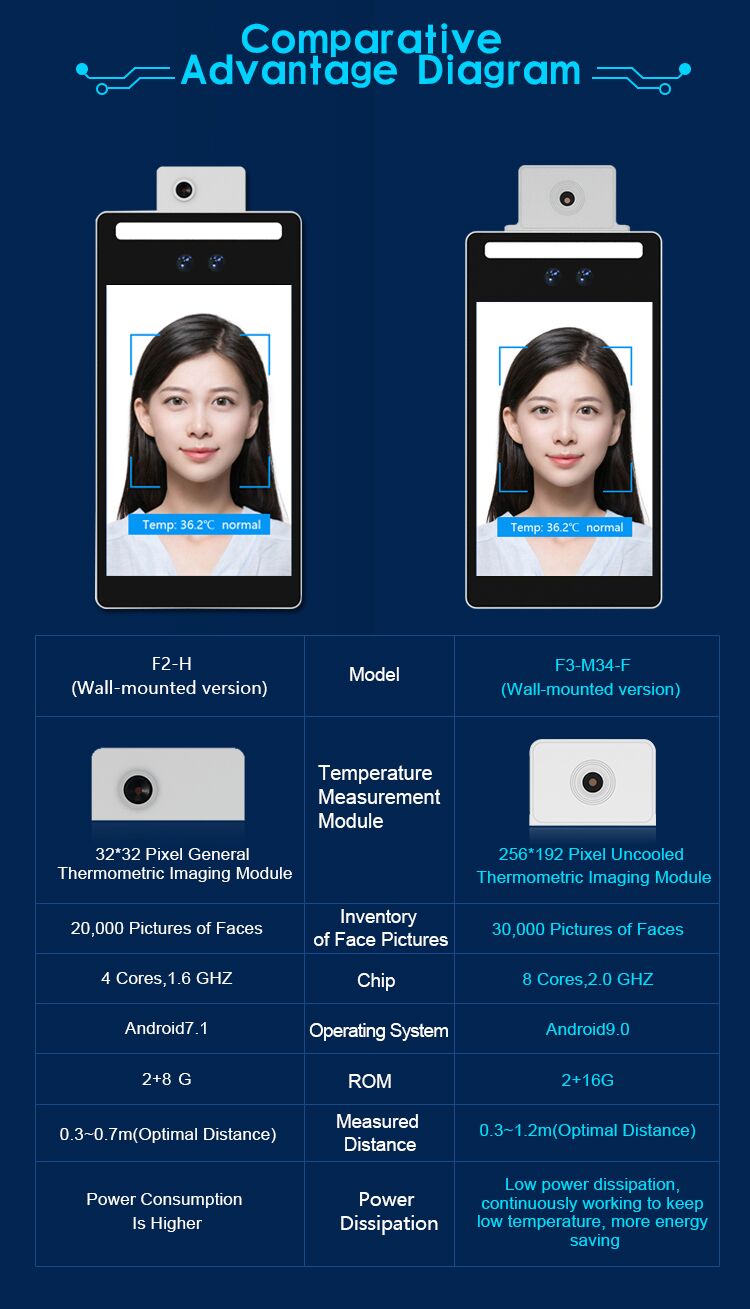

F2/F3 Series Face Recognition Device

We offer face recognition thermal imaging temperature measuring device with various configurations and multiple installation methods. Choose as you like. If there is any product you are interested in , please contact us NOW!

Product Parameters

F3-M34-F Face Recognition Access Control Terminal

Model No.

F3-M34-F

Display

8 inches, Full viewing angle, 170IPS LCD screen

Screen Resolution

800*1200

Camera

Type

RGB

Thermal Imaging

Resolution

2 Million Pixels

256*192

Aperture

F2.8

F2.8

Focal Length

3.18mm

3.18mm

White Balance

Automatic

Automatic

Wide dynamic

Support

Support

Vertical Wide Angle


Horizontal Wide Angle


Basic Specification

Operating System

Android9.0 or above

Power Supply

DC12V(±10%)3A

Power Consumption

15w MAX

Relative Humidity

0%¨ 90%(In the State of Non-condensing Drops)

Operating Temperature

5℃-50℃

IP Grade

IP55(Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added)

Working Environment

Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)

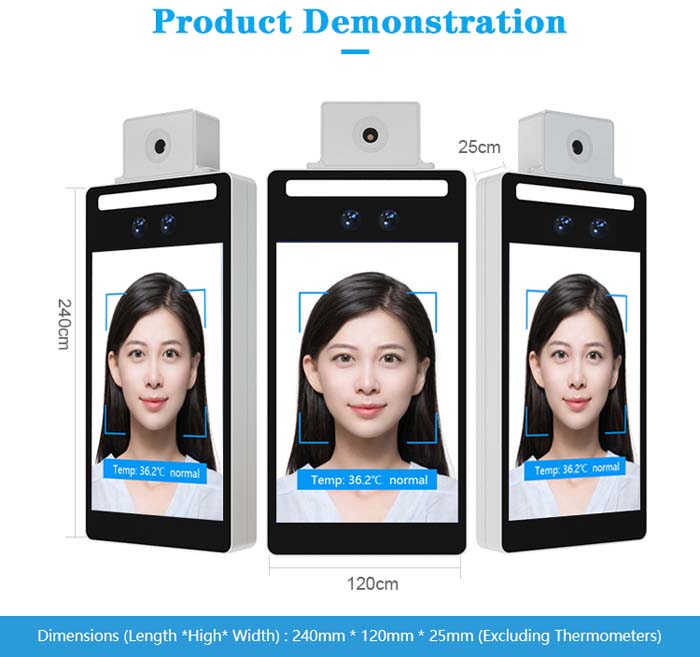

Size

275.2MM*123.2MM*30.2MM

HardwareConfiguration

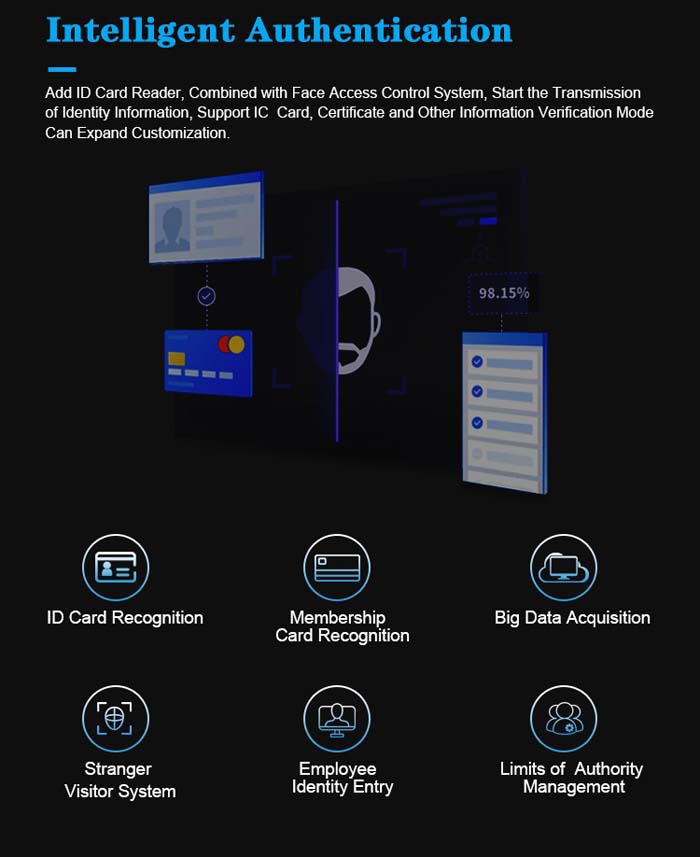

Recognition Method

¨ ¨Face Recognition

¨ ¨Mifare Card(Optional)

¨ ¨IC Card(Optional)

Face Recognition Parameters

¨ ¨Face Verification Accuracy >99%

¨ ¨Face Recognition Distance 0.5m-1.5m

¨ ¨Card Verification Time 600MS

Local Storage 30000 faces

Interface

Micro USB 1pc

RJ45 Gigabit Network 1pc

Relay Output

Wiegand Interface

RS-232

Door Contact

Exit Switch

Power Supply

White Fill Light

Support

Indicator Light

Support Green Light for Authentication Success and Red Light for Authentication Failure

Speaker

Dual Speakers, 1.0w

Microphone

Non-noise Reduction

BasicParameters

WIFI

2.4G 802.11b/g/n

Bluetooth

BluetooH 4.0

TemperatureMeasurementModule

Operating Temperature

5℃ ~ +50℃

Operating Temperature

-20℃ ~ +55℃

Power consumption

< 0.3w

Pixel

256*192 Real-time Temperature Output

Measurement Accuracy

± 0.5℃

Measuring Distance

0.3 ~ 1.0m

MTK

Motherboard

Chip

Octa-core A73

Operating System

Android9.0

RAM

2GLPDDR4

Storage

16GB eMMC

Power Input

12V/2A

Display

MIPI DSI Maximum Support Resolution 2400 * 1080

WIFi

2.4GHz and 5GHz;802.11a/b/g/n/ac

USB

Micro USB Type A Host*1;Micro USB Type A Device*1

USB 2.0 Host*2(1.25mm wafer)

Microphone

2W*2 Speaker output
