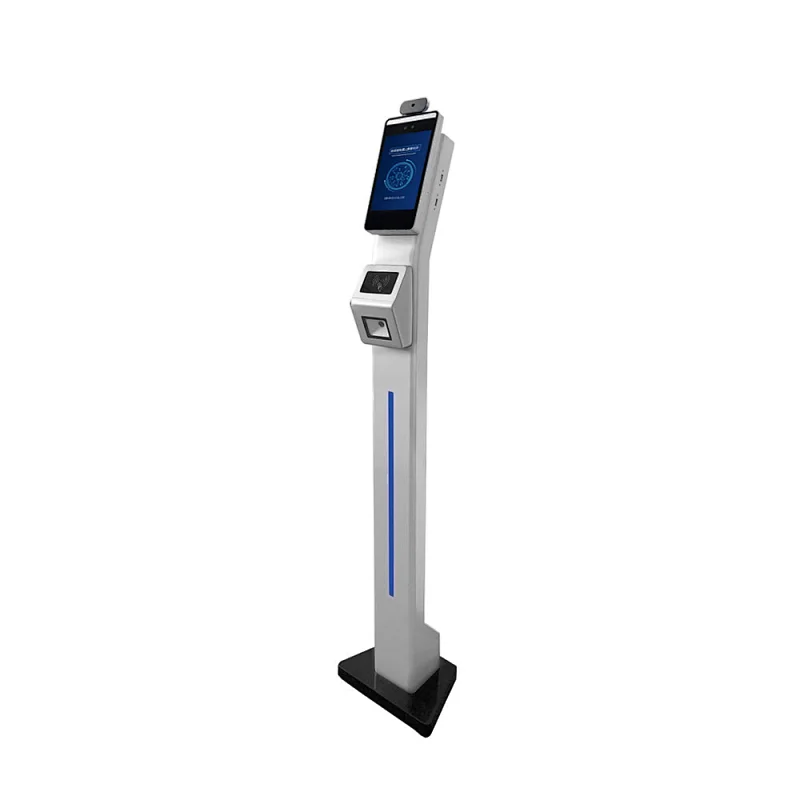

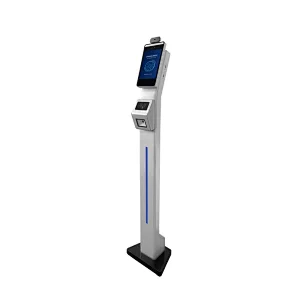

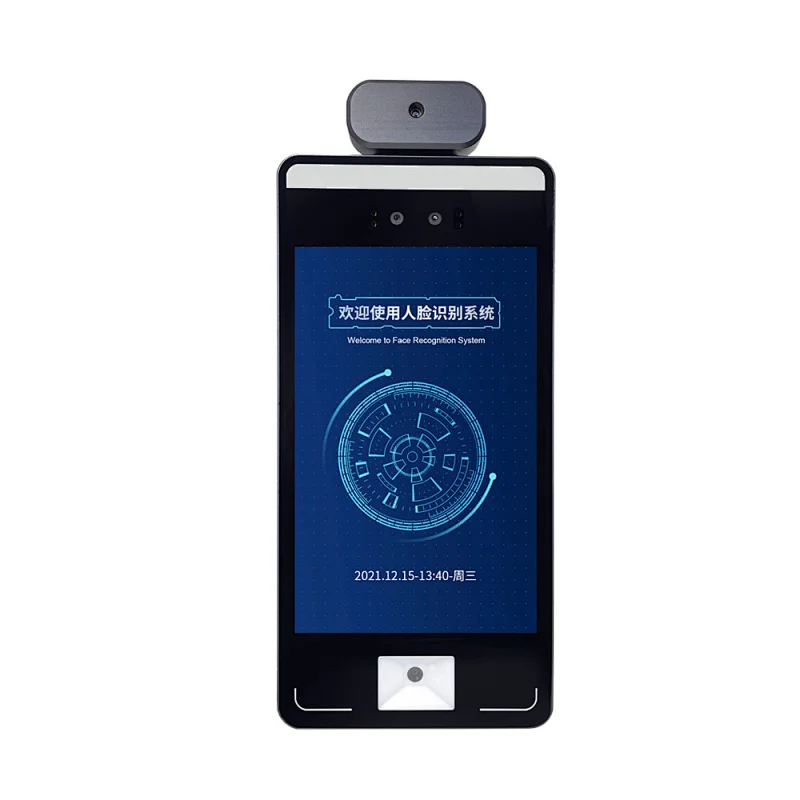

F6 Face Recognition Mask Detection System

F6 series has not only embedded the IC card reader and qr code reader ,the temperature measurement function as optional as well.Powerful performance and exquisite appearance won the high reputation from the worldwide markets.

Features of Face Recognition Temperature
* Armed with latest RK3566 board,Android 11Os
* Software: basic software with SDK and APl;
* Customized software to scan EU green pass code and MRZ on passport

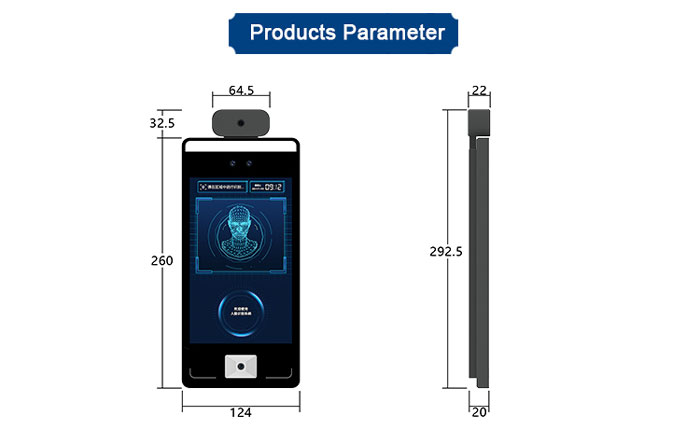

Parameters of facial biometric thermometer

Face recognition attendance terminal
Product module		F6
Product features	major function	Access control, attendance, access gate
	Usage environment	Indoor, outdoor	4/16
	resolution ratio	200 megapixels	200 megapixels
	Vertical wide Angle	65°	65°
	Horizontal wide Angle	40°	40°
	White light supplement	support
	Infrared light supplement	support
Core parameters	system	android 11.0
	CPU	RK3566 4x ARM⑧ Cortex TM A55up to1.8GHz
	SC	Memory 2G,storage 8G

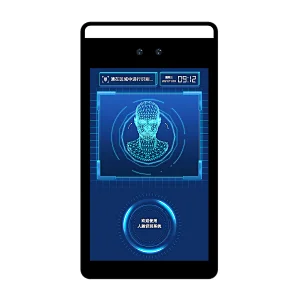

human-computer interaction	display screen	8-inch, Full View,170°IPS LCD, resolution 800* 1280
	touch screen	support
	Human temperature measurement module [Optional]	Test accuracy: 0.1 ℃
		test error:<±0.5℃
		Temperature measurement distance: the recommended use distance is 50cm
		Operating temperature: 15℃～40℃
communication model	Ethernet	10/100Mbps Ethernet
	WIFI	Compliance with the IEEE802.11b/g/n standard (2.4G)
	4G[Optional]	CAT1, domestic full Net
RM	human face	support
	IC card[optional]	support
	certificate of identification	Network ID card [Optional]
		Local ID card needs external connection [optional]
Interface	data interface	USB 2.0*2
	electric relay	*1
	gorge line	RS4851
	Wigan	The 26bit/ 34bit protocol
	Go out switch	*1 [Expandable]
	Fire linkage	*1 [Expandable]
	key	Upgrade key
Source	adapter	DC12V/2A power supply
Environmental requirement	working temperature	-20℃～60℃
	Operating humidity	20%～90%(No condensation water drop state)
	static electricity ESD	IEC61000-4-2,LEVEL3
	levels of protection	IP65
