Model NO.
TM2
Quantity:

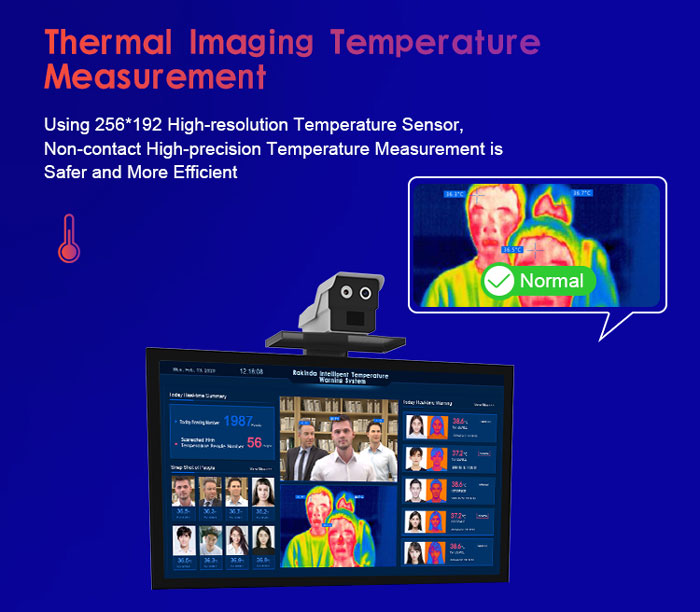

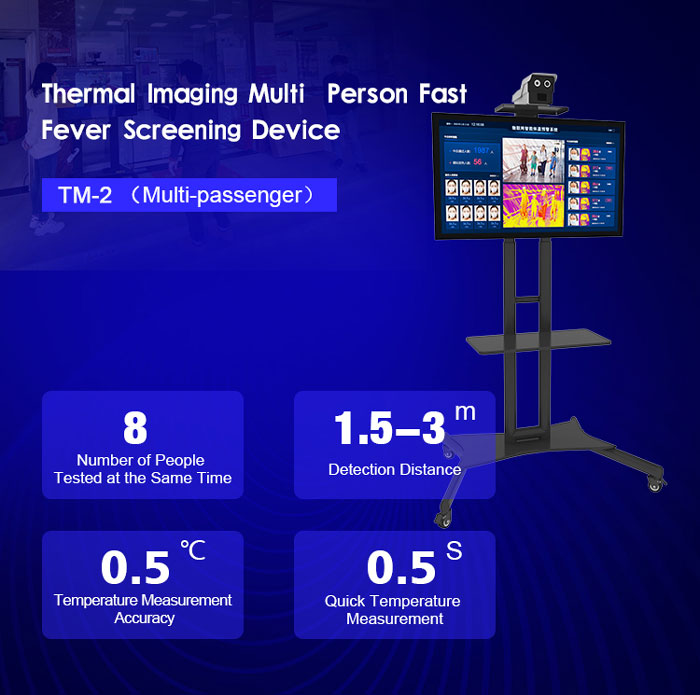

With 256*192 Pixels Uncooled Thermal Imaging Temperature Measurement Module, This Product is Non-contact, Fast, Convenient, Intuitive, Security Etc.it Overcomes the Shortcomings of Traditional Thermometers Such As Thermometers, Forehead Thermometers, Point Thermometers and Ear Thermometers in Measuring Only for Individuals, Time-consuming and Easy to Cross Infection, Which Could Effectively Control the Spread of the Epidemic And Reduce Casualties.


Features of Facial Recognition System

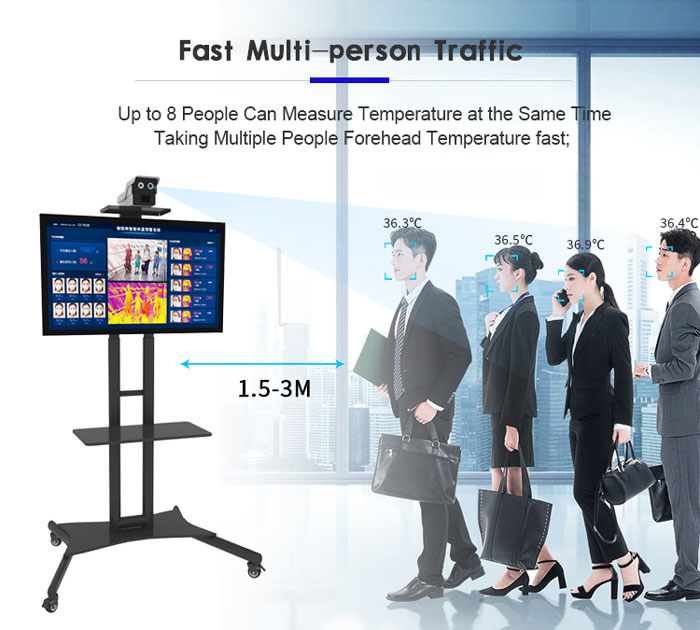

*Long-distance large-scale scene accurate rapid screening
*Non-contact to avoid cross-contamination
*High precision algorithm of human body temperature measurement

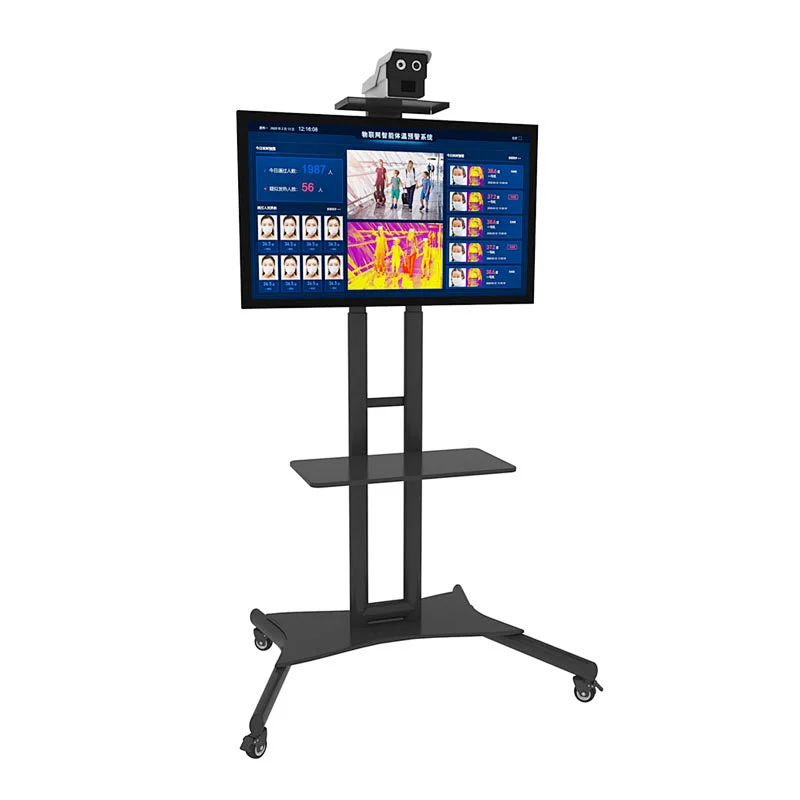

*External Large screen display
*Multi-person abnormal body temperature alarm and High Temperature Alarm
*Intelligent calibration of inner body surface

Face Temperature Thermometer Parameters

Product

Intelligent Temperature Measure System

RGB Resolution

5 million

Field of view

25.5°xl9.2°

Lens Focal Length

2.8mm

Camera Resolution

256*192

Temperature Accuracy

± 0.5 °C

Temperature Range

-20 °C 〜+ 120 °C (expandable to 600 °C)

Picture Correction

Shutter correction

The Main Parameters

Functions

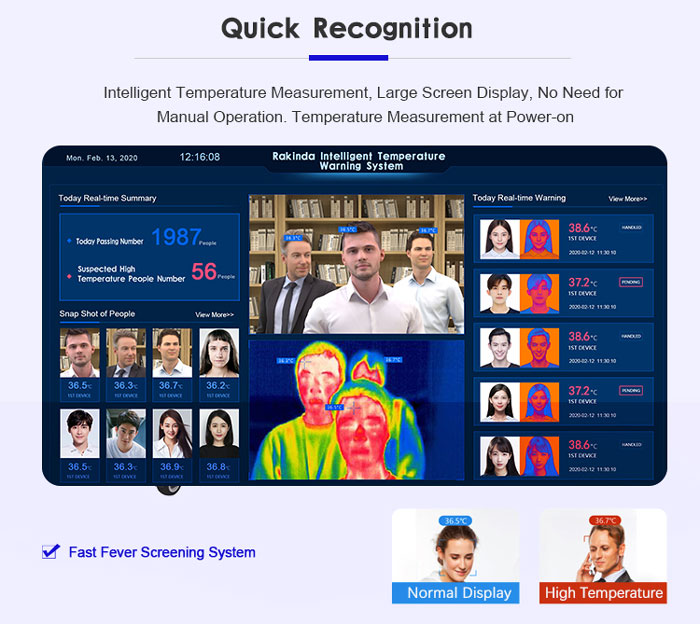

HD synchronized temperature display, remote video transmission, auto high temperature alarm and capture, voice alarm and video recording

Temperature

Analysis

Support Max./Min.temperature summary and analysis

Sensor Resolution

2592 (H) x 1944 (V)

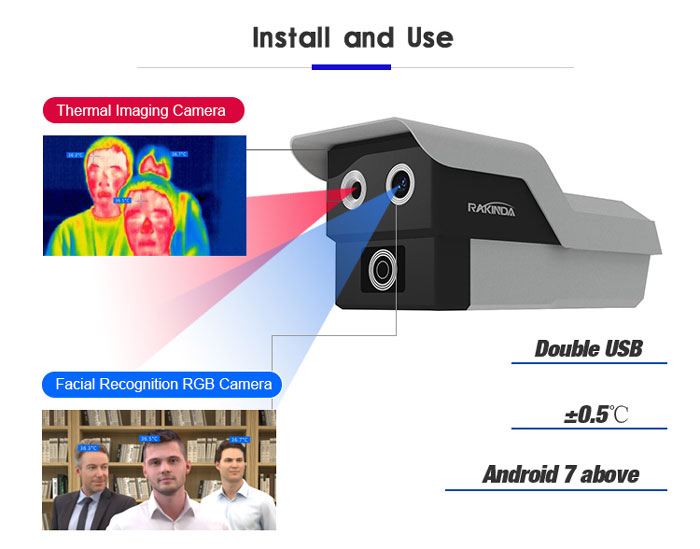

Thermal Imaging Camera Interface

USB

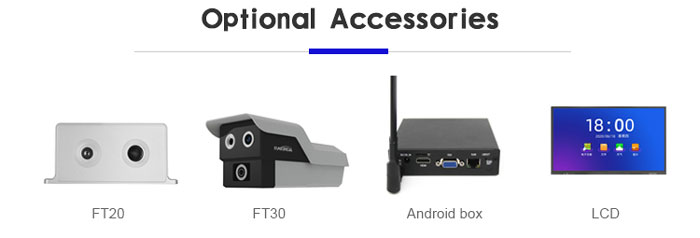

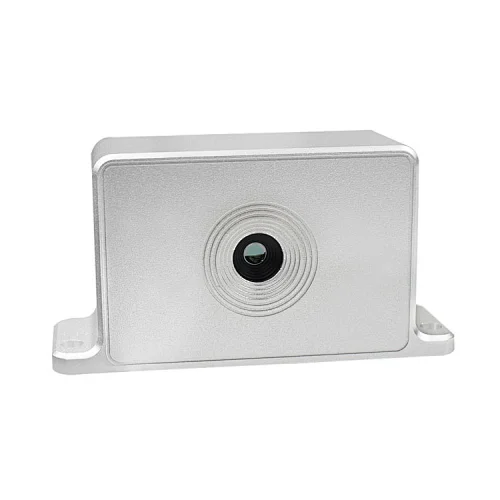

Thermal Imaging Camera

FT20

F30

Size(mm)

91(L)*45(W)*25(H)

184(L)*90(W)*87(H)

Weight

<40g

<80g
