Model NO.
F3-FHS
Quantity:

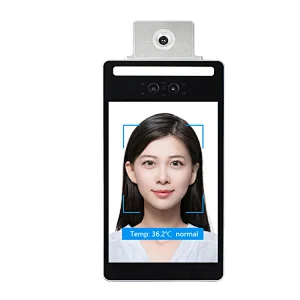

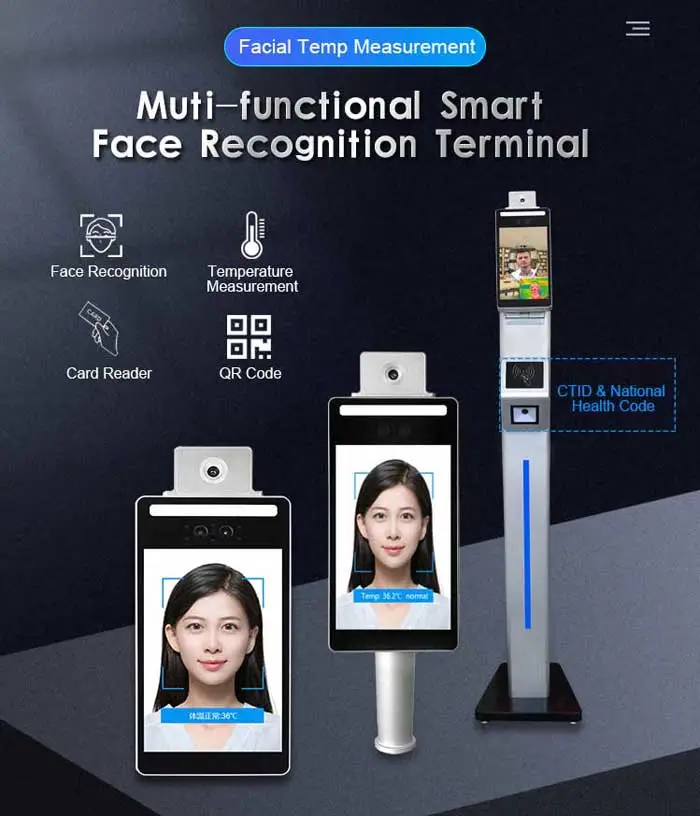

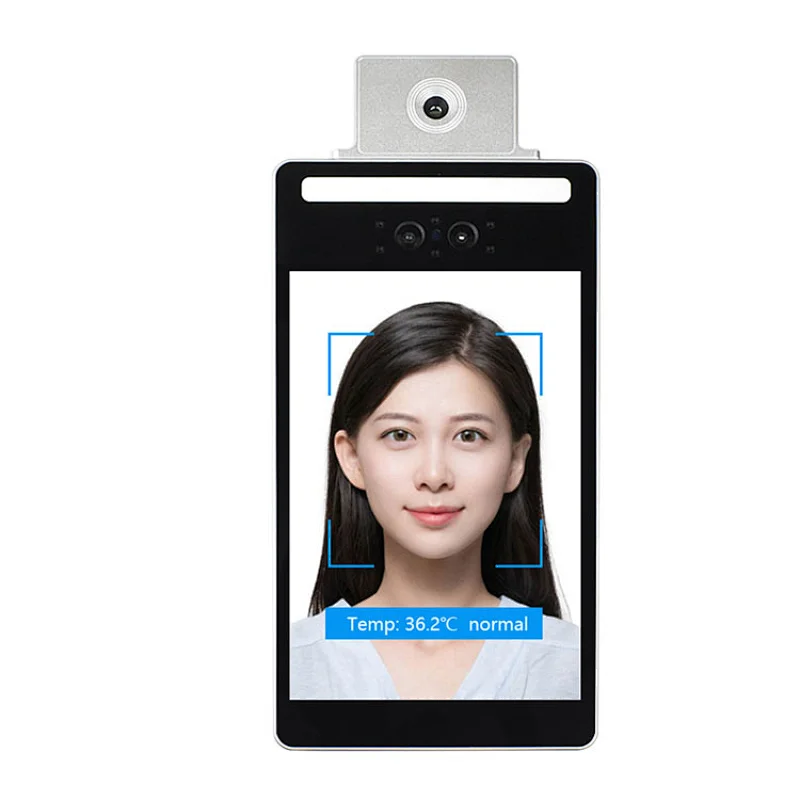

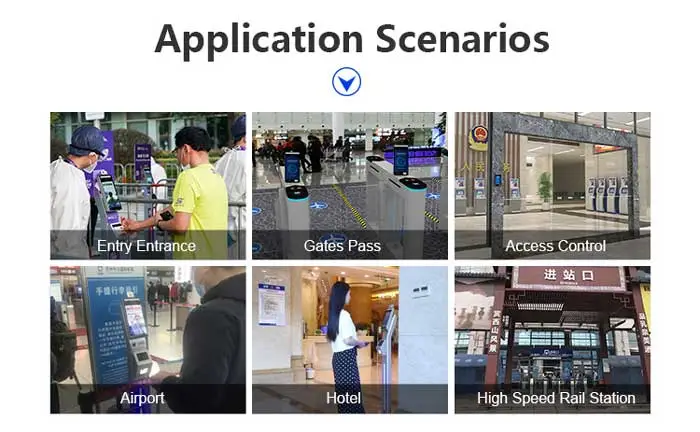

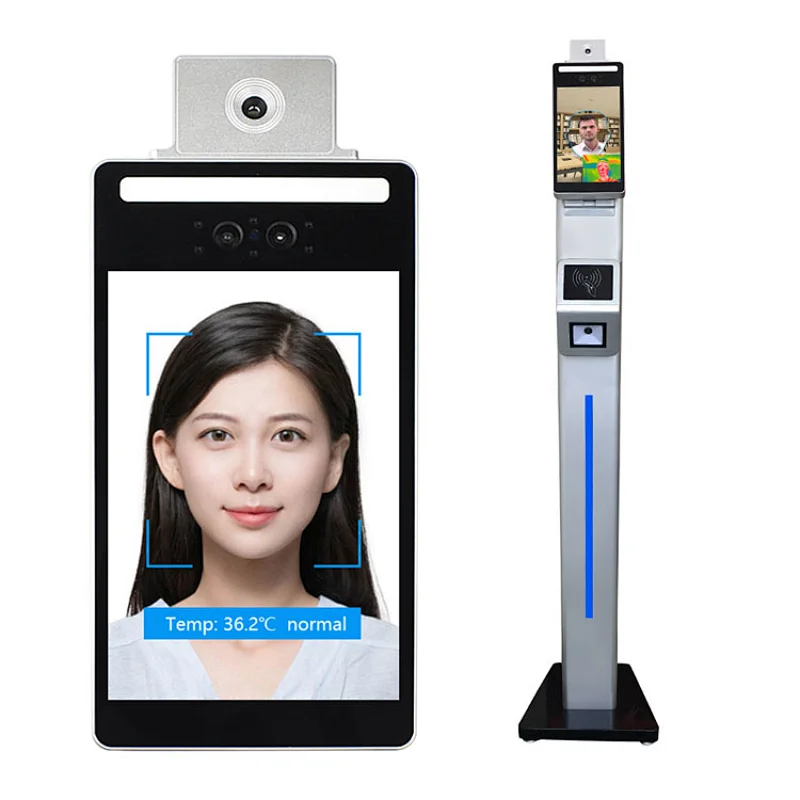

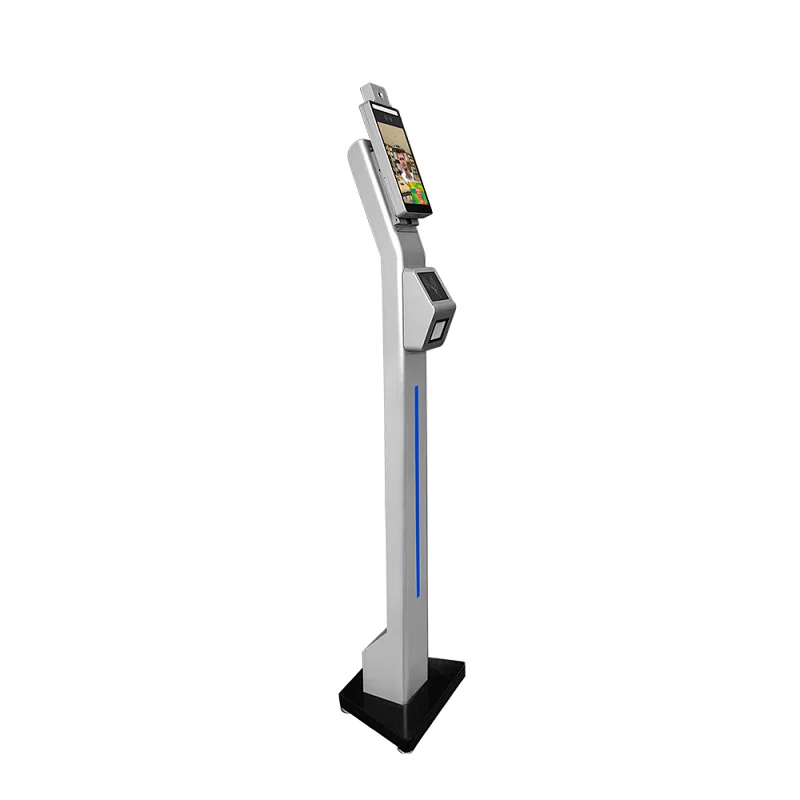

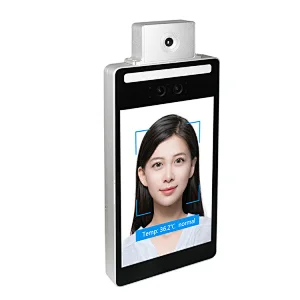

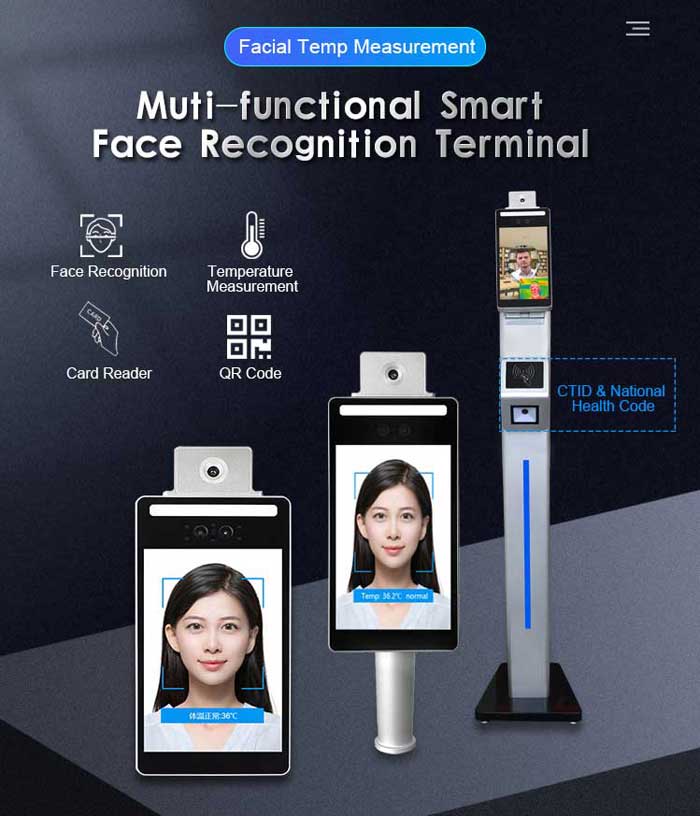

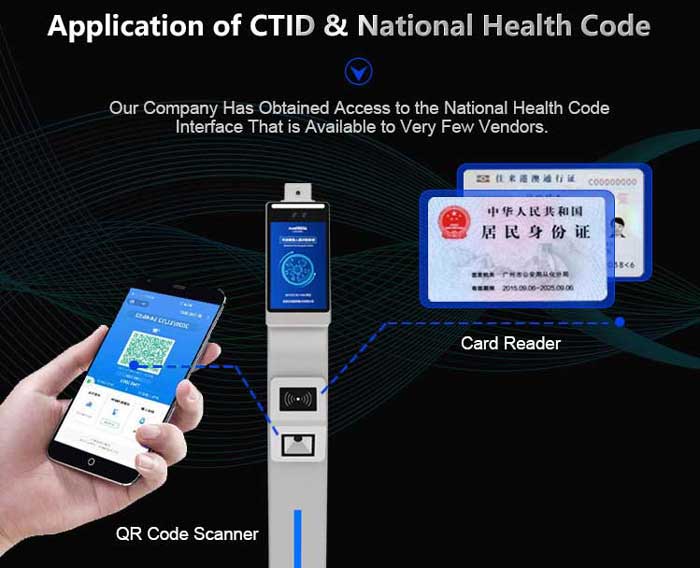

The F3 series thermal imaging face recognition equipment is designed for Anti-epidemic with the functions of rapid and accurate temperature measurement and health code recognitions. It aims to solve the existing problem of close measuring distance,slow recognition speed ,and heavy labor temperature measurement that used in the government,school,enterprises,high-end hotels,hospitals,exhibitions,and retail industries and so on.There are three type:Wall Mounted,Turnstile Type and Column Type,which will meet different application scenario.

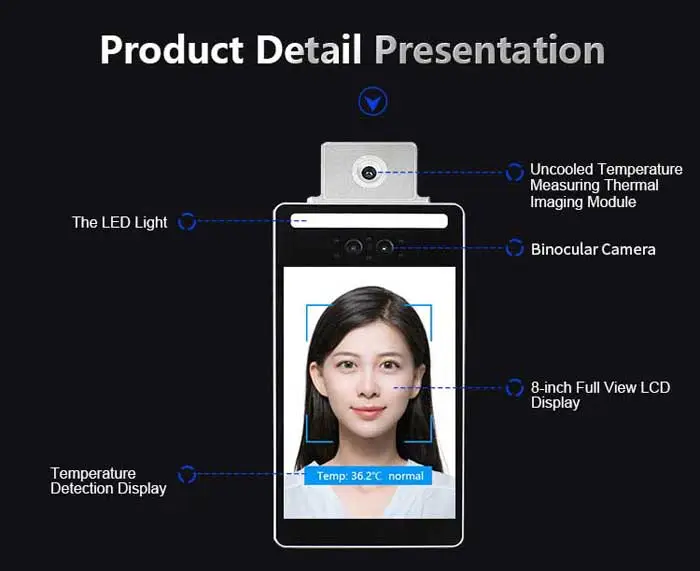

Features of Face Temperature Thermometer

* High-end Configuration​
MTK Board To Support Faster Speed;
* Accurate Temperature Detection

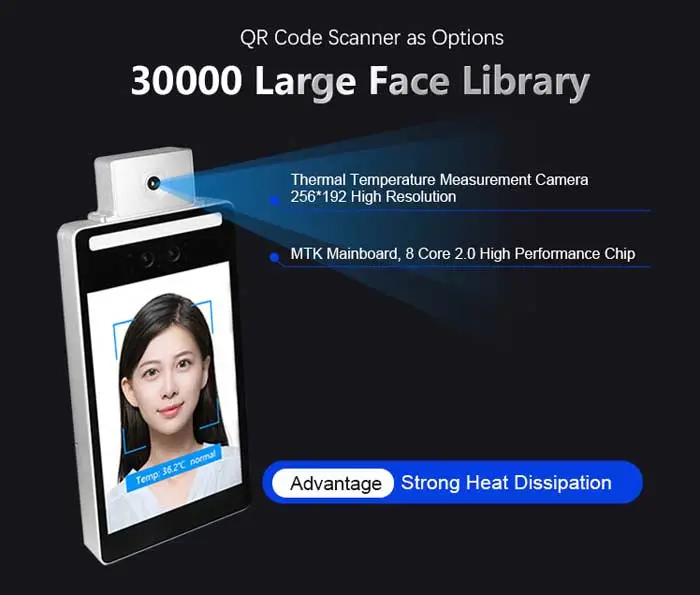

Using 256*192 High Resolution Thermal Imaging Camera, Supporting RGB;
*Long Range Temperature Measurement
Long Measure Distance: 0.3-1.2m

Parameters of Facial Recognition Attendance System

Facial Recognition System

Model No.

F3-FHS

Display

8 inches, Full viewing angle, 170IPS LCD screen

Screen Resolution

800*1200

Camera

Type

RGB

Thermal Imaging

Resolution

2 Million Pixels

256*192

Aperture

F2.8

F2.8

Focal Length

3.18mm

3.18mm

White Balance

Automatic

Automatic

Wide dynamic

Support

Support

Vertical Wide Angle

Horizontal Wide Angle



Basic Specification

Operating System

Android 9.0 or above

Power Supply

DC12V(±10%)3A

Power Consumption

15w MAX

Relative Humidity

0%¨ 90%(In the State of Non-condensing Drops)

Operating Temperature

5℃-50℃

IP Grade

IP55(Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added)

Working Environment

Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)

Size

275.2MM*123.2MM*30.2MM

Hardware

Configuration

Recognition Method

¨ ¨Face Recognition

¨ ¨Mifare Card(Optional)

¨ ¨IC Card(Optional)

 Face Recognition Parameters

¨ ¨Face Verification Accuracy >99%

¨ ¨Face Recognition Distance 0.5m-1.5m

¨ ¨Card Verification Time 600MS

Local Storage 30000 faces

Interface

Micro USB 1pc

RJ45 Gigabit Network 1pc

Relay Output

Wiegand Interface

RS-232

Door Contact

Exit Switch

Power Supply

White Fill Light

Support

Indicator Light

Support Green Light for Authentication Success and Red Light for Authentication Failure

Speaker

Dual Speakers, 1.0w

Microphone

Non-noise Reduction

Basic

Parameters

WIFI

2.4G 802.11b/g/n

Bluetooth

BluetooH 4.0

Temperature

Measurement

Module

Operating Temperature

5℃ ~ +50℃

Operating Temperature

-20℃ ~ +55℃

Power consumption

< 0.3w

Pixel

256*192 Real-time Temperature Output

Measurement Accuracy

± 0.5℃

Measuring Distance

0.3 ~ 1.0m

MTK

Motherboard

Chip

Octa-core A73

Operating System

Android 9.0

RAM

2GLPDDR4

Storage

16GB eMMC

Power Input

12V/2A

Display

MIPI DSI Maximum Support Resolution 2400 * 1080

WIFi

2.4GHz and 5GHz;802.11a/b/g/n/ac

USB

Micro USB Type A Host*1;Micro USB Type A Device*1

USB 2.0 Host*2(1.25mm wafer)

Microphone

2W*2 Speaker output
