Model NO.
M5
Quantity:

Product Description

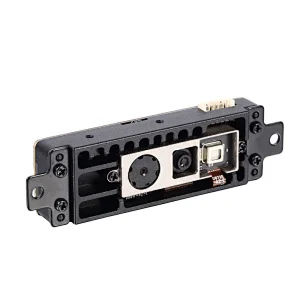

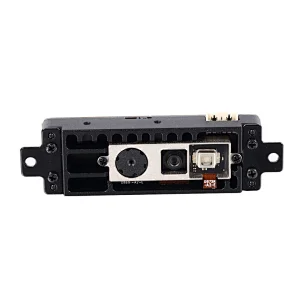

RAKINDA M5 product is a new generation of miniaturized RGBD cameras independently developed by Rakinda Internet of Things Technology Co., Ltd. The product integrates a 640 × 480 pixel TOF depth camera and a 5 million pixel RGB camera.

The miniaturized and ultra-thin size structure is suitable for various embedded and handheld detection terminals, and realizes functions such as face recognition, living body detection, scene recognition, and gestures. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.

Product Features:

1.High precision-more than 99.9% recognition accuracy
2.Super fast recognition speed by facial scanning
3.Flexible&multiple scenarios in many files
4.3D TOF living detection with efficient & stable performance
5.High resolution, depth map resolution is 640 × 480;
6.Using 940nm VCSEL light source to support outdoor applications;

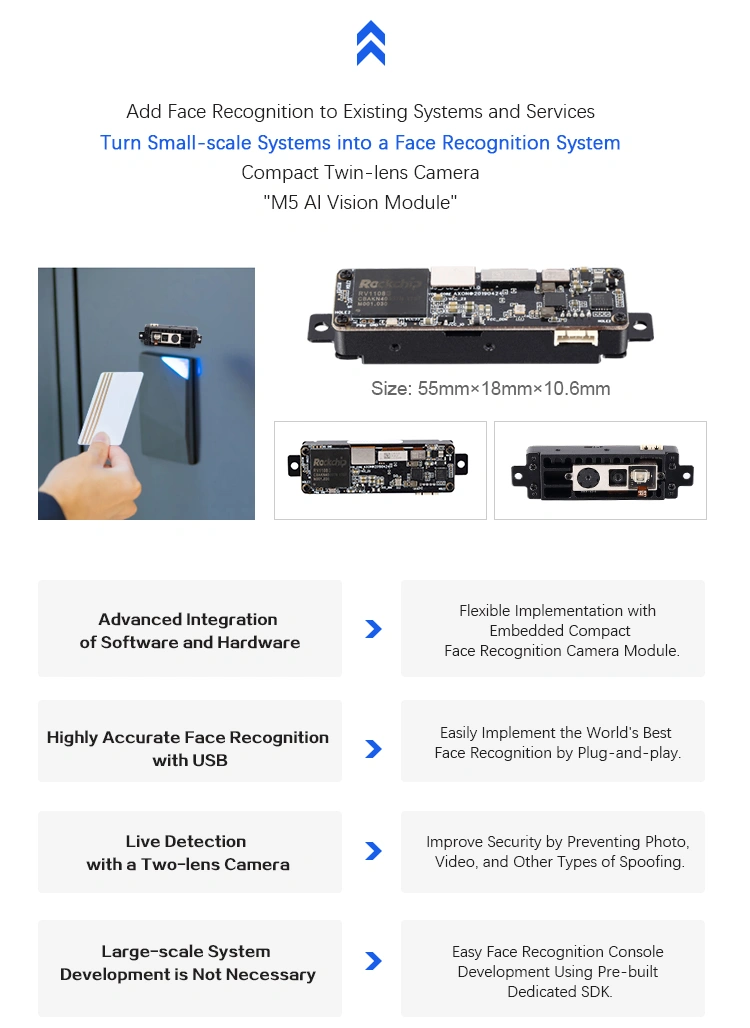

7.Miniaturized and ultra-thin design, the appearance size is 55mm × 18mm × 10.6mm, suitable for various embedded applications;
8.Accurate synchronization and alignment between depth, IR and RGB images.

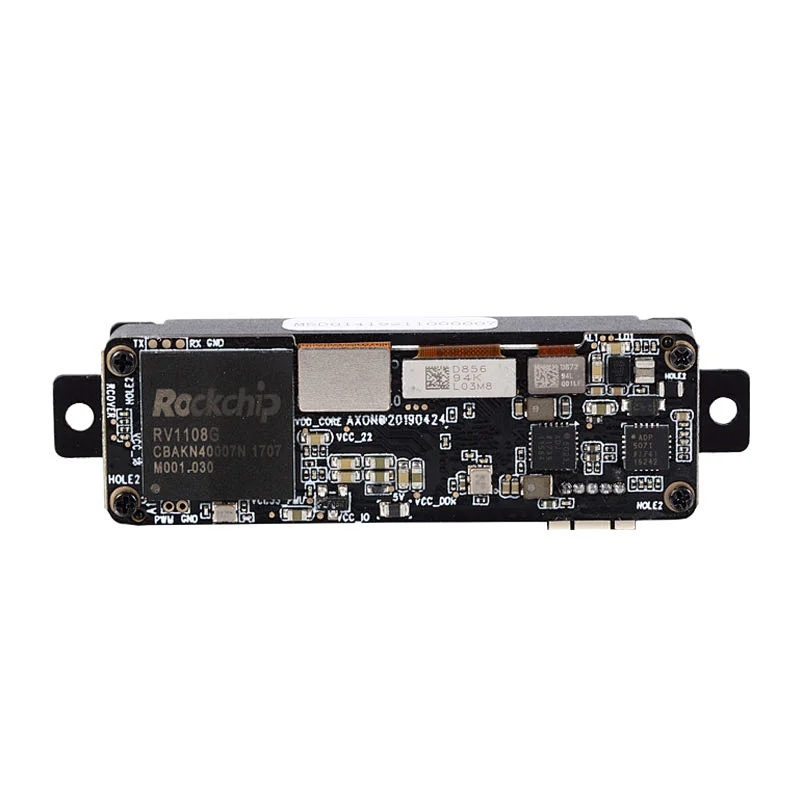

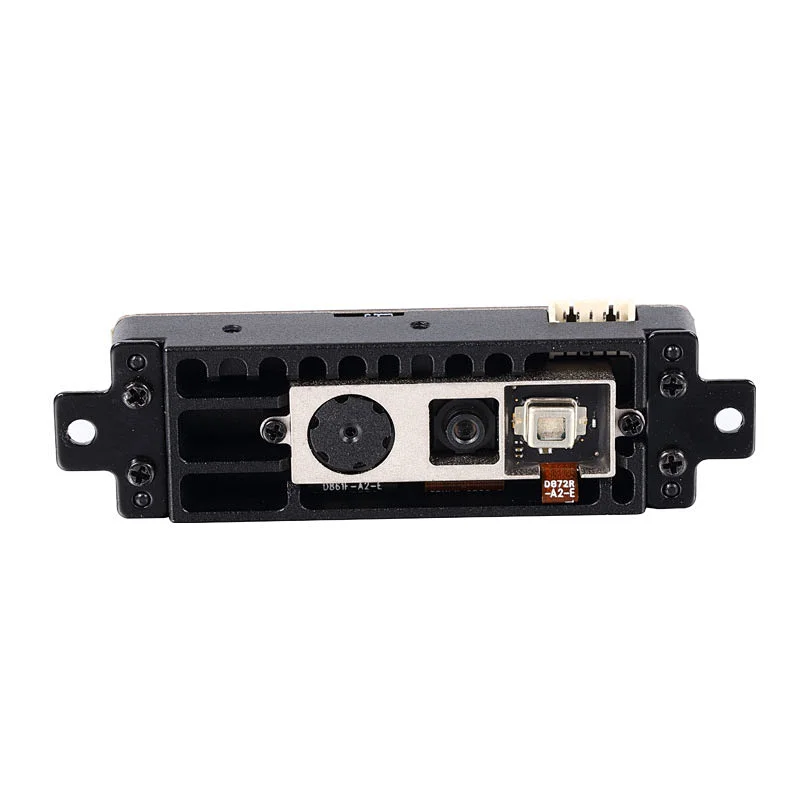

The Main Components Of The Product Hardware
⚫A TOF camera module;
⚫A VCSEL laser;
⚫One RGB camera module
⚫A dedicated ASIC processing chip;
⚫A control motherboard (including CPU, FLASH, etc.);Camera module.

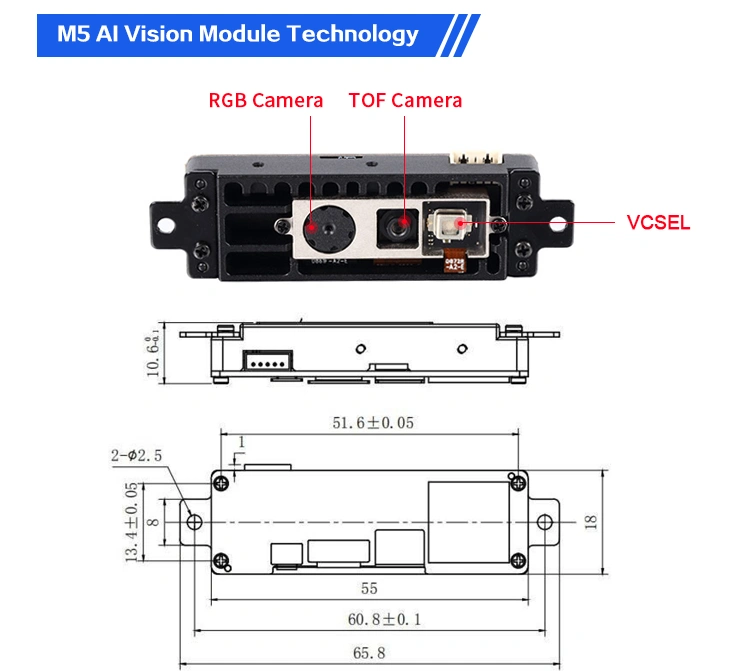

Product Structure Size(Unit:mm)

Applications:

RAKINDA M5 product can be widely used in various types of deep vision detection scenarios, mainly including:

Industry

Application

Somatosensory entertainment

Somatosensory games, bone extraction, 3D fitting, gesture recognition, etc.

Face Recognition

Face payment, face access control, witness integrated machine, etc.

Robot

Avoidance

Product Parameters:

Parameter

Specifications

Model

RAKINDAM5

TOF

Resolution (horizontal x vertical)

640×480

Field of view (horizontal and vertical)

60°× 45°

Frame Rate (fps)

Maximum 30

RGB

Resolution (horizontal x vertical)

Support1080P/960P/720P/VGA

Field of view (horizontal and vertical)

74°× 56° @960P(Default)

63°× 37° @1080P

74°× 42°@720P

74°× 56°@VGA

Frame Rate (fps)

Maximum 30

VideoCoding

JPEG、RGB

Detection range(unit:m)注 1

0.3 - 1.2

Measurementaccuracy注 2

0.1%

Measurement accuracy注 3

1%

Light source

940nm VCSEL

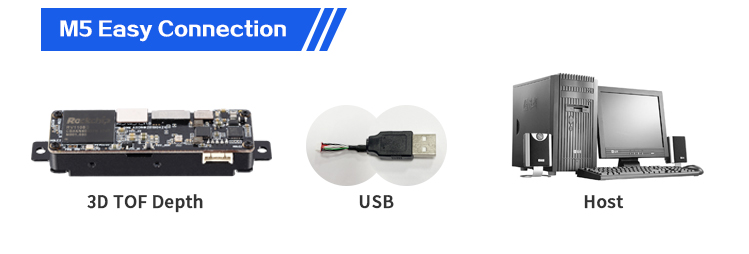

Data transmission interface

Micro USB

Power supply

5V

Typical power consumption(W)

3.4

Operating temperature(℃)

0-45

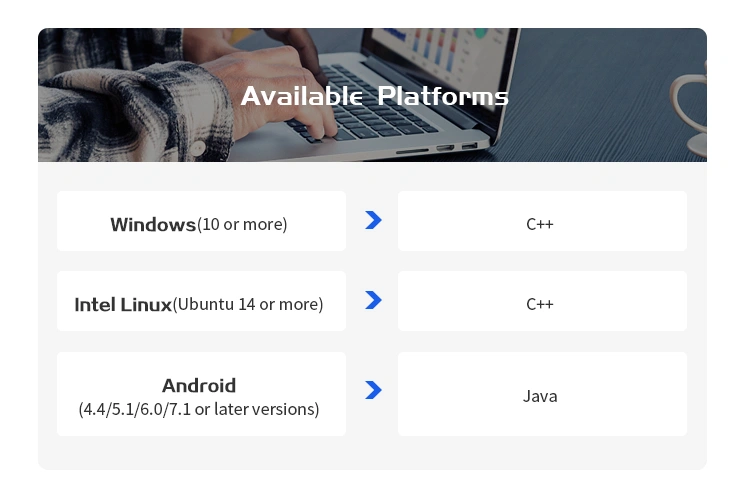

Operating system

Windows7and above、Linux、Android

Structure size (length × height × depth, single

Bit: mm)

55×18×10.6(Module without mounting steel)

65.8×18×10.6( Module without mounting steel)
