Model NO.:
RD34
Delivery:

The Face Recognition Infrared and RGB camera is used for face recognition and image capture. Throught binocular camera ( visible light and IR) it can realize bio-assay.

Features of  Liveness Detection Face Camera

*HD 1080P
*Infrared Night Vision
*Binocular Camera: IR +RGB camera
*Plug and play with USB interface. Do not need driver.
*Small size 72*18*20mm, easy to integrate


Parameters of USB Face Recognition Camera

USB Camera Parameter

Sensor CHIP

RGB CAMERA WDR

IR CAMERA B/W

REMARKS

Image Sensor Image sensor

HDR CMOS

HD CMOS

Effective Pixels

1920*1080

1280*960

Pixel size

3.0umX3.0um

3.0umX3.0um

Image sensor Data output

Parallel 12bits Raw data

Parallel 12bits Raw data

Maximum Frame Rates

1280x960 at 30fps /1280x720 at 30fps/960x540 at

30fps/1024x768 at 30fps/1800x600 at 30fps /640x480 at 30fps

SNR max

>45Db

>44Db

Dynamic range

>110Db

>82Db

Video output

MJPG/YUV2

MJPG/YUV2

Digital interface

5-pin 1.25mm USB2.0

5-pin 1.25mm USB2.0

Lens filter wavelength

650nm (default)

940nm (default)

Default infrared optional 850nm

Power requirements

5V±5%

5V±5%

Power Consumption

Max 1.25 0.6w

Max 1.25 0.6w

Without infrared light

Operating temperature (°C) ZE

-10-70°C

-10-70°C

Wide temperature range

Storage temperature(°C)

-40℃

-80°C

Lens Mount

M12X0.5MM / No distortion 91.

Optional

Warranty

1.5 years

OS support system

Windows Xp / Vista / Windows 7,8.1/ Mac / Windows 10 / Android /Mac / Linux 2.6.2

Multi-system compatible

General Purpose Auxiliary interface definition

1

3.3V

output(200mA max)

2

GND

DGND

3

GPIO 0

INPUT

USB CONN Interface definition

1

5V

USB POWER

500mA max

2

DM

-

D-

3

DP

-

D+

4

GND

-

DGND

5

COVER

-

shield

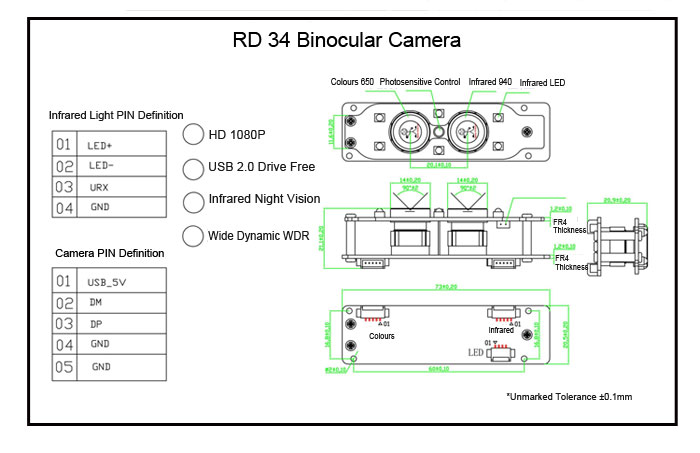

Detailed Installation:

Package Ways:

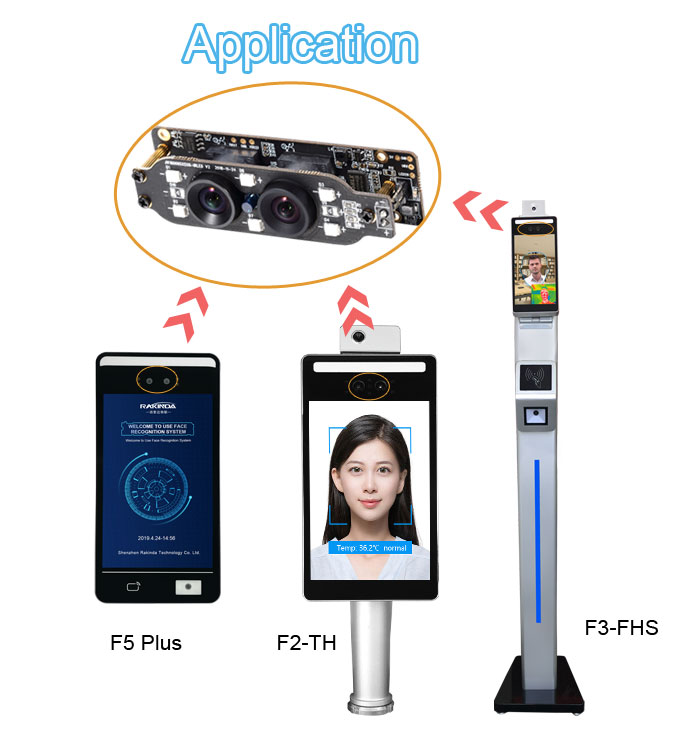

We Integrated This Module on Our Face Recognition Terminals:
