Face Recognition All-in-One Terminal

    Quantity:
    Contact Now
    F7
    The RAKINDA Face Recognition All-in-One Terminal is a cutting-edge biometric solution designed for contactless access control, industrial security, and public health management. Combining dual RGB+IR cameras (2MP resolution), high-precision temperature measurement (±0.5℃ accuracy), and Android 11 OS, this rugged device delivers seamless authentication for smart buildings, healthcare facilities, and outdoor environments. With IP65 protection and a quad-core Cortex-A55 processor, it’s a Google-ranking choice for IoT-ready security systems and multi-functional biometric terminals.

    Features & Benefits:
    - Dual-Mode Face Recognition: Achieve 99.9% accuracy with RGB+IR cameras (65° vertical/40° horizontal FOV), ideal for low-light or outdoor scenarios like construction sites and hospital entrances.
    - Contactless Temperature Screening: Optional non-contact thermal module (0.1℃ precision, 50cm range) ensures COVID-safe access control in airports, schools, and office buildings.
    - Robust Connectivity: Supports WiFi, 4G (optional), RS485, and Wiegand protocols for integration with smart door locks, attendance systems, and IoT security platforms.
    - Multi-Functional Authentication: Compatible with QR codes, ID cards, and RFID刷卡 (optional), perfect for mixed-mode access in gated communities and corporate hubs.
    - Industrial-Grade Durability: Aluminum alloy enclosure and -20°C to +60°C operating range suit harsh outdoor installations like parking lots and warehouse gates.
    - User-Friendly Interface: 6.95-inch IPS touchscreen (6001024) enables intuitive operation for visitor management and employee check-ins.

    Parameters

    Face Recognition Machine

    Product Features

    Major Function

    Face recognition, access control

    Service Environment

    Indoor and outdoor

    Enclosure

    Aluminum alloy material, color

    Camera

    Type

    RGB

    IR

    Resolution Ratio

    Two million pixels

    Two million pixels

    Iris Diaphragm

    F2.0±5%

    F2.0±5%

    Focal Distance

    4.3mm±5%

    4.3mm±5%

    Software Wide Dynamic

    voluntarily

    not have

    Vertical Wide Angle

    65°

    65°

    Horizontal Wide Angle

    40°

    40°

    Infrared Light Supplement

    support

    White Fill Light

    support

    Core Parameters

    System

    Android 11.0

    CPU

    Quad-core 64-bit Cortex-A55 with the highest main frequency of 2.0GHz

    SC

    Memory of 2G, the storage of 16G

    Human-Computer Interaction

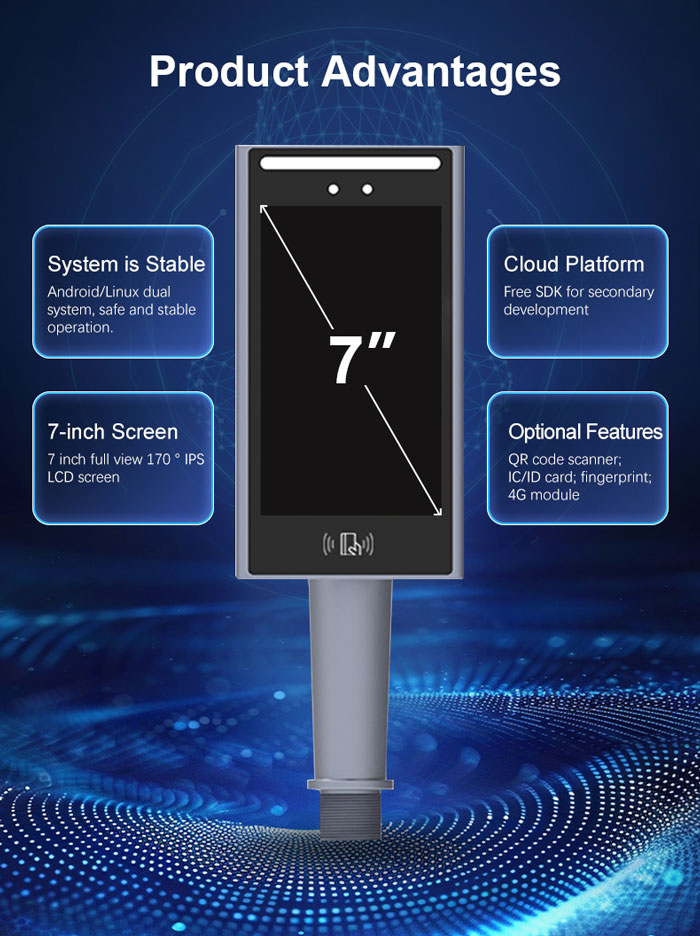

    Display Screen

    6.95-inch, full view, 170 ° IPS LCD screen, 600 * 1024 resolution

    Touch Screen

    Support

    Human Sensing Module

    [Optional selection] Support

    Human Body Temperature Measurement Module【Optional】

    Test accuracy: 0.1℃

    test error:≤±0.5℃

    Temperature measurement distance: the recommended use distance is 50cm

    Operating temperature: 15℃ ~40℃

    Communication Mode

    Ethernet

    10 / 100Mbps for Ethernet

    WIFI

    Compliance to IEEE802.11b/g/n (2.4G)

    4G

    [Optional selection] Support

    RM

    Human Face

    support

    Swing Card

    [Optional selection] Support

    Brush Id Card

    [Optional selection] Support

    Two-Dimension Code

    [Optional selection] Support

    Joggle

    Data Interface

    USB 2.0*1

    Electric Relay

    Relay * 1

    Gorge Line

    RS485 *1

    Weigen

    26bit / 34bit protocol

    Source

    Adapter

    DC12V / 2A power supply

    Environmental Requirements

    Working Temperature

    -20℃～60℃

    Working Humidity

    20% to 90% (in the non condensing water droplet regime)

    Static Electricity ESD

    IEC61000-4-2,LEVEL3

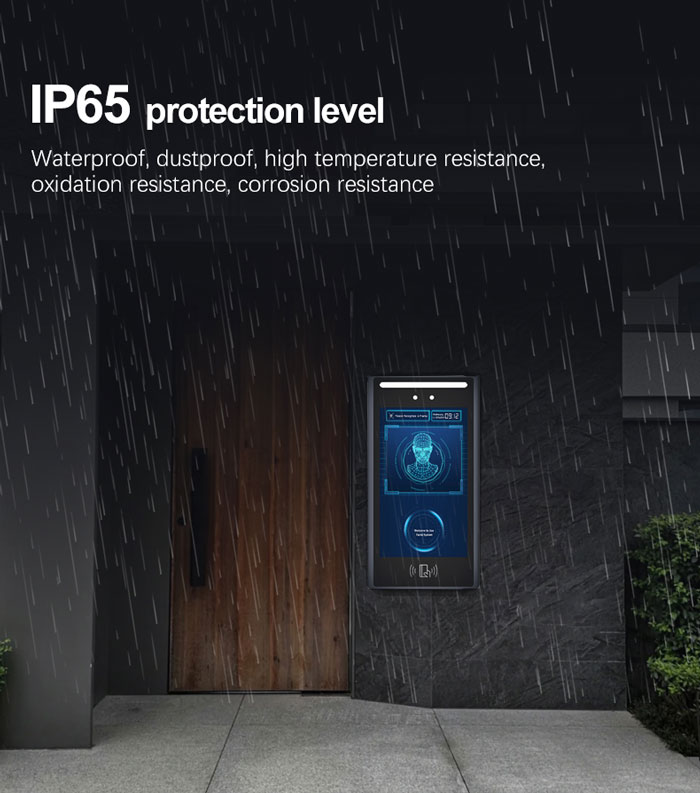

    Levels Of Protection

     IP65 (This item is not supported in the temperature measurement version)

    Way To Install

    Four Ways

    Wall-mounted plate, brake plate, landing version, desktop version
