Model NO.
F5-BG
Quantity:

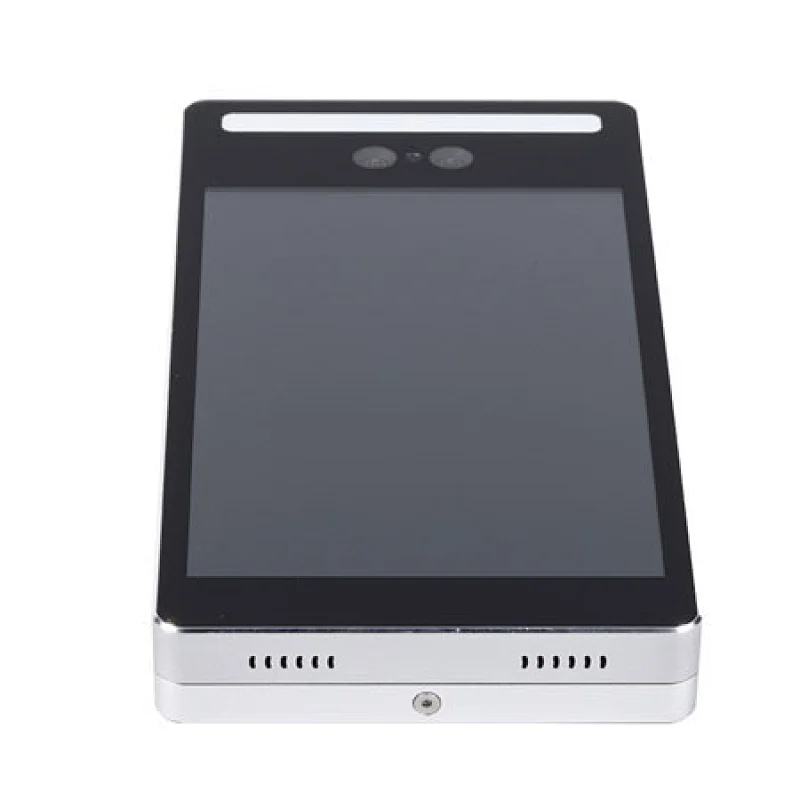

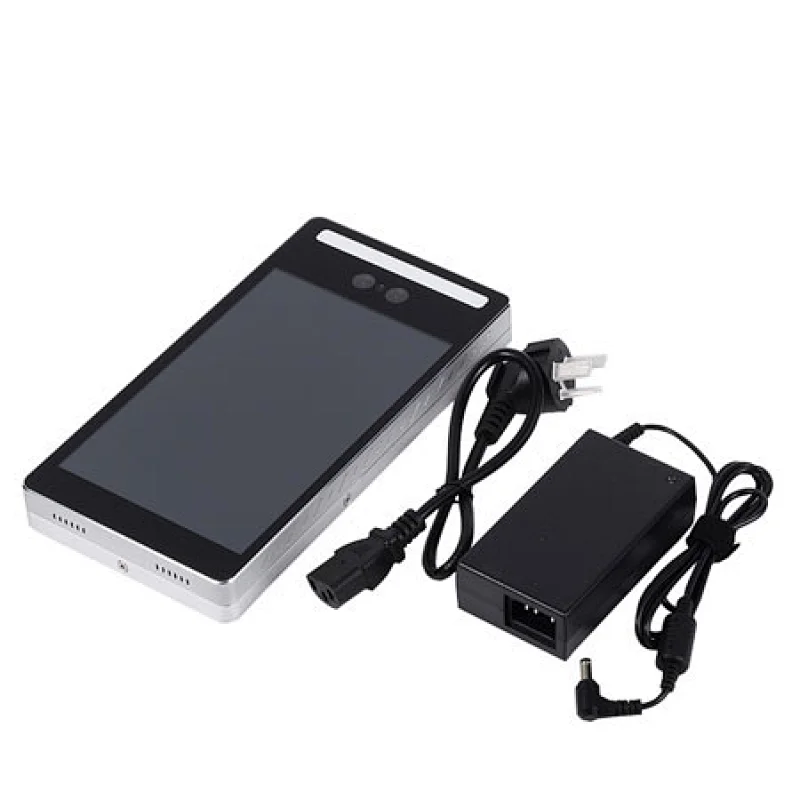

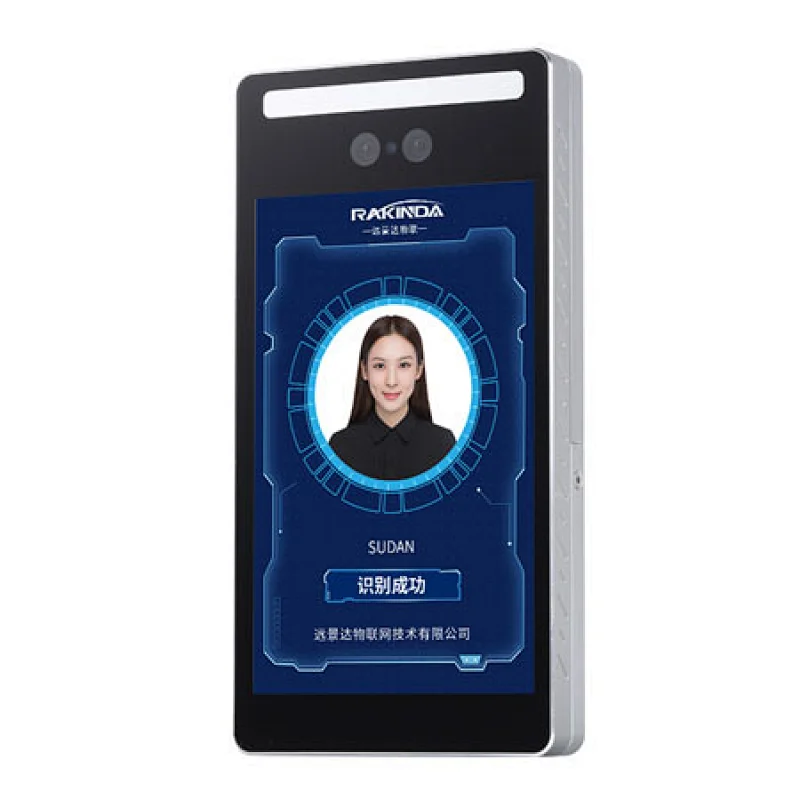

Rakinda F5 is an android biometric face recognition terminal with an infrared sensor and face recognition camera. It equipped with 8-inch touch screen, 1280*800 and HDR front camera.

In addition, Our F5 provides face recognition SDK for secondary development, comes with baidu algorithm. And we also have the self-developed independent face recognition management platform.

Product Parameters:

ScreenSize8", full viewing angle, 170° IPS LCD
Resolution800*1280
CameraTypeRGBTOF
Resolution (horizontal × vertical)Support 1080P/960P/720P/VGA640× 480 Pixel
Field of view (horizontal × vertical)74° × 56° @960P (Default)80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS)Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080PMAX 30FPS
Detection distance (unit: meter)0.35-1.2
light source850nm VCSEL
Working temperature (degree Celsius °C)0℃-50℃
Core parameterCPU6 cores, clocked at 2.0GHz
RAM2G
ROM16G
OSAndroid 7.1.2
PartsFill lightInfrared, LED fill light
Network moduleSupport wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module4.0
4G communication moduleOptional (built-in or external)
ID card readerOptional (built-in or external)
GPSOptional (built-in or external)
PortUSBUSB2.0 1
RD232RS232 serial port, 2.5mm terminal block 2P
Relay output2.5mm terminal block 3P
Wiegand interface2.5mm terminal block 3P, support Wiegand 26
Wired network interfaceRJ45 Gigabit network
General parametersIP ProtectionIP54
PowerDC12V (±10%) /3A
Operating temperature-20℃ ~70℃
Working humidity10%~90 %
Power consumption22W MAX
Installation methodWall bracket installation, gate bracket installation
Equipment size239.2mm*123.2mm*26.4mm
Weight≈1050g

Product Features:

- QR Reading & Card Reading & Face Recognition All in One

- Infrared Binocular Camera to Support Live Detection

- Binocular Camera with RS232,USB 2.0,Relay Output

- Independent Software Management Platform by Supporting Multiple Languages

- Multi-system with Mass Storage Space & 99.9% Recognition Accuracy

- Support Online & Offline Version for Customer Flexible Choice

- Optional Designs for Choice--Wall Mounted & Turnstile Fixed Model

- 3D TOF Super Scanning with Highest Security & Integrating Baidu Algorithm

Fast recognition:

- Face tracking and detection takes about 20ms.

- Face feature extraction takes about 200ms.

- In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).

Application Scenario:

F5 device could use for attendance and visitor system , applied in: Office building,Hospital,School library,Student dormitory,Classroom Hotel, Gym, Factories, Conference room, Institute of Science, etc. where face access is required.

Three versions of this face recognition device

F3F5F6
Customized Model (Can be designed thinner)
Android 7.0Android 7.0Android 9.0
DDR3DDR3DDR4
CPU: 6 coresCPU: 6 coresCPU: 8 cores
RAM: 2GBRAM: 2GBRAM: 3GB
ROM: 8GBROM: 8GBROM: 16GB
3D TOF TechnologyInfrared Binocular3D TOF Technology + APU +4G
Standard DeviceStandard DeviceCustomized
