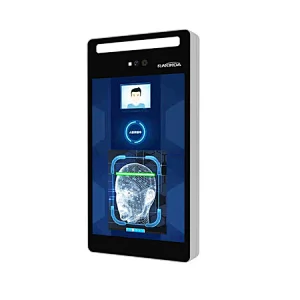

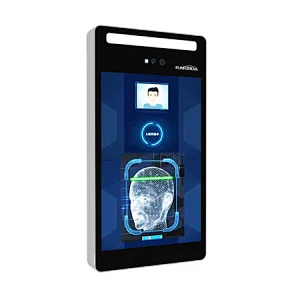

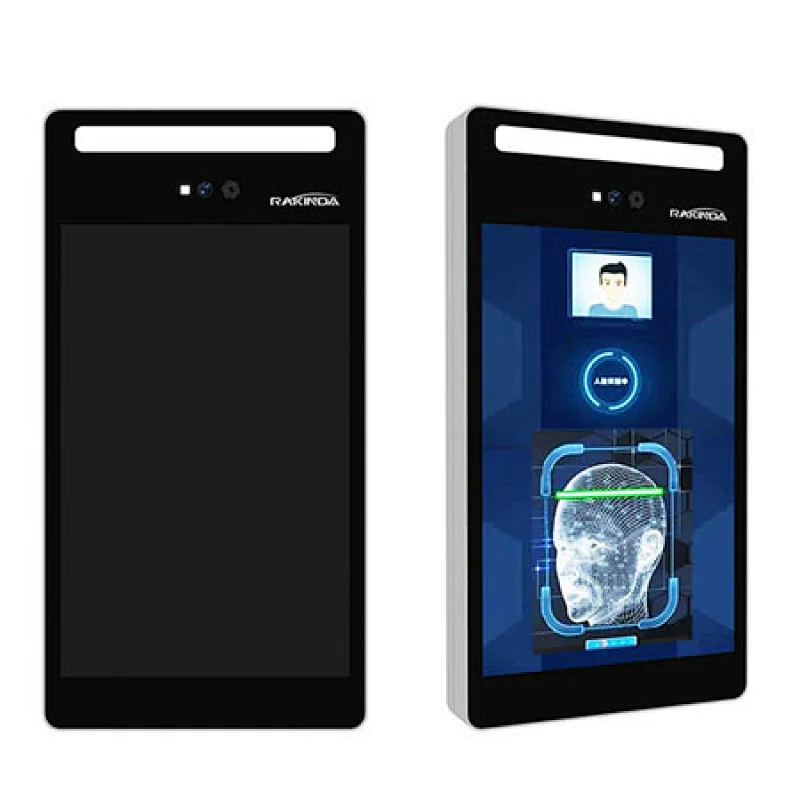

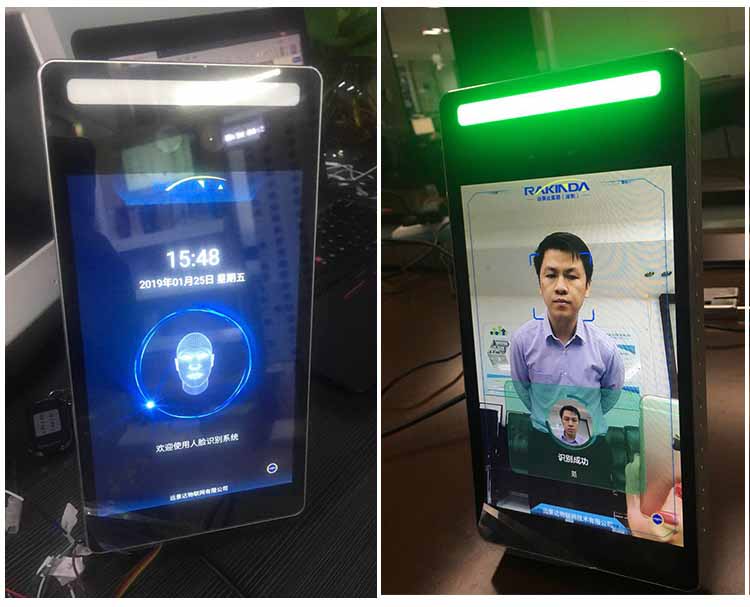

3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal
3D Version Face Recognition Terminal

3D Version Face Recognition Terminal

Model NO.
F3
Quantity:

Product Features:

- Dynamic detection to solve the deception of various photos on various carriers.

- Nighttime infrared, RGB fill light.

- Support external QR code scanner and ID card reader.

- Support RS232 serial port, Wiegand 26 output, output content support configuration.

- Adopt dynamic video face detection and tracking recognition algorithm based on video stream.

- Support the device to store 10,000 database locally.

- Fast recognition

(a) Face tracking and detection takes about 20ms.

(b) Face feature extraction takes about 200ms.

(c) In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).

- Support public network and LAN deployment mode.

- Support HTTP interface interface docking.

- Support screen display content configuration.

Product Parameters

ScreenSize8", full viewing angle, 170° IPS LCD
Resolution800*1280

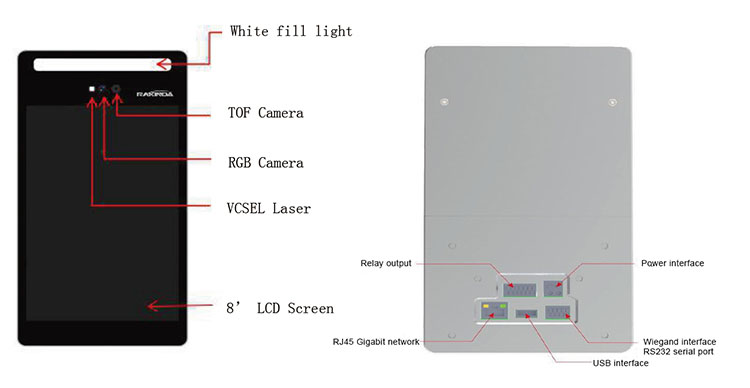

CameraTypeRGBTOF
Resolution (horizontal × vertical)Support 1080P/960P/720P/VGA640× 480 Pixel
Field of view (horizontal × vertical)74° × 56° @960P (Default)80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS)Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080PMAX 30FPS
Detection distance (unit: meter)0.35-1.2
light source850nm VCSEL
Working temperature (degree Celsius °C)0℃-50℃
Core parameterCPU6 cores, clocked at 2.0GHz
RAM2G
ROM16G
OSAndroid 7.1.2
PartsFill lightInfrared, LED fill light
Network moduleSupport wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module4.0
4G communication moduleOptional (built-in or external)
ID card readerOptional (built-in or external)
GPSOptional (built-in or external)

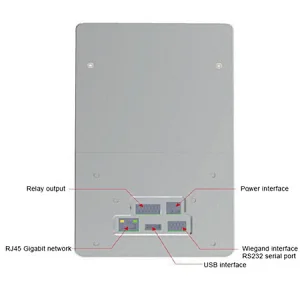

PortUSBUSB2.0 1
RD232RS232 serial port, 2.5mm terminal block 2P
Relay output2.5mm terminal block 3P
Wiegand interface2.5mm terminal block 3P, support Wiegand 26
Wired network interfaceRJ45 Gigabit network
General parametersIP ProtectionIP54
PowerDC12V (±10%) /3A
Operating temperature-20℃ ~70℃
Working humidity10%~90 %
Power consumption22W MAX

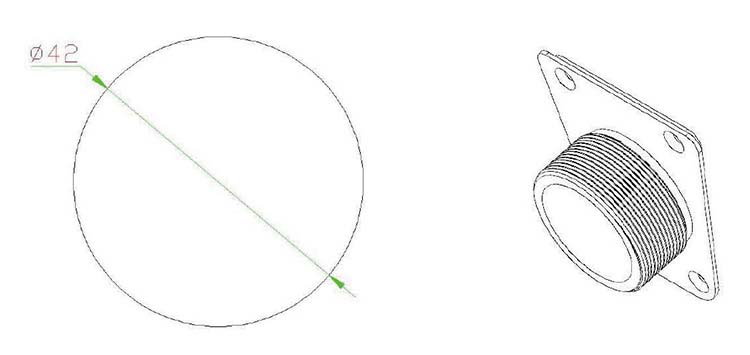

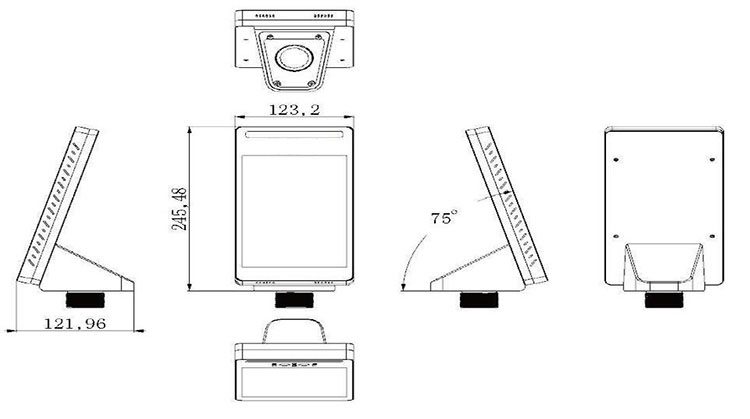

Installation methodWall bracket installation, gate bracket installation

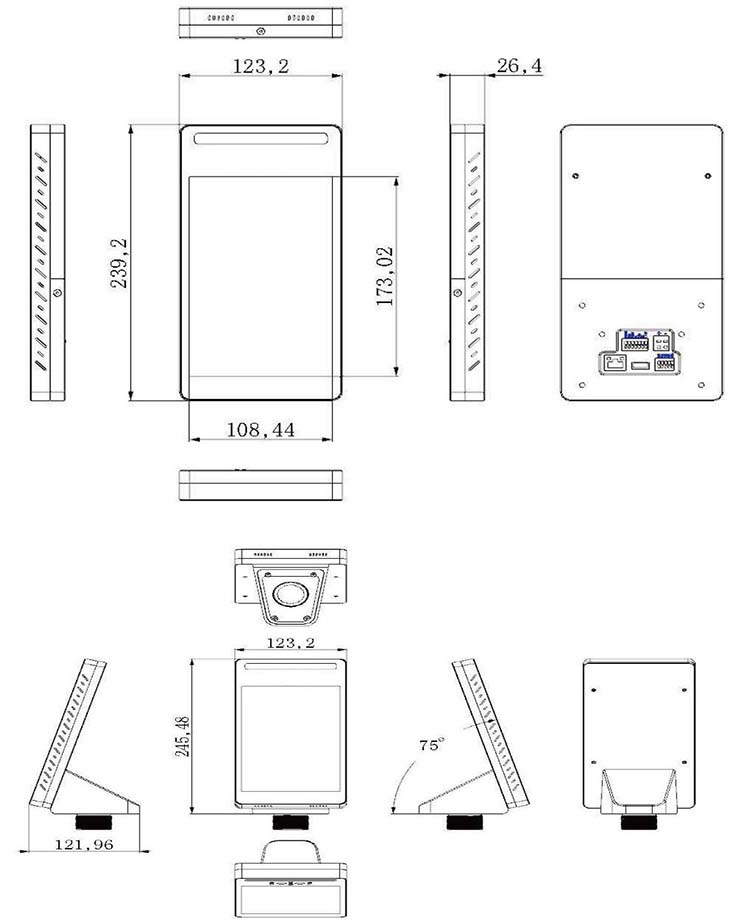

Equipment size239.2mm*123.2mm*26.4mm
Weight≈1050g
