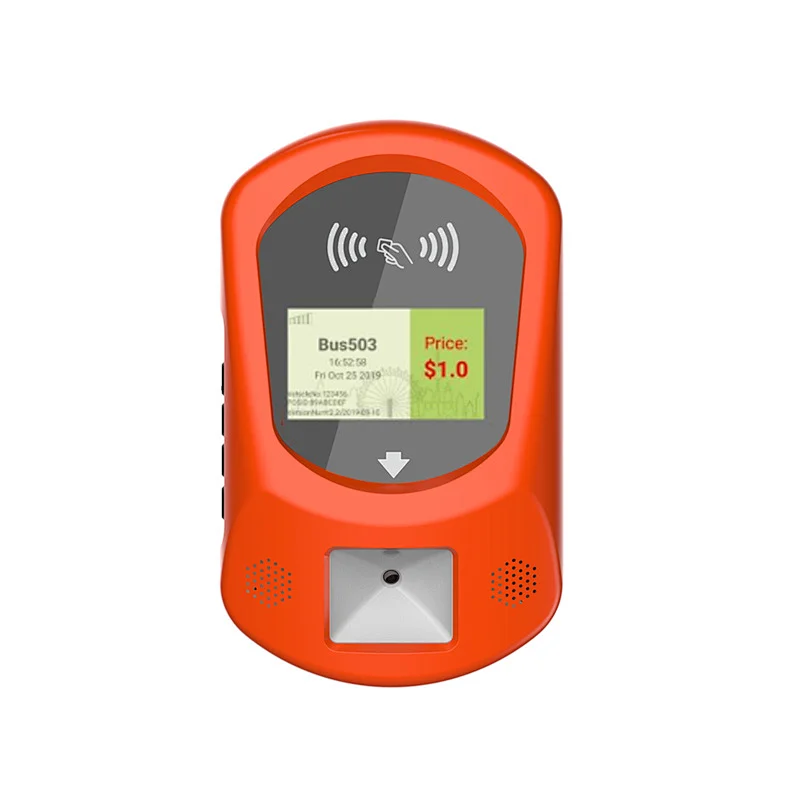

RS232 RS485 USB GPS Android 8.1 QR IC Smart Bus Ticket POS Machine Bus Terminal
Features of Bus Payment POS
1.Swipe card (Support ISO14443 TYPE A or TYPE A-compatible contact-less)
2.bar code scan (1D 2D QR PDF417 Data matrix)
3.LCD display function key*4
4.PSAM slot*4、SIM*1；
5.CAN、RS232、RS485、USB external interface；
6.Recognition time：<1000ms，generally 300ms-500ms；
7.Operation Distance：3-10cm
Parameters of Android Bus Validator Reader
HWDescription | Item |
Processor | MT6763 |
Antenna | Antenna+Diversity +3 in 1 |
Speaker | Speaker 2W |
SIM | SIM slot*1 |
System | |
SystemVersion | Android8.1 |
Memory | |
RAM | 2G |
Flash | 16G |
LCD | |
Main LCD | 4 inch WVGA |
Multimedia | |
GPS | GPS、BeiDou、Glonass |
WirelessTransmission | |
Mobile Network | 4G |
WIFI | DualFrequency |
Bluetooth | 4.0 |
PowerSupply | |
Voltage | 5V~60V DC |
ME Description | Item |
Type | In-vehicle |
SurfaceMaterial | PC |
Key | |
Switch | PowerButton |
Side Key | 4 |
Socket &Connector | |
External Interface | CAN、485、USB |
PSAM | PSAM 4 |
I/O | USB Type A |
T-Flash Socket | 1 SIM & 1 T |
Bar-code | |
Module | NLS-EM20-EX by NEWLAND |
Type | QR-code，Payment |
RFID | |
Pattern | 13.56M ISO14443A |
Antenna | FPC |
PSAM | |
Pattern | ISO7816 |
